105-CA80A675N

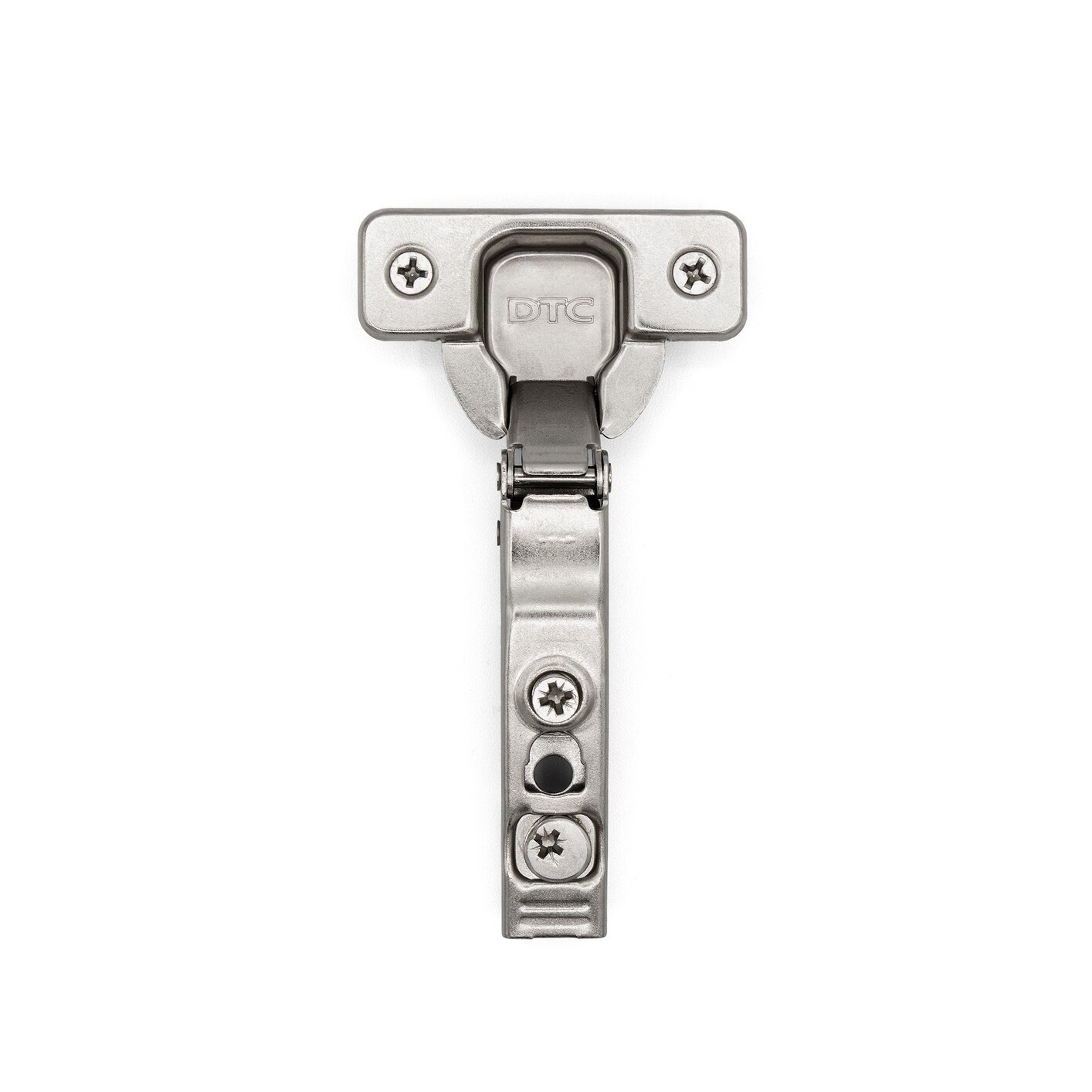

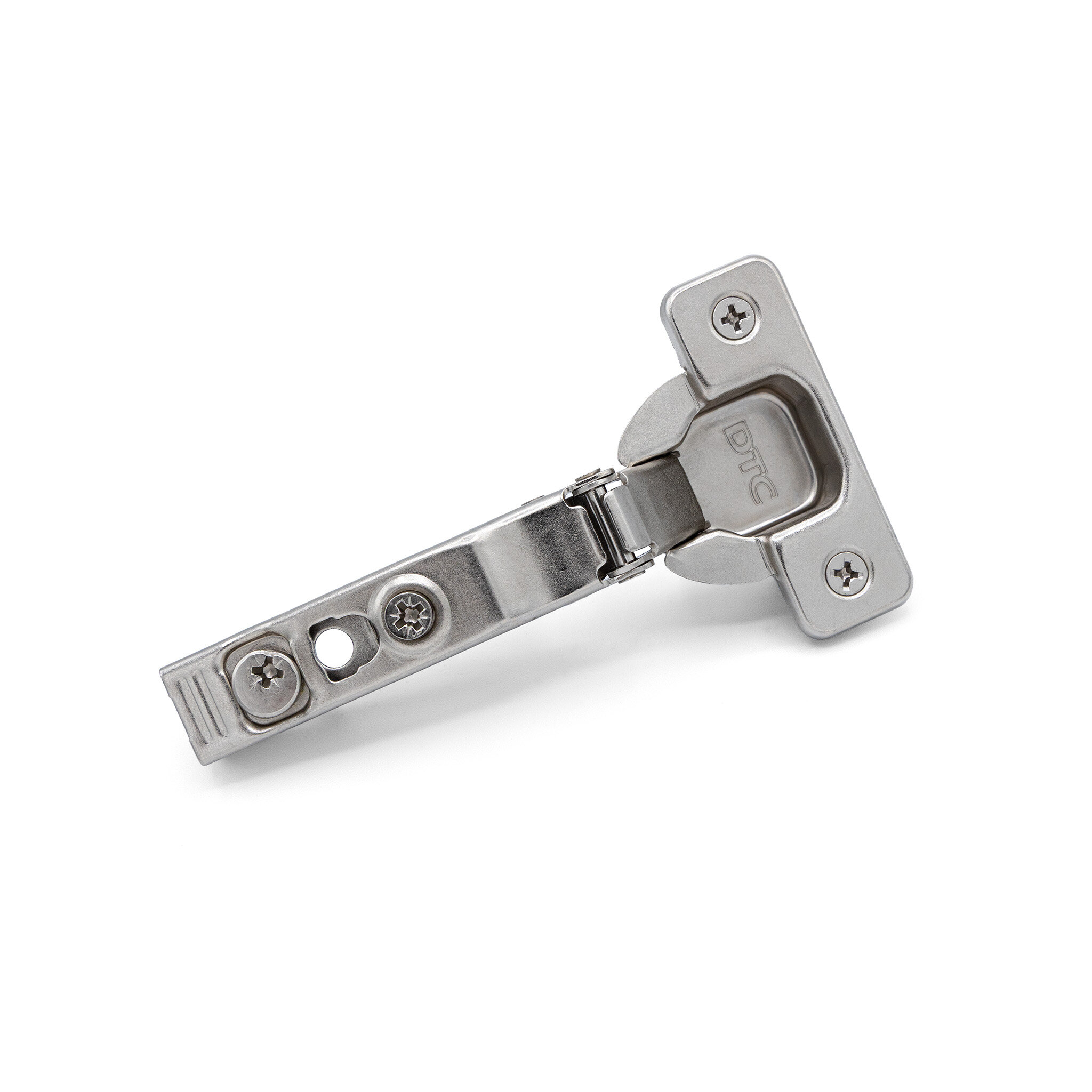

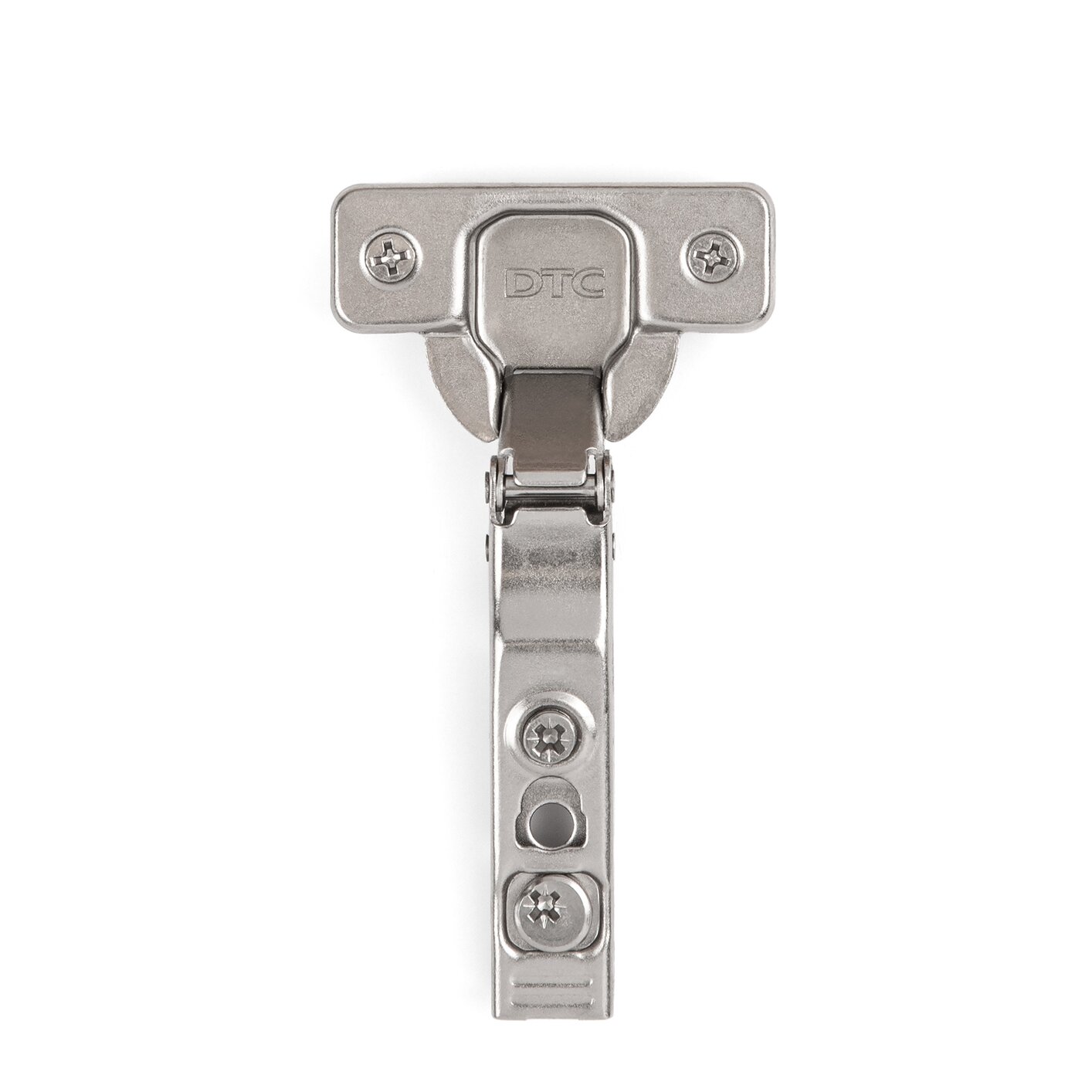

DTC C-80 Un-Sprung Hinge

PART #: 105-CA80A675N
DTC

Unsprung hinges for free-swinging applications with 8mm Dowel mounting and Full Overlay

Product Description

For use with DTC pushes latches for push-to-open applications.

Unsprung hinges are ideally used when soft-close or self-close actions are not necessary.

Product Advantages

  • Use with soft-close mounting plates
  • Free Swinging motion

Important Information

Replaces part number 105-AD96A6A5N

Product Diagrams

Product Specifications
Adjustment Type 2-Way Cam Adjustment
Angle 110
Application Type Full Overlay
Closing Type Unsprung
Cup Type 45mm Standard Pattern
Door Type Standard Door
Finish Nickel
Hinge Cup Depth 11.5 mm
Hinge Cup diameter 35 mm
Hinge Door Drilling Distance 3-6 mm
Hinge Door Thickness 16-26 mm
Hinge Type Clip-On
Material Steel
Mounting Type Dowel (8mm)
Plate Type Compatible with DTC C-80 Soft-Close Plates only
