Product Details
DTC's latest generation Concealed Undermount Slides featuring Push-Open, Full Extension and a 4-way Adjustment Locking Clip
Brand
DTC
DTC
-
Product Description

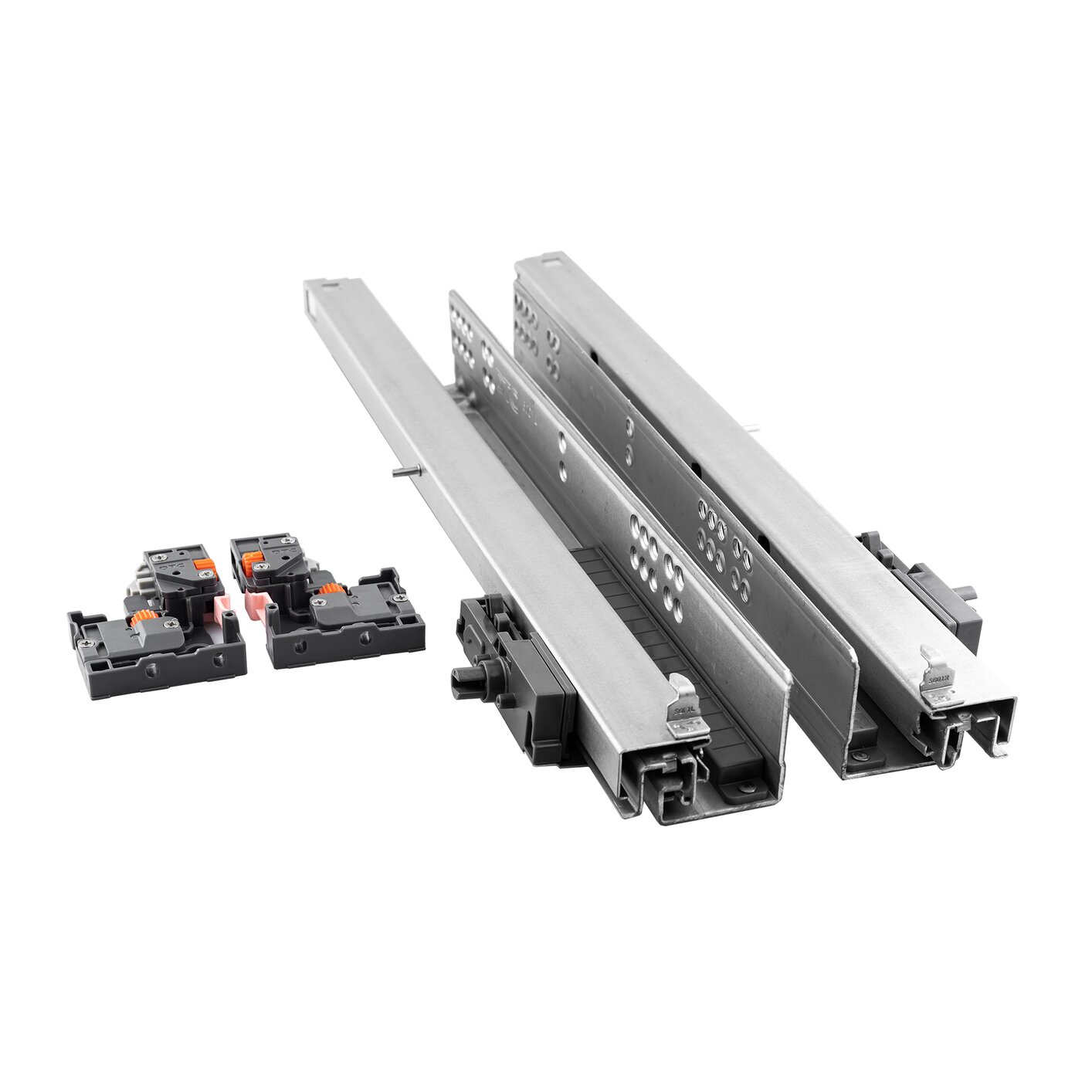

The DTC DF10 Undermount Slide moves a 40kg (88 lbs) dynamic load smoothly and quietly while including integrated push-open technology. Included with a pair of slides is a 4-way adjustment front locking clip. These clips feature height adjustment of 0-3mm and lateral side adjustment of ±1.5mm. Your installers will appreciate the ease with which they can make your drawer fronts align. For inset drawers, we recommend switching to the optional 6-way adjustment clip, with the additional depth adjustment, enabling final drawer front alignment.
-
Product Advantages
- Load Capacity of 40kg (88 lbs)

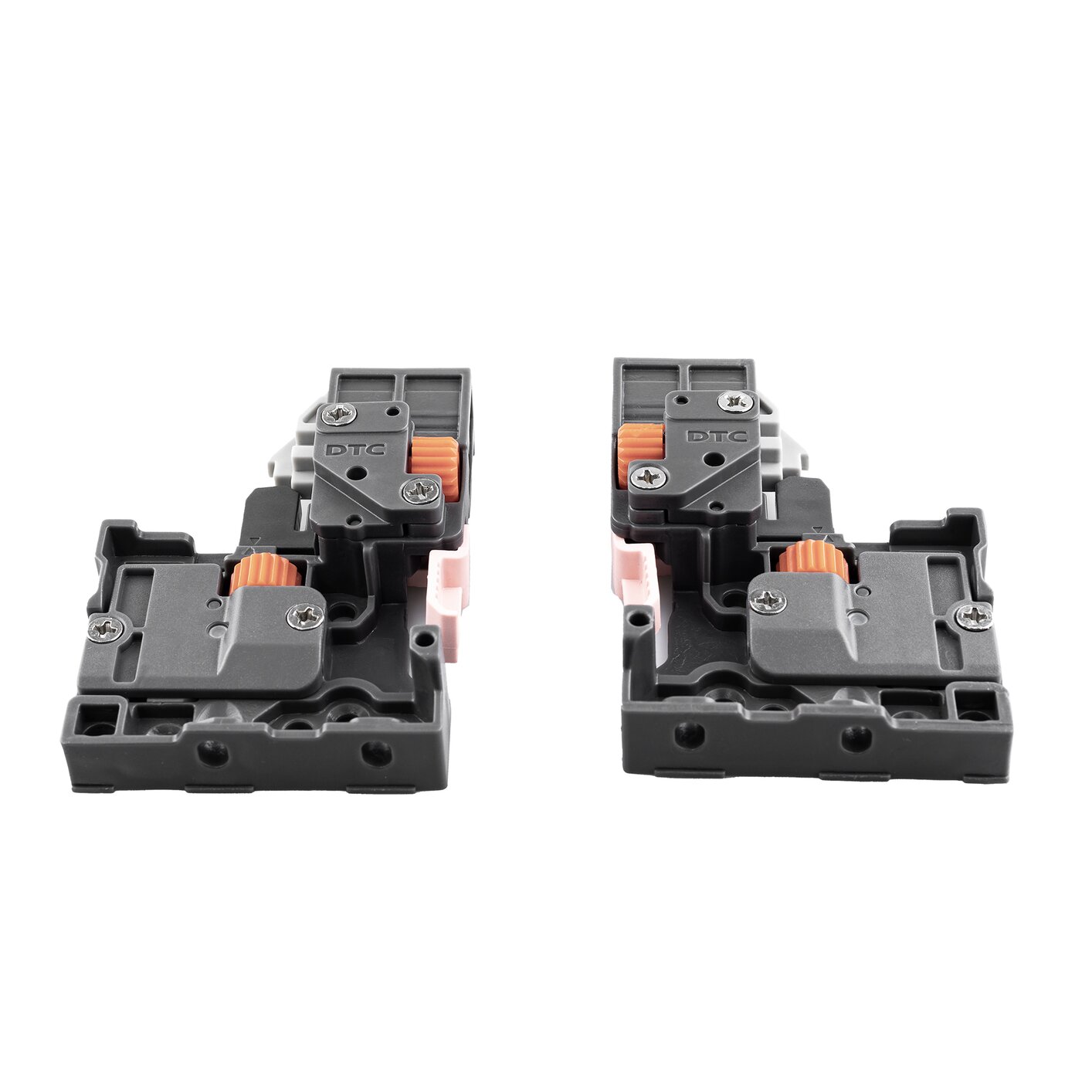

- 4-Way Clip provides for Height and Lateral Side Adjustment
- Height Adjustment ranges from 0mm to 3mm
- Lateral Side Adjustment ranges from ±1.5mm
- 6-Way Clip (optional) enables Depth Adjustment from 0-3mm
- Tool free assembly and removal of drawer.
- Silent system guarantees smooth run without noise.
-
Included Products
All DTC slides include front locking clips.
-
Resources
DF10 Technical Specifications & Assembly Space Drilling Dimensions for DTC DS10 and DF10 Undermount Slides Drawer Installation Dimensions, Standard Drawer, Side View for DTC DS10 and DF10 Undermount Slides Drawer Installation Dimensions, Front View for DTC DS10 and DF10 Undermount Slides Drawer Installation Dimensions, Inset Drawer, Side View for DTC DS10 and DF10 Undermount Slides Drawer Back Preparation for DTC DS10 and DF10 Undermount Slides How to Install - 4-Way Locking Clip for DTC DS10 and DF10 Undermount Slides Dimensions for Installation - 4-Way Locking Clip for DTC DS10 and DF10 Undermount Slides How to Adjust - 4-Way Locking Clip for DTC DS10 and DF10 Undermount Slides
Specifications
Closing Type:
Push-Open
Load Capacity:
40kg (88lbs)
Mounting Type:
Screw-In
Slide Extension Type:
Full-Extension
Slide Type:
Undermount
Limited Lifetime Warranty
In the event that any product Marathon sells is found to be defective in either workmanship or materials, such products shall be replaced by Marathon, free of charge, for as long as the original consumer purchaser owns the products.
If a product is no longer available, Marathon will replace the defective hardware with a current offering.
-
Not covered by our warranty:
Incorrect installation or any consequential and/or incidental damages incurred as a result of incorrect installation.
Hardware that has been exposed to excessive loads, abused, or used in any manner other than its intended purpose.
Removal of defective hardware, delivery costs, or installation of new hardware.
