DTC DS10 Soft-Close Undermount Slides

By DTC

Measurement : Metric/Imperial

Length

Ordering information

DTC's latest generation Concealed Undermount Slides featuring Soft-Close, Full Extension and a 4-way Adjustment Locking Clip

Related Products

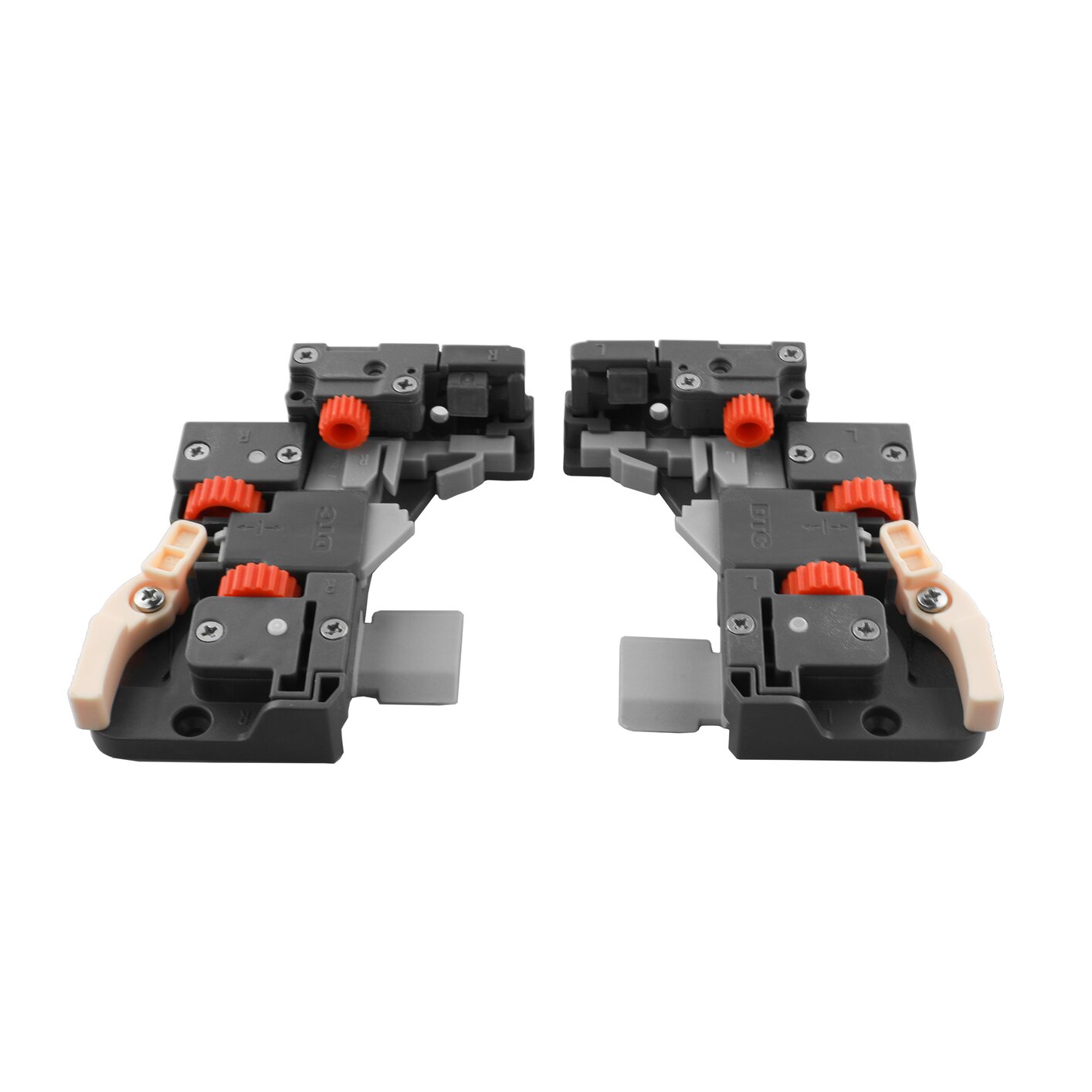

Locking Device 6 Way for 105-DS10 Slides

Part #: 105-ODSD6-DS10H

These locking clips with 6-way adjustment are ideal for inset drawers, as the additional depth-adjustment enables perfect alignment.

Back to the top

Product Details

DTC's latest generation Concealed Undermount Slides featuring Soft-Close, Full Extension and a 4-way Adjustment Locking Clip

Brand
DTC

Product Description

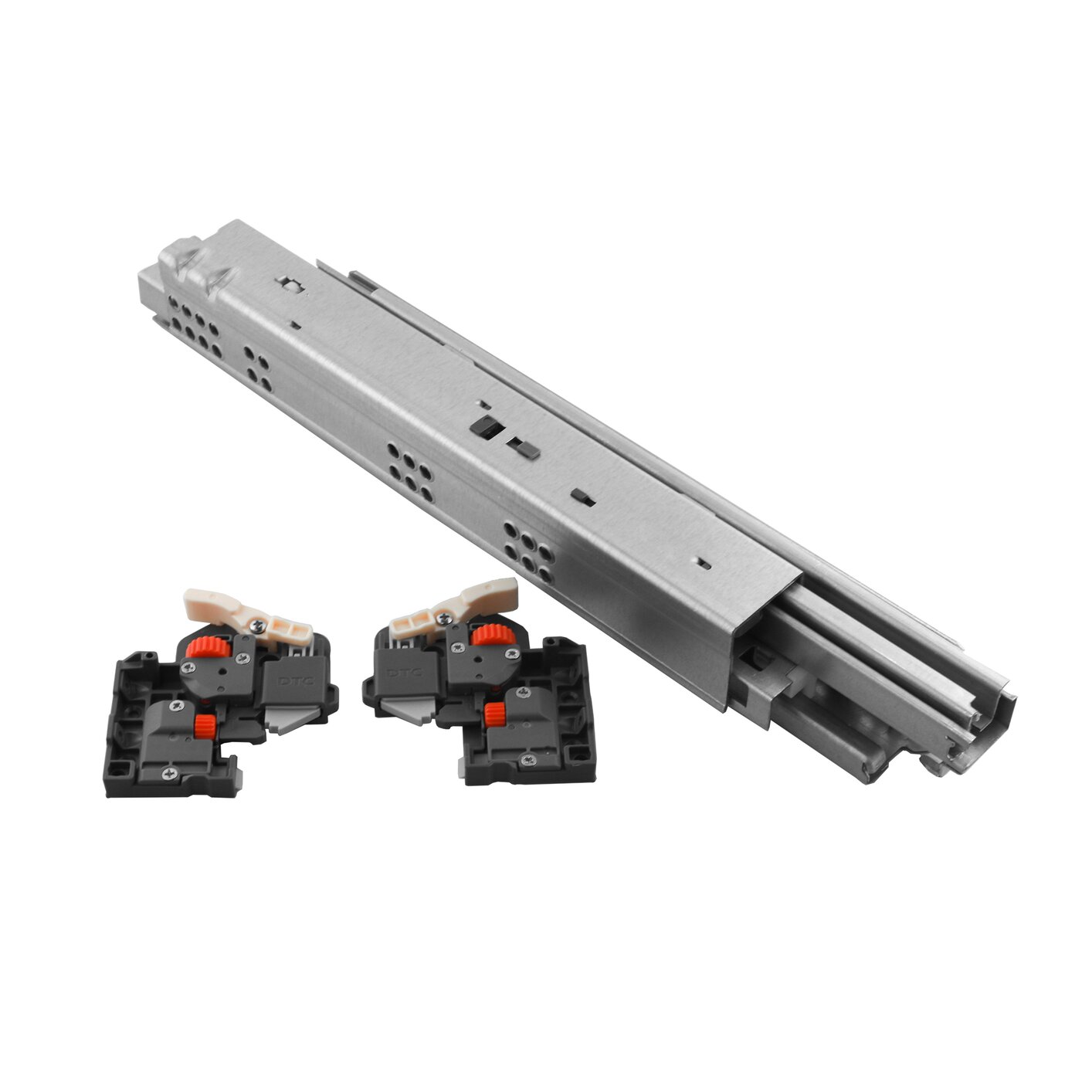

The DTC DS10 Undermount Slide moves a 40kg (88 lbs) dynamic load smoothly and quietly while guaranteeing excellent soft-close performance. Included with a pair of slides is a 4-way adjustment front locking clip. These clips feature height adjustment of 0-3mm and lateral side adjustment of ±1.5mm. Your installers will appreciate the ease with which they can make your drawer fronts align. For inset drawers, we recommend switching to the optional 6-way adjustment clip, with the additional depth adjustment, enabling final drawer front alignment.

DTC's DS10 Undermount Slide was tested in an independent labratory under ANSI/KCMA A161.1 - 2017 Section 7.1 Drawer Operation Tests to 40,000 cycles with a complete passing grade. The DS-10 slide was further tested by TUVRheinland (European standard) to 80,000 cycles, twice the US standard, receiving a complete passing grade.
Product Advantages
- Load Capacity of 40kg (88 lbs)
- 4-Way Clip provides for Height and Lateral Side Adjustment
- Height Adjustment ranges from 0mm to 3mm
- Lateral Side Adjustment ranges from ±1.5mm
- 6-Way Clip (optional) enables Depth Adjustment from 0-3mm
- Tool free assembly and removal of drawer.
- Silent system guarantees smooth run without noise.
Included Products
Resources
Product Information DS10 Technical Specifications & Assembly Space Drilling Dimensions for DTC DS10 and DF10 Undermount Slides Drawer Installation Dimensions, Standard Drawer, Side View for DTC DS10 and DF10 Undermount Slides Drawer Installation Dimensions, Front View for DTC DS10 and DF10 Undermount Slides Drawer Installation Dimensions, Inset Drawer, Side View for DTC DS10 and DF10 Undermount Slides Drawer Back Preparation for DTC DS10 and DF10 Undermount Slides How to Install - 4-Way Locking Clip for DTC DS10 and DF10 Undermount Slides Dimensions for Installation - 4-Way Locking Clip for DTC DS10 and DF10 Undermount Slides How to Adjust - 4-Way Locking Clip for DTC DS10 and DF10 Undermount Slides

Specifications

Closing Type:

Soft-Close

Load Capacity:

40kg (88lbs)

Mounting Type:

Screw-In

Slide Extension Type:

Full-Extension

Slide Type:

Undermount
