DTC Top Stays SE Soft-Close Lift System
A compact lift arm opening solution for upper cabinets that works in combination with hinges. Not sure which one to order? Try our easy-to-use Power Factor Calculator below.

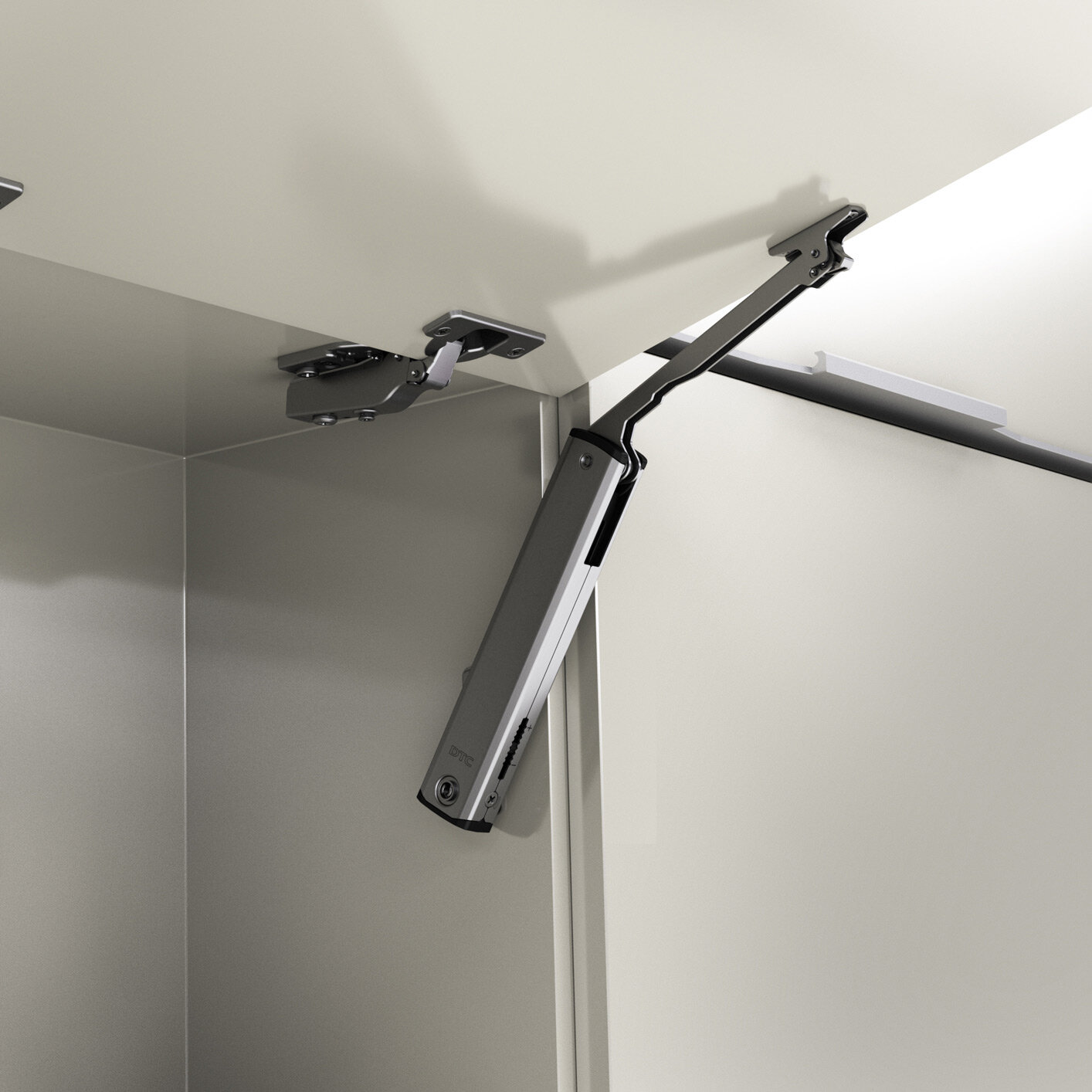

The Top Stays SE series lift arm is DTC's most economical and compact flap door lift solution. Working in combination with soft-close hinges, the SE series is a perfect choice for your upper cabinet doors in any project.
Easy open with a sophisticated spring arm design that allows the door to open effortlessly and stay open at any position, with built in adjustment to compensate for your door's size and weight.
- Opening Angle: 105°
- Easy to open with low force
- Stays open at any desired position
- Smooth soft-close
- Door Adjustments via hinges
- Tool-free assembly and removal
Hinges sold separately. We recommend using DTC Pivot Star C-81 adjustable soft-close hinges. For cabinets wider than 900mm or when the power factor is over 1800, we recommend 3 hinges. For cabinets wider than 1200mm or when the power factor is over 2700, we recommend 4 hinges.
Power Factor Formula
How to Order? Use our easy Power Factor Calculator:
Power Factor = Cabinet Height (in mm) x Door Weight (in kg) including 2x handle weight.
The supported power factor is doubled when a second lift mechanism is installed.
|Door Height Range
|240 to 600 mm
|Min. Cabinet Depth

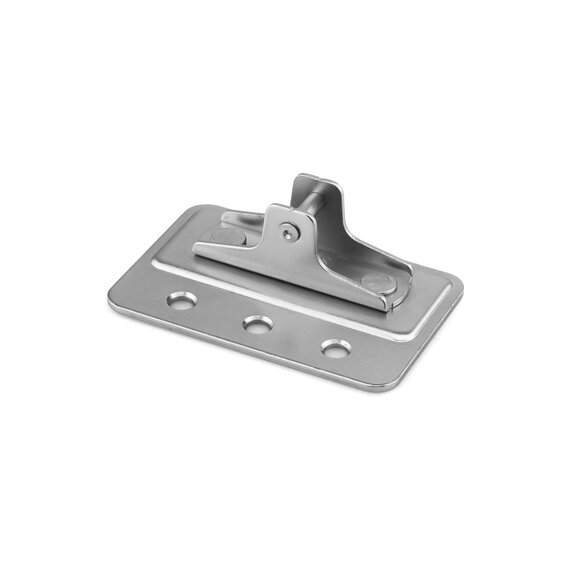

Part #: 105-SE00CQWith a wider base from the standard front bracket that is included in the kit, these brackets can be used for wooden, wide aluminum frame, and narrow frame doors.

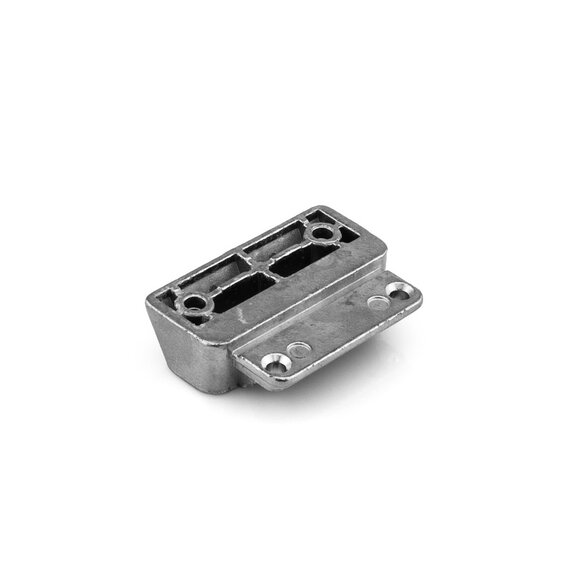

Part #: 105-SE00HSold as a set of two brackets, these brackets can be used to securely attach the lift arm to narrow aluminum frame doors.
