Kiaro Easy Opening System

By Italiana Ferramenta

Measurement : Metric/Imperial

Door Application

Colour

Ordering information

Kiaro Easy is an elegant, minimalist opening system for drop-down doors, featuring a strong, slim wire mechanism for smooth movement and compact installation.

Back to the top

Product Details

Kiaro Easy is an elegant, minimalist opening system for drop-down doors, featuring a strong, slim wire mechanism for smooth movement and compact installation.

Brand
Italiana Ferramenta

Product Description

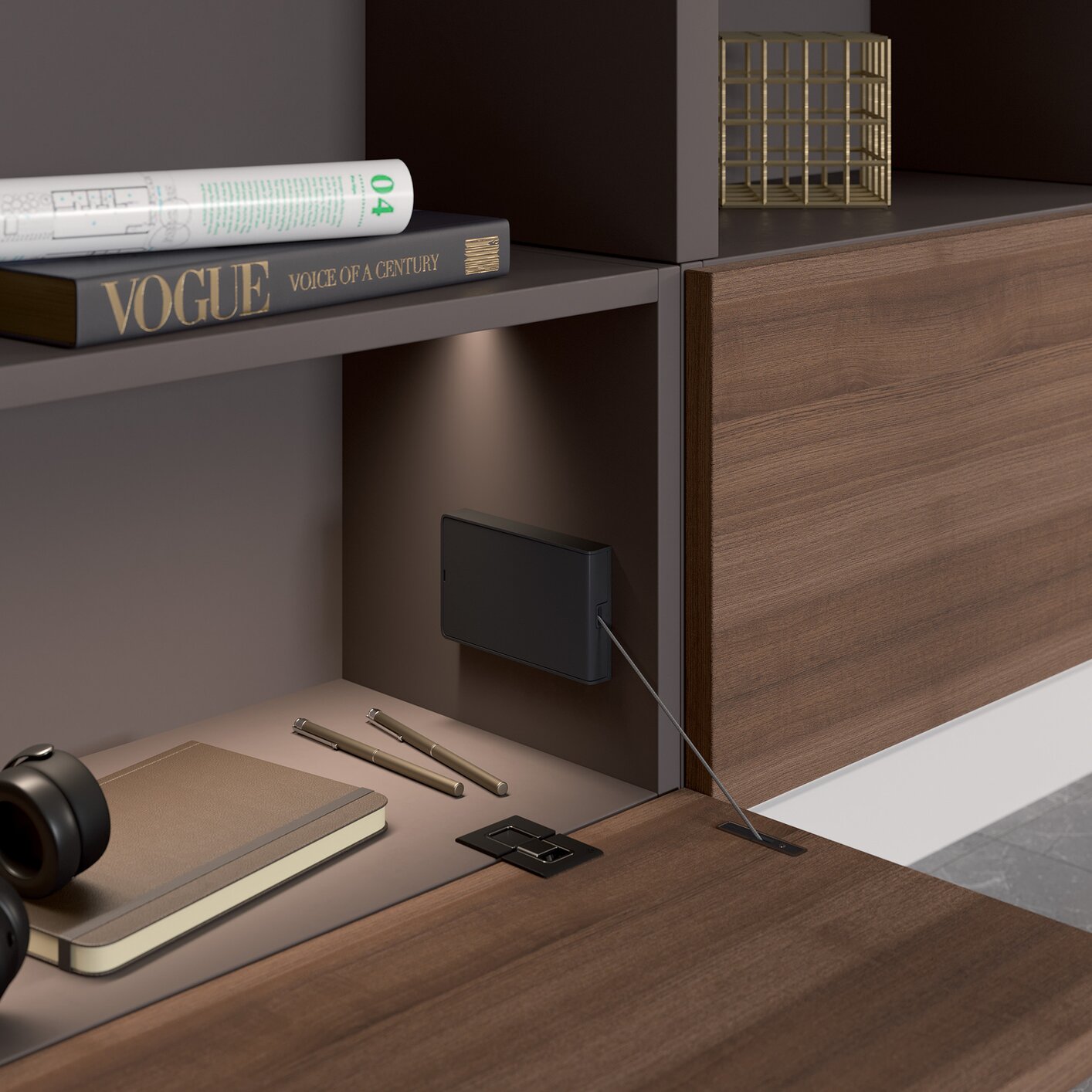

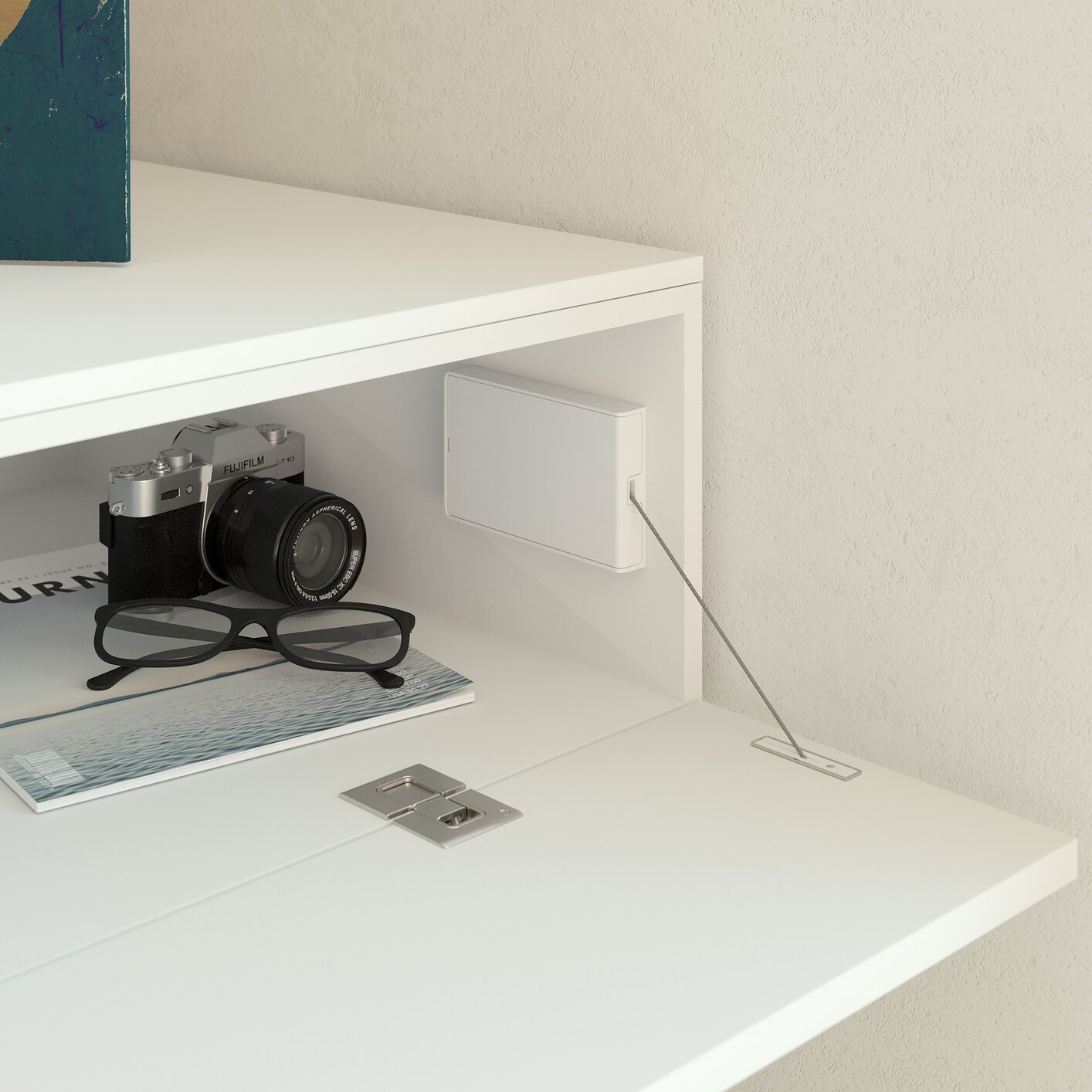

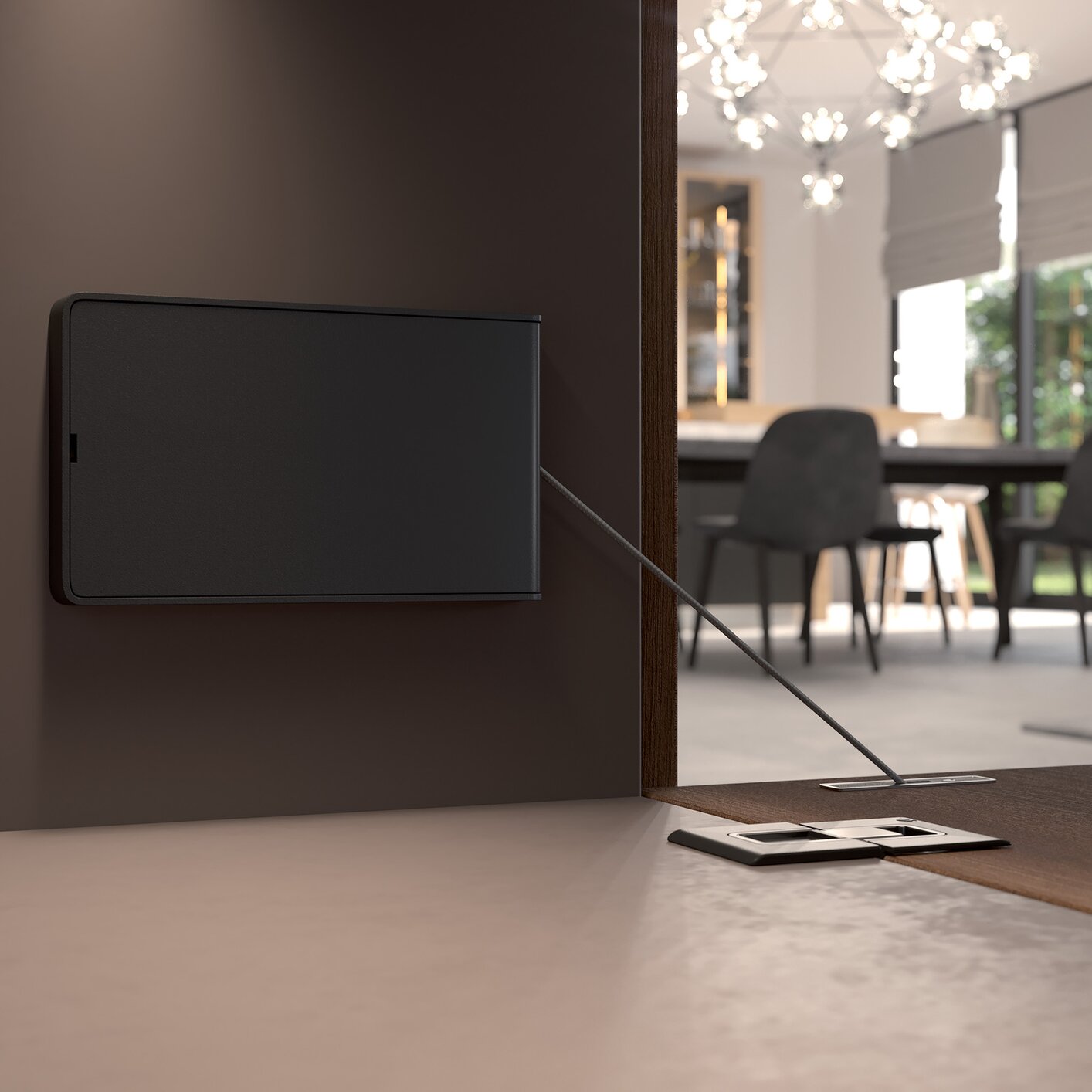

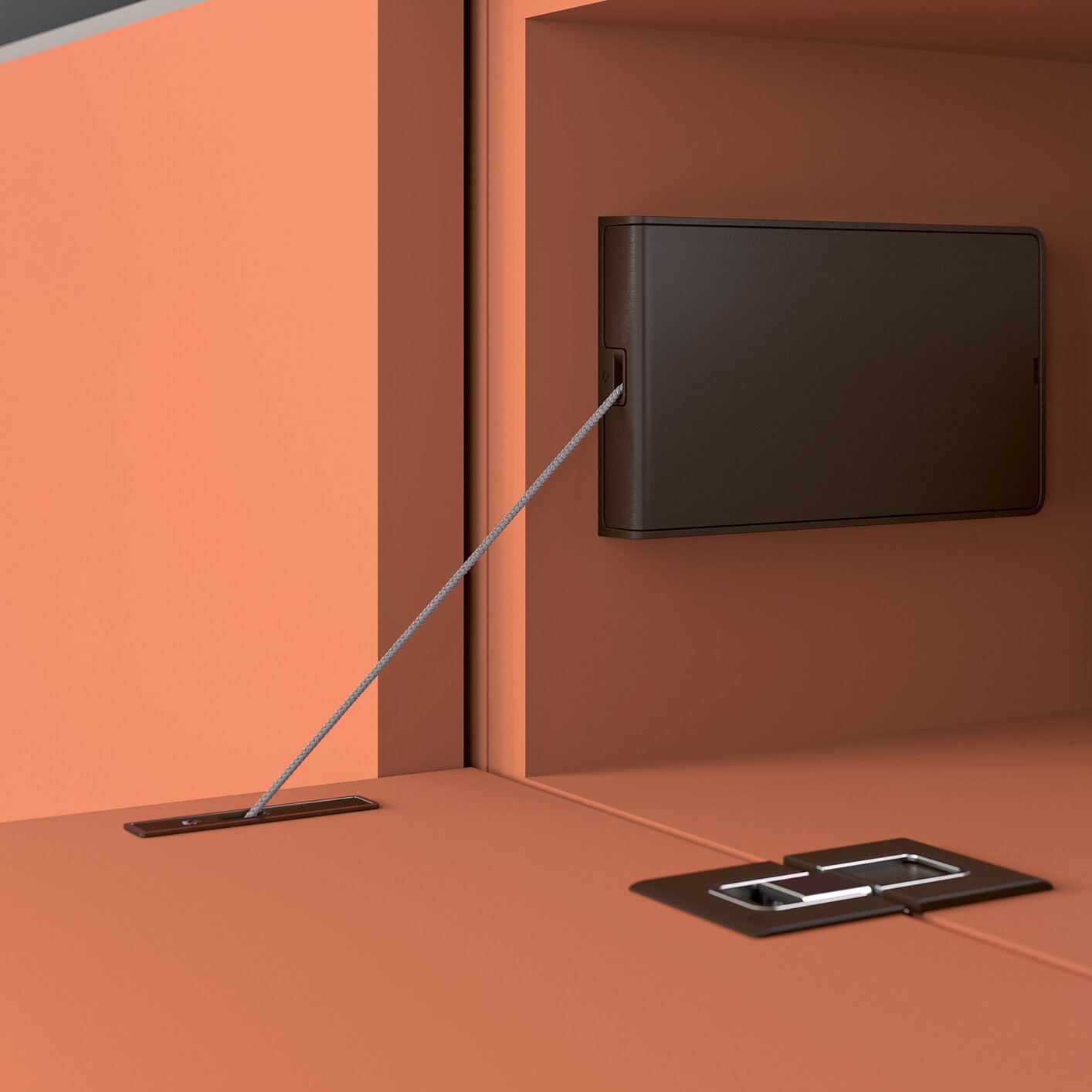

Kiaro Easy is a refined drop-down door opening system that combines minimalist design with smooth, precise operation. Its unhanded mechanism mounts effortlessly to the side panel, enabling door function through a slim yet durable technical wire. This creates a compact and well-balanced solution, perfect for smaller doors. The universal mechanism can be installed on either side, simplifying inventory management. With an easily adjustable pre-mounted screw, the opening strength ensures soft and controlled door movement, while the opening angle can be fine-tuned with a simple screwdriver. The system includes both concealed and surface door brackets.

Kiaro Easy delivers a streamlined solution that enhances your design, with cover options available in various finishes to match any cabinet interior. Its versatility extends to support multiple types of door brackets, making it adaptable to diverse design needs. Achieve an unparalleled design by combining Kiaro Easy with a Kimana hinge.

Product Advantages

Minimal and elegant opening system for drop-down doors.
Unhanded mechanism for easy installation.
Adjustable opening angle and cinematic, the front screws allow to adjust the opening and angle.
Kiaro easy could cover weight capacity from 1.6 to 6.7kg. to achieve such a range, the system came in 2 tensions: soft and strong.
Dyneema^© wire, the cable used with Kiaro Easy is 8 times stronger than steel wire rope and is hydrophobic and does not absorb water, resistent to residential usage and rust-free for humid environment.
Available in four finishes: Anthracite, Aluminium Grey, White, and Brown.
Handleless door option, the K Push Tech option allows for door opening without the need for handles, regardless of door weight and size.
The Kiaro Easy kit come with 1 of each installation bracket. Surface mounted for any thickness material and concealed for a minimum of 18mm thick material.
Wide angle adjustment of the opening angle (-13 deg / + 7 deg).
Front access to adjust the power using a PZ2 screwdriver.

Important Information

Resources

Kiaro Easy Opening System Technical Specifications Kiaro Easy Opening System Installation Instructions Line Art Line Art

Videos

Limited Lifetime Warranty

In the event that any product Marathon sells is found to be defective in either workmanship or materials, such products shall be replaced by Marathon, free of charge, for as long as the original consumer purchaser owns the products.

If a product is no longer available, Marathon will replace the defective hardware with a current offering.

Not covered by our warranty:

Incorrect installation or any consequential and/or incidental damages incurred as a result of incorrect installation.

Hardware that has been exposed to excessive loads, abused, or used in any manner other than its intended purpose.

Removal of defective hardware, delivery costs, or installation of new hardware.
