Kimana Flat Hinge Set
![Italiana Ferramenta](/brands/italiana-ferramenta-logo.png)

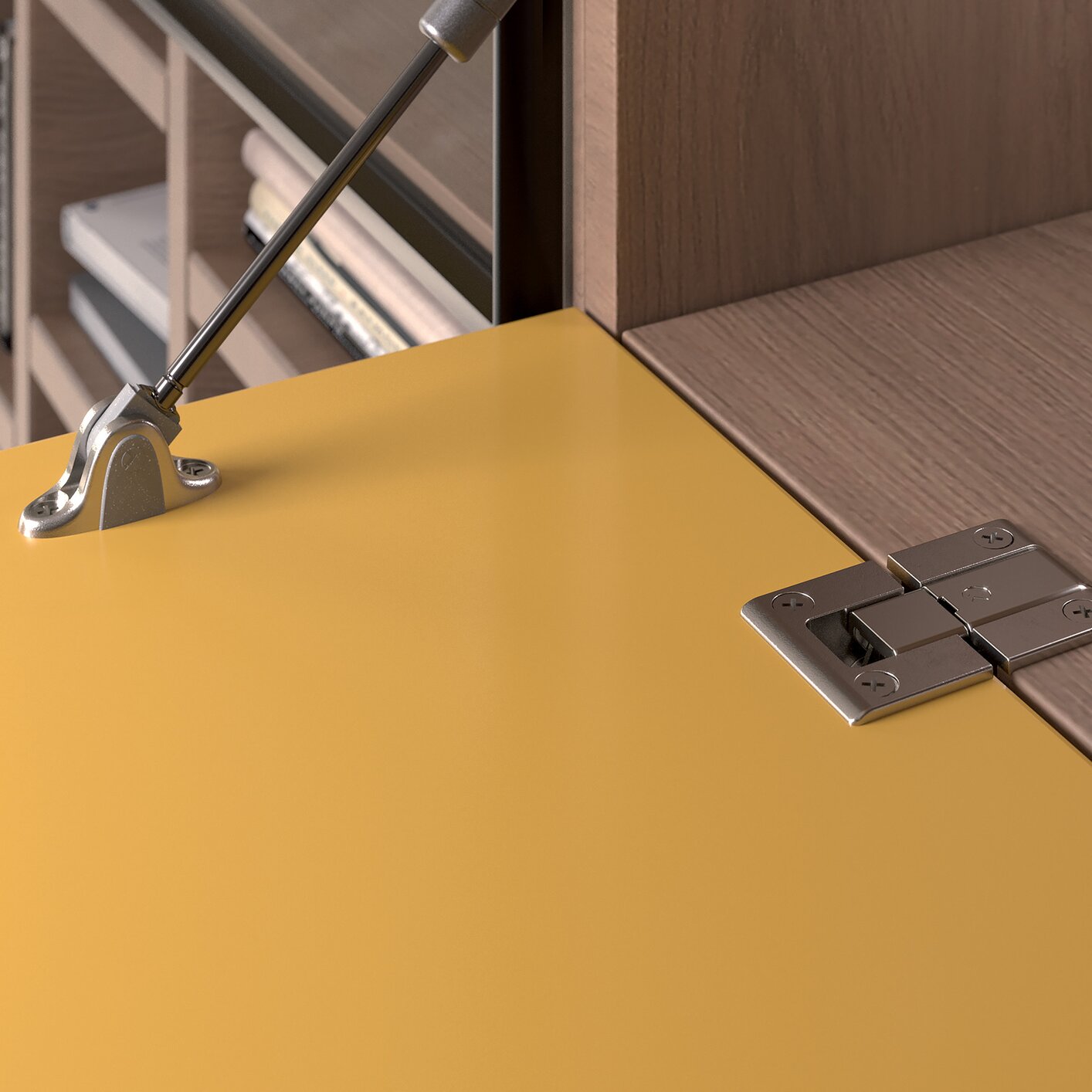

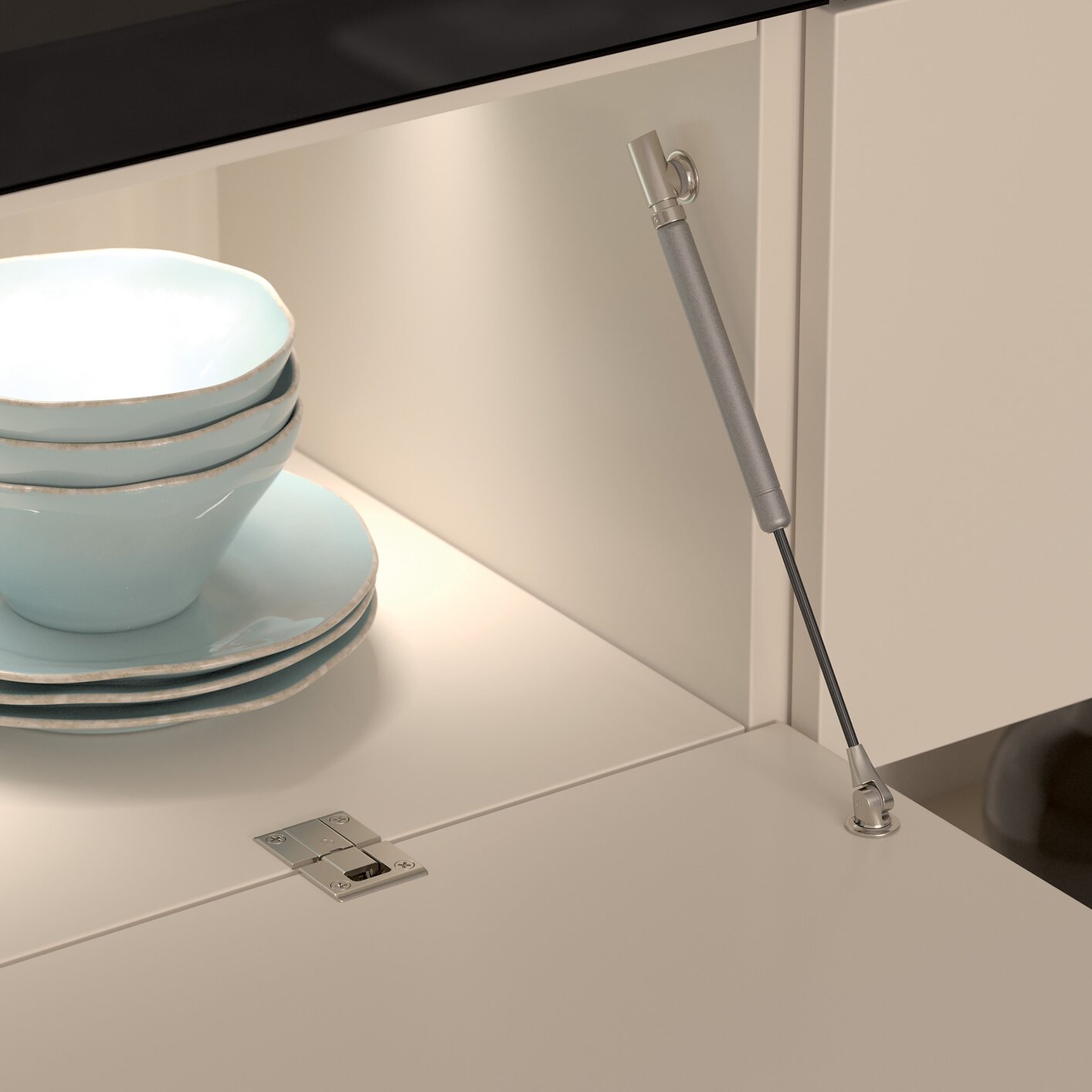

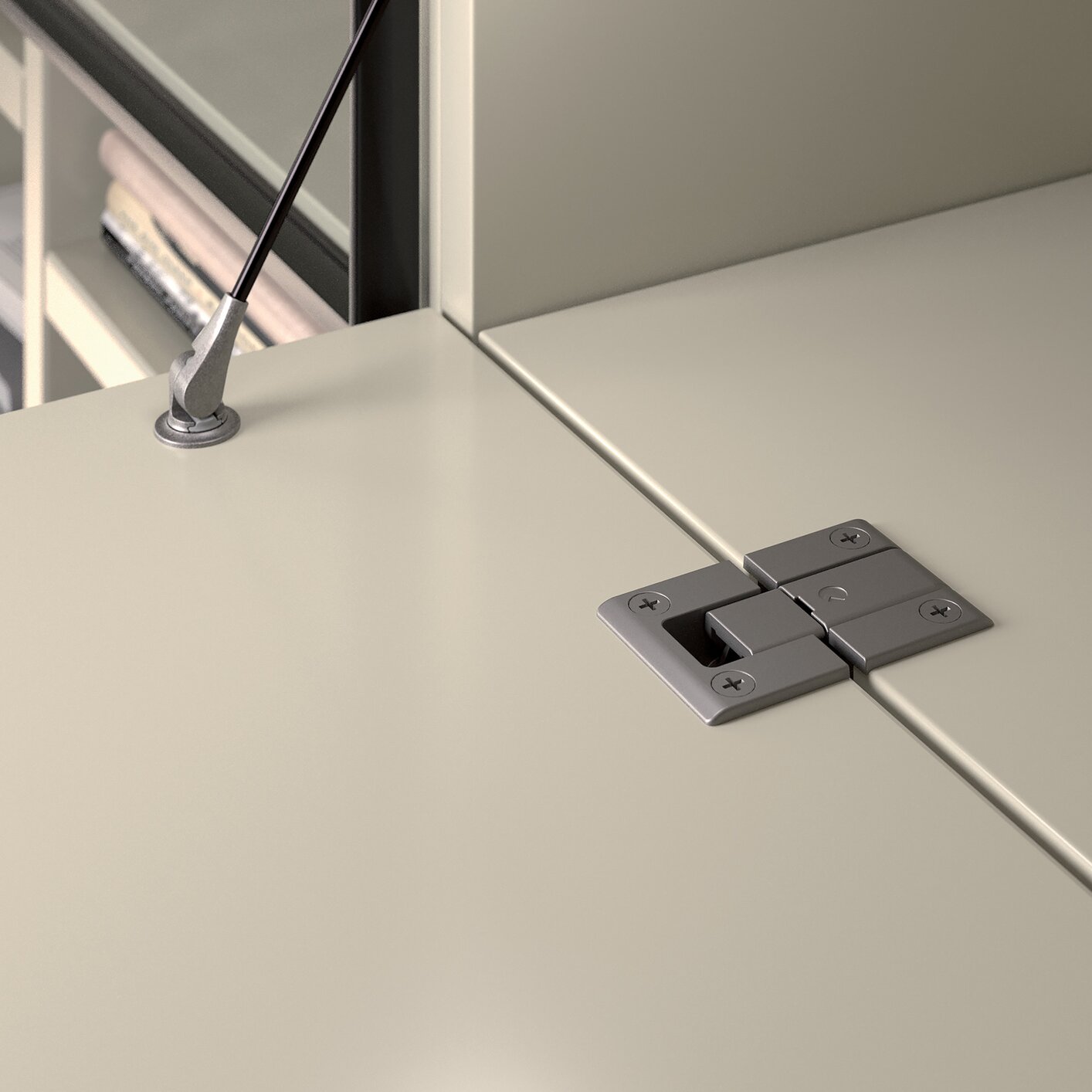

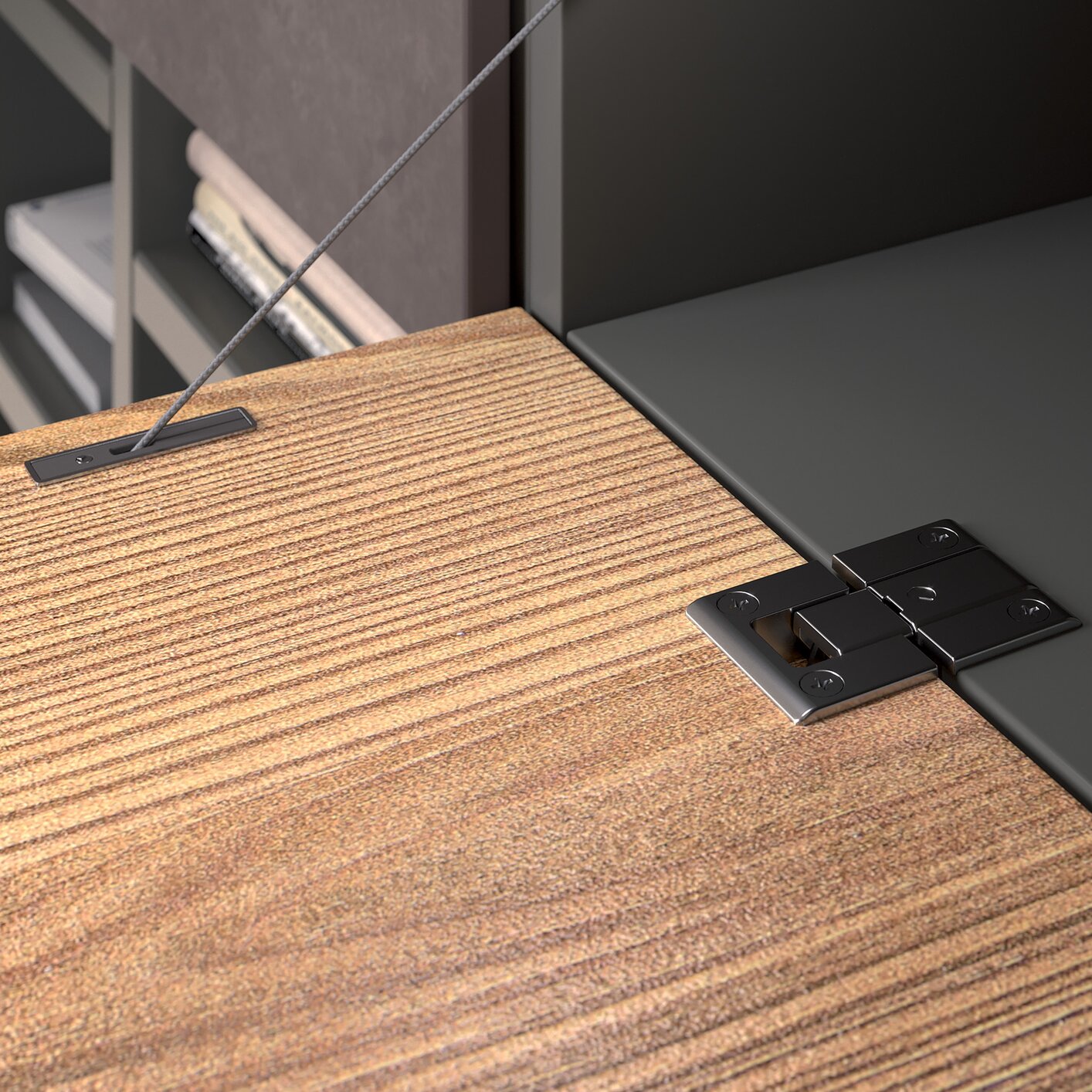

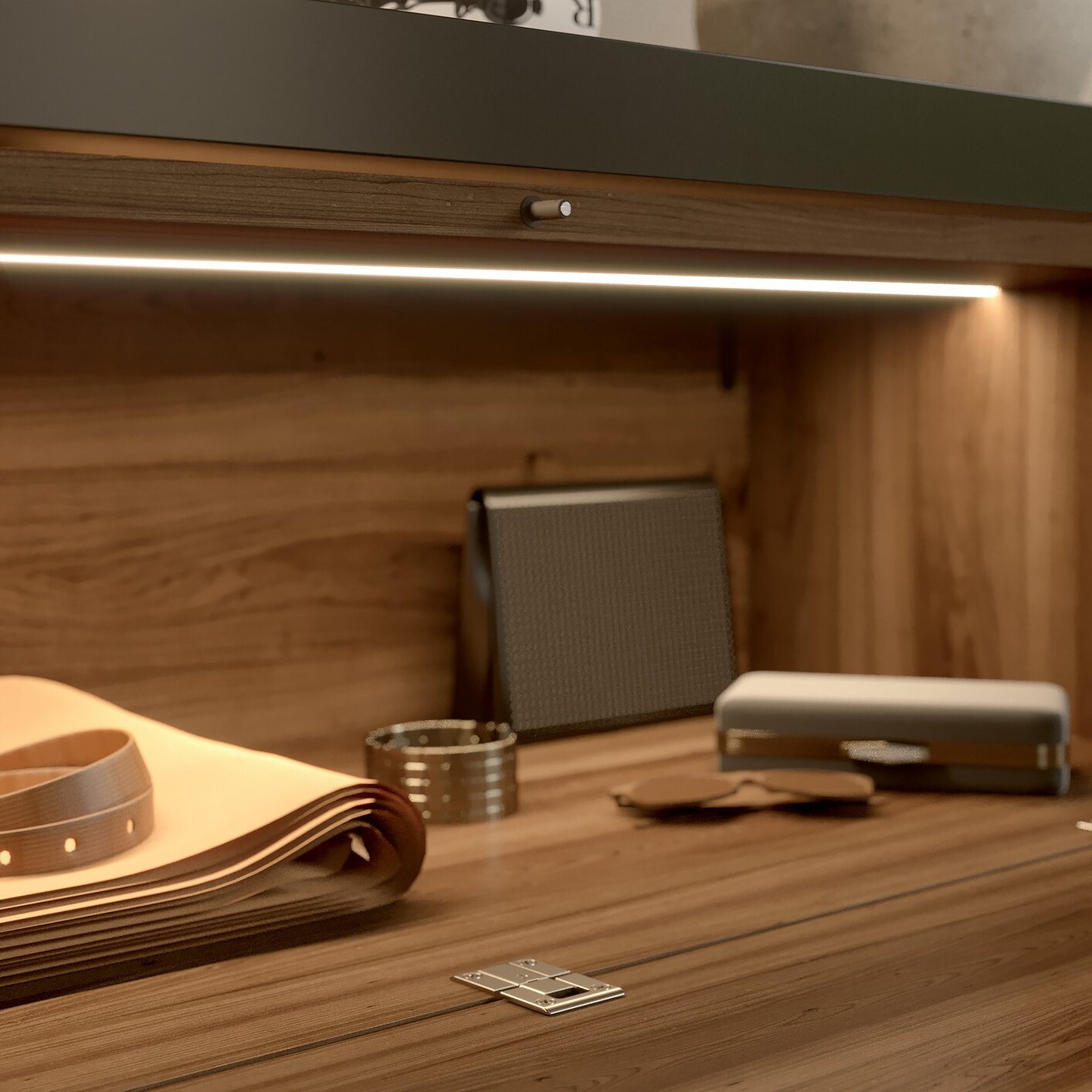

Kimana is a flat hinge with a unique movement that allows flap and drop-down doors to open even when the cabinet bottom rests on another panel or the top has a decorative or lighting panel.
Product Description
Kimana is a sleek flat hinge designed for opening and closing flap and drop-down doors. Its unique and innovative movement allows for seamless cabinet door operation, even in challenging configurations where the cabinet bottom rests on another panel or the top is capped by a decorative or lighting element.

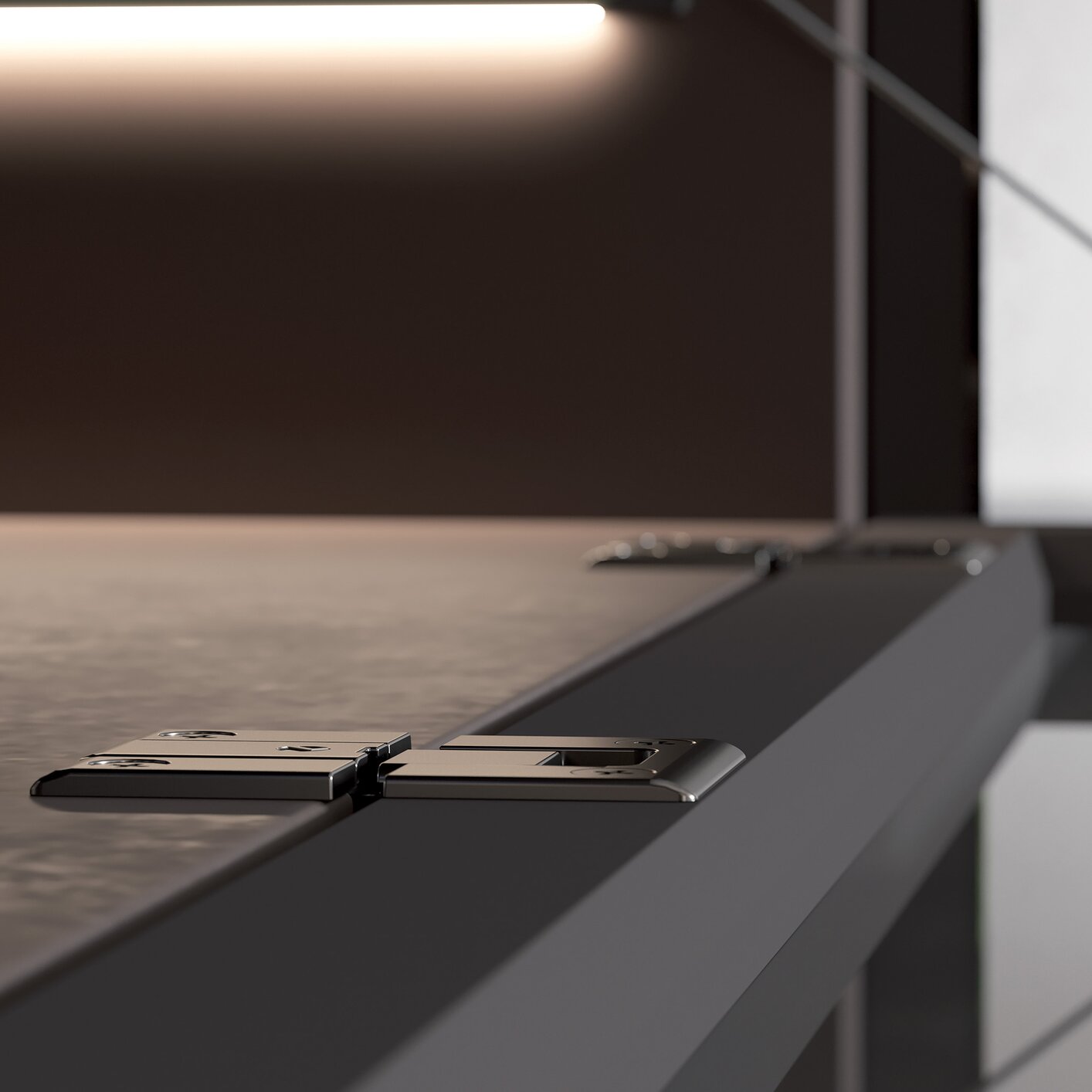

With a compact design featuring a Ø 26mm boring for both the door and bottom, Kimana stands out not only for its functionality but also for its minimalist and elegant aesthetic. The perpendicular fixing screws ensure precise positioning, making it an ideal choice for use with aluminum profiles. Adjustments are easily made using concealed PZ2 screws beneath the cover.
Kimana accommodates various door and cabinet thickness combinations, either through simple adjustments or by adding adapters under the hinge clip, ensuring perfect movement and alignment of the door.

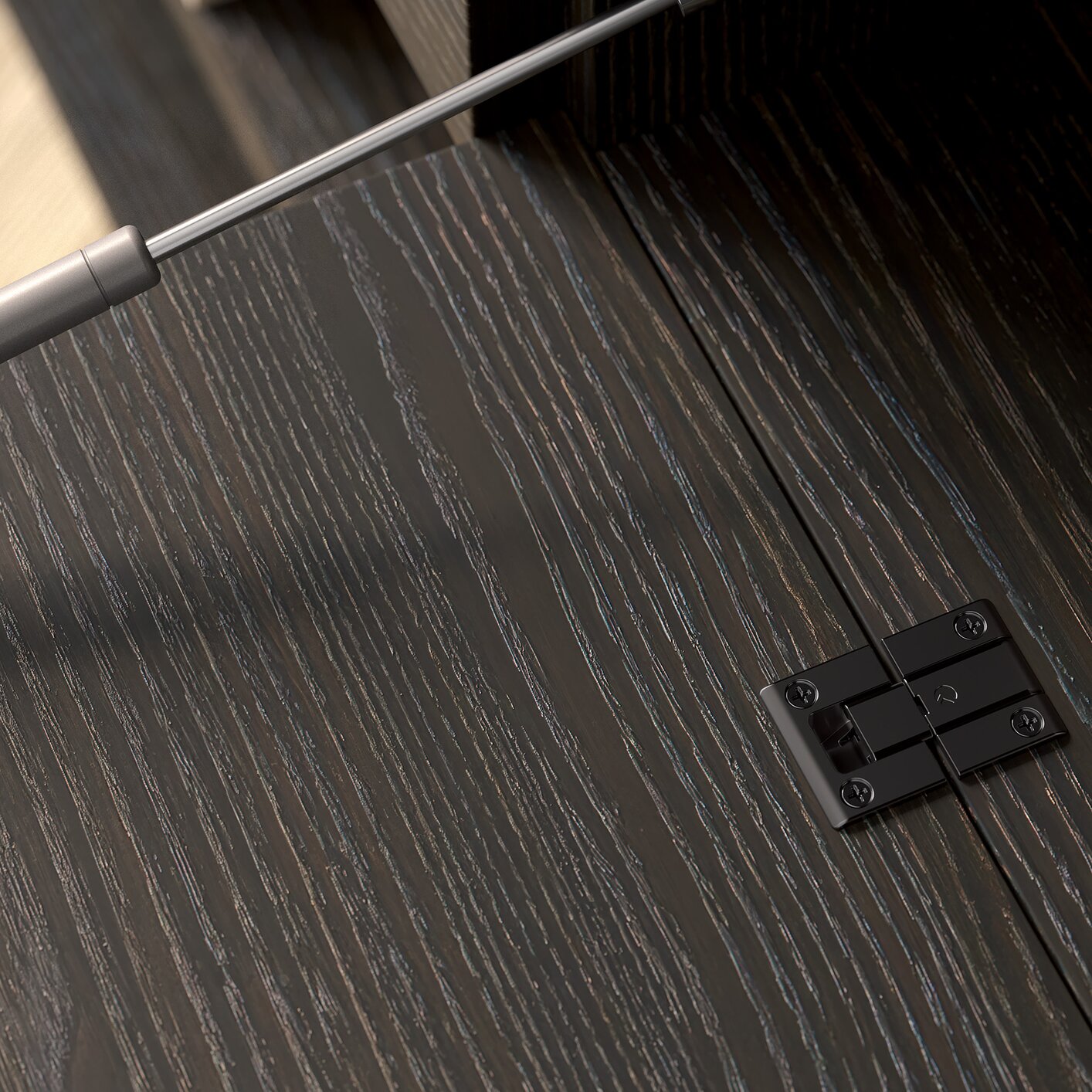

Available in three finishes—standard nickel-plated, black nickel-plated, and graphite varnished—each version comes with matching countersunk screws, providing a polished and cohesive look.
Product Advantages
- Space-saving design with small dimensions, with a Ø 26mm boring for both the door and the bottom.
- Perpendicular fixing screws for perfect positioning. Secures the hinge by putting pressure flat to the surface. Better than other models offered on the market with diagonal screwing having the forces not working together but applied in different location.
- Easy adjustment through hidden screws (PZ2) underneath the cover.
- Adaptability to various door and cabinet thickness combinations. The provided spacers (2mm and 4mm) help the installer to reach different thickness scenario. by following the different combinaison of spacers, 5/8 or ¾ thick cabinet or doors could be achieve and delivered a coplanar door with the cabinet.

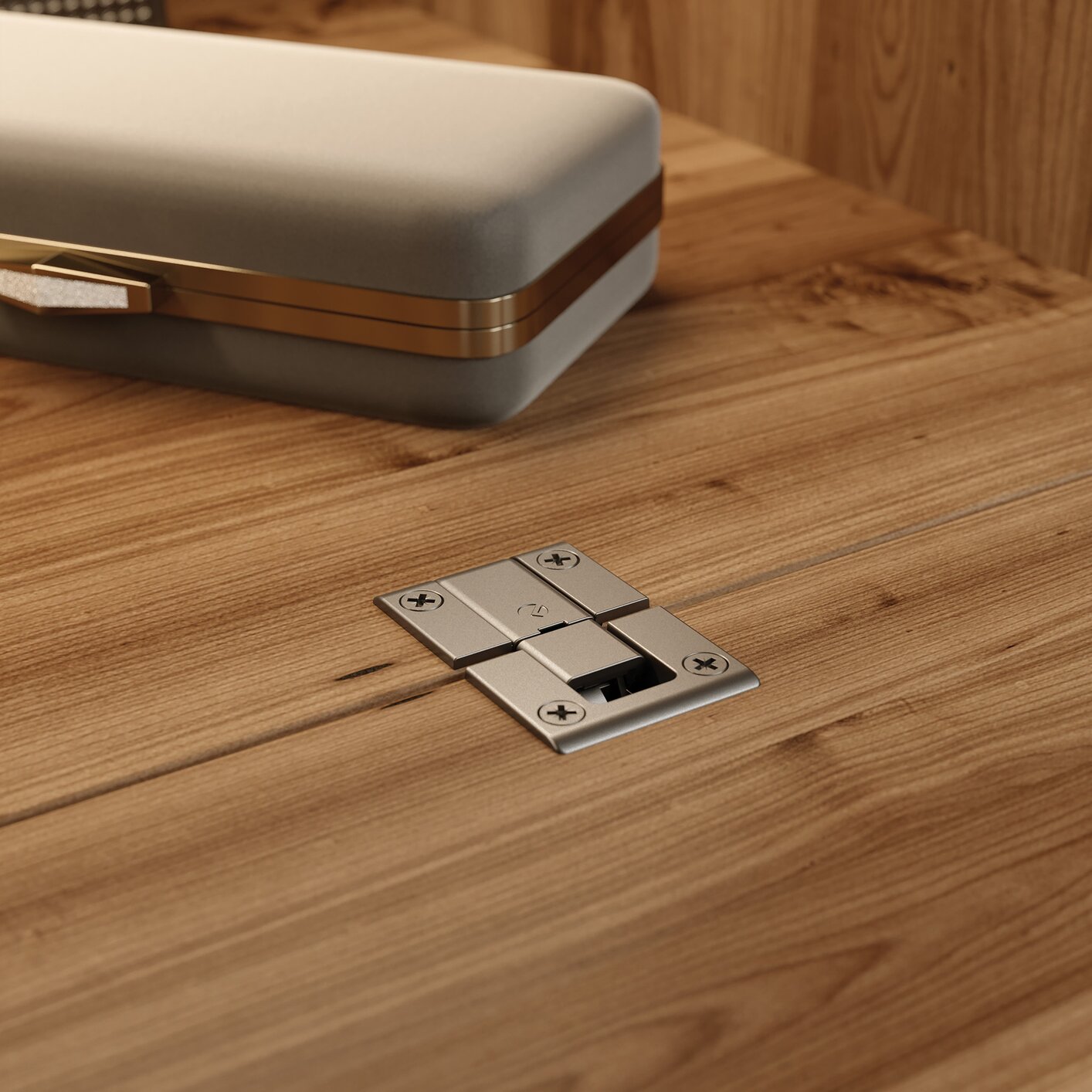

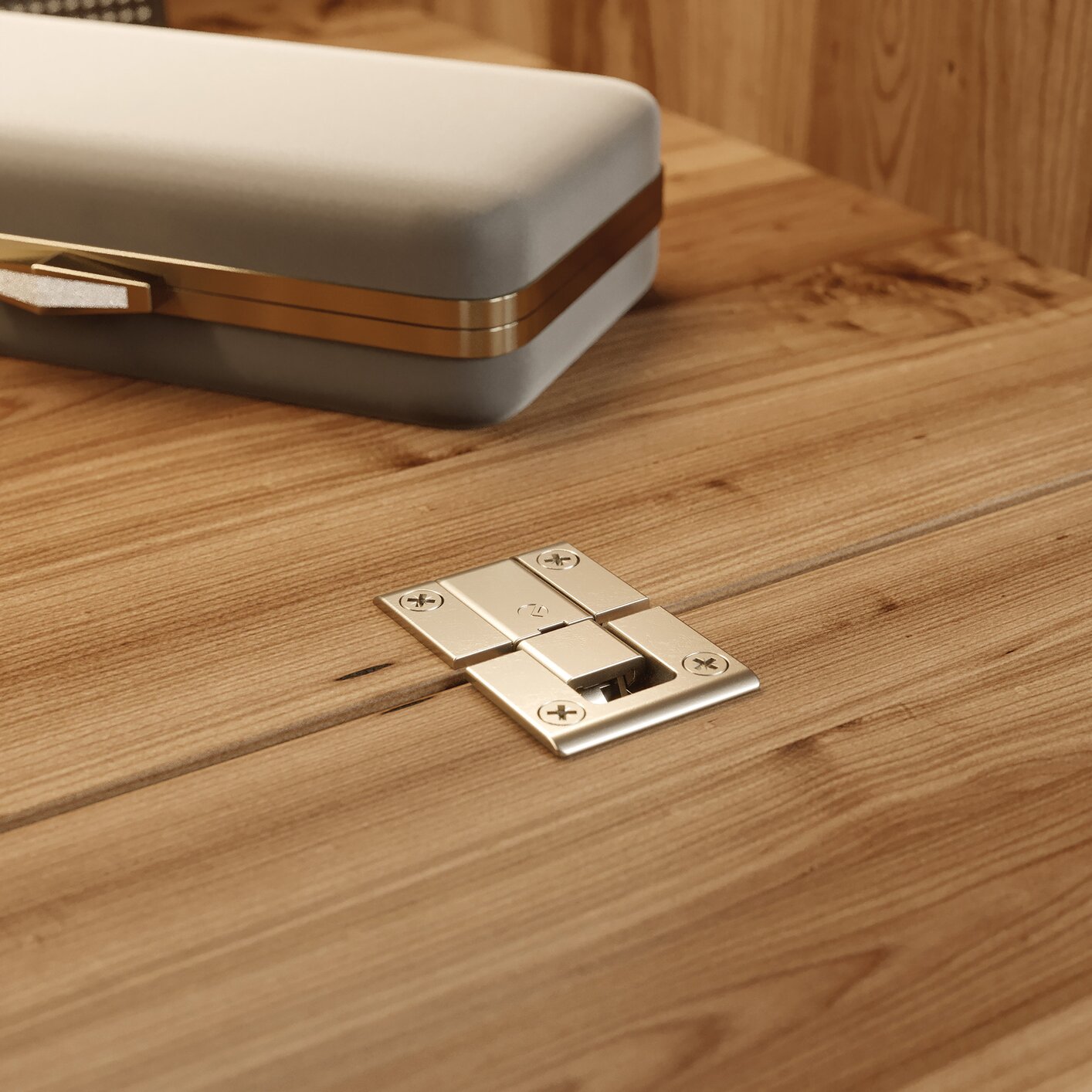

- Available in three finishes: nickel-plated, black-nickel plated and graphite color.
- Matching fixing countersunk screws provided for each finish are included with each set.
Important Information
Includes the Kimana hinge, cover, 2 and 4mm for 5/8 or 3/4 thick material spacers and mounting screws.
Product Files
Product Diagrams
Hinge Type | Flat |
