King Slide ULead Soft-Close Undermount Slide

By King Slide
Measurement : Metric/Imperial

Length

Ordering information

King Slide's premium ULead undermount slide with soft-close, full-extension and a 4-way adjustment locking clip.

Product Details

King Slide's premium ULead undermount slide with soft-close, full-extension and a 4-way adjustment locking clip.

Brand
King Slide
  • Product Description

    King Slide ULead Undermount Slides are a high-quality full-extension undermount slide that enables you to show off the beauty of the wooden drawer box while ensuring top reliability and performance. With an ultra-smooth gliding motion that offers high rigidity and stability, you can be sure that your project’s drawers will continue to perform for a kitchen’s lifetime.

    The enhanced soft-closing feature works silently while still offering a light opening force, and the durable damping system offers fast response capability. This model is designed for wooden drawers with maximum side thickness of 16mm (5⁄8 inch) and includes a 4-way adjustable front locking device.

  • Product Advantages
    • Concealed undermounted slides with full extension travel
    • Ultra smooth gliding motion with high rigidity and stability
    • Enchanced silent soft-close with light opening force
    • Durable damping system with fast response capability

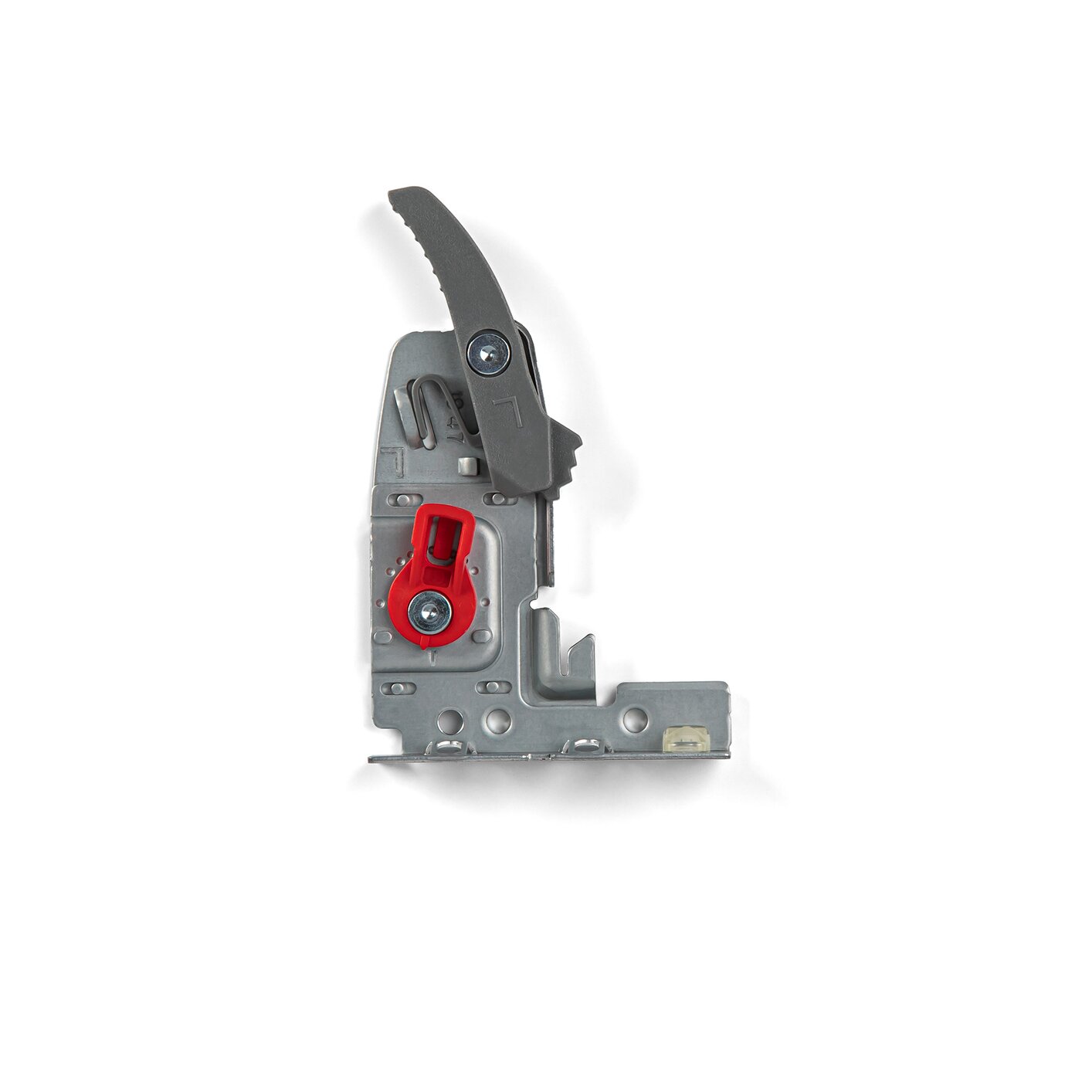

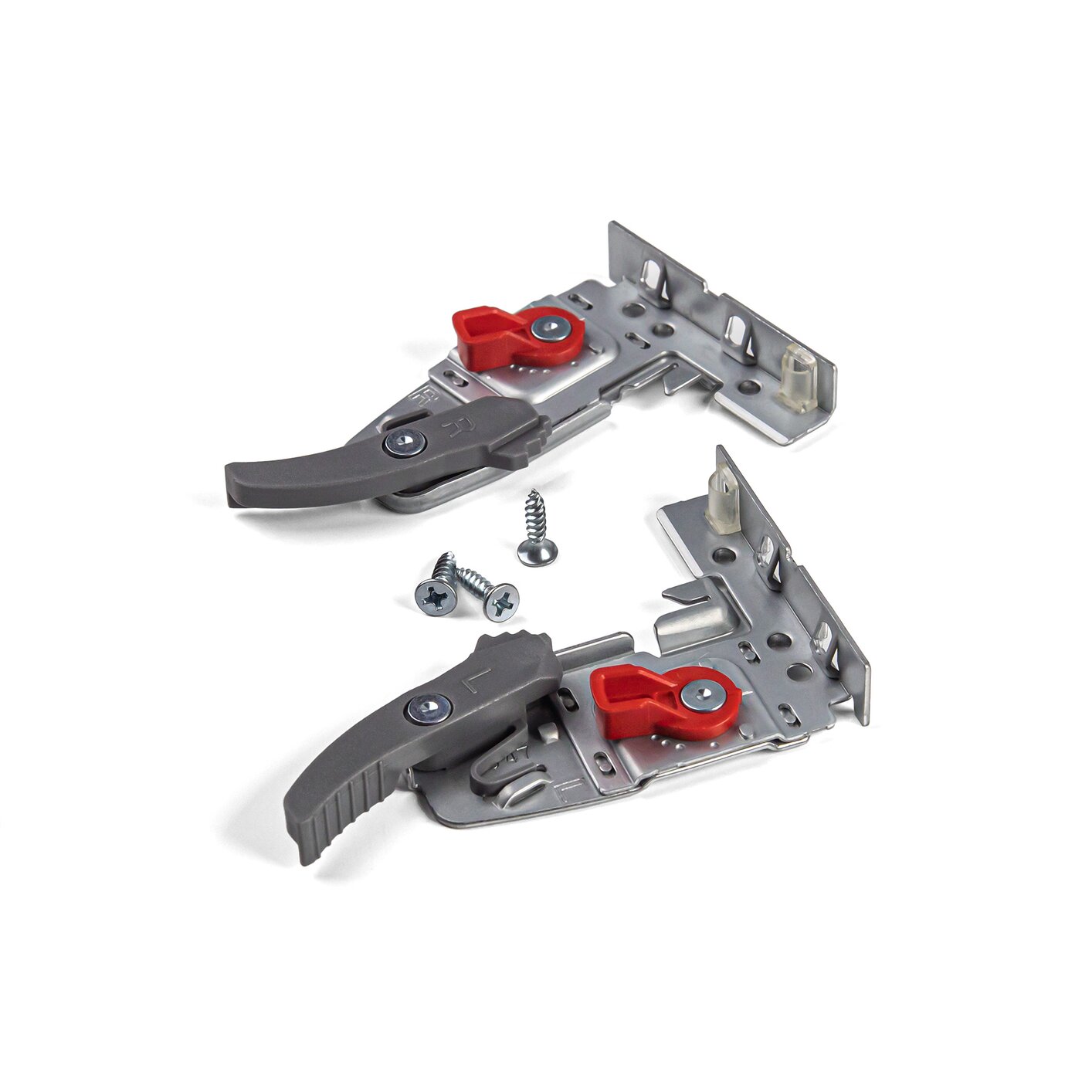

    • Tool-less drawer height adjustment from the drawer front
    • Simple Drawer Assembly with front release latch
    • Load capacity of 40kg (88lbs)
    • Third party tested to 100,000 duty cycles
  • Resources

Specifications

King Slide ULead Soft-Close Undermount Slide
Closing Type:
Soft-Close
Load Capacity:
40kg (88lbs)
Mounting Type:
Screw-In
Slide Extension Type:
Full-Extension
Slide Type:
Undermount

Limited Lifetime Warranty

In the event that any product Marathon sells is found to be defective in either workmanship or materials, such products shall be replaced by Marathon, free of charge, for as long as the original consumer purchaser owns the products.

If a product is no longer available, Marathon will replace the defective hardware with a current offering.

  • Not covered by our warranty:

    Incorrect installation or any consequential and/or incidental damages incurred as a result of incorrect installation.

    Hardware that has been exposed to excessive loads, abused, or used in any manner other than its intended purpose.

    Removal of defective hardware, delivery costs, or installation of new hardware.
