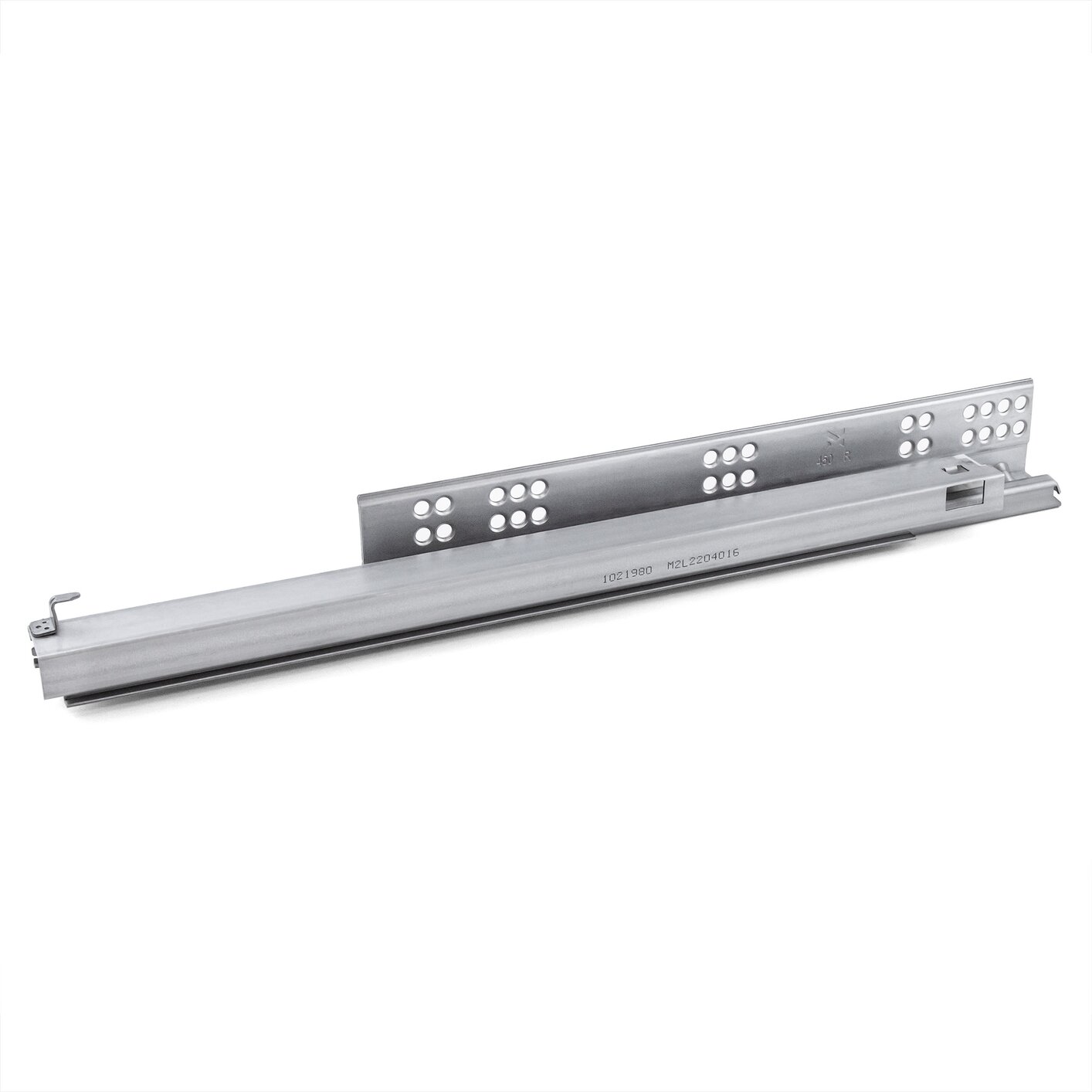

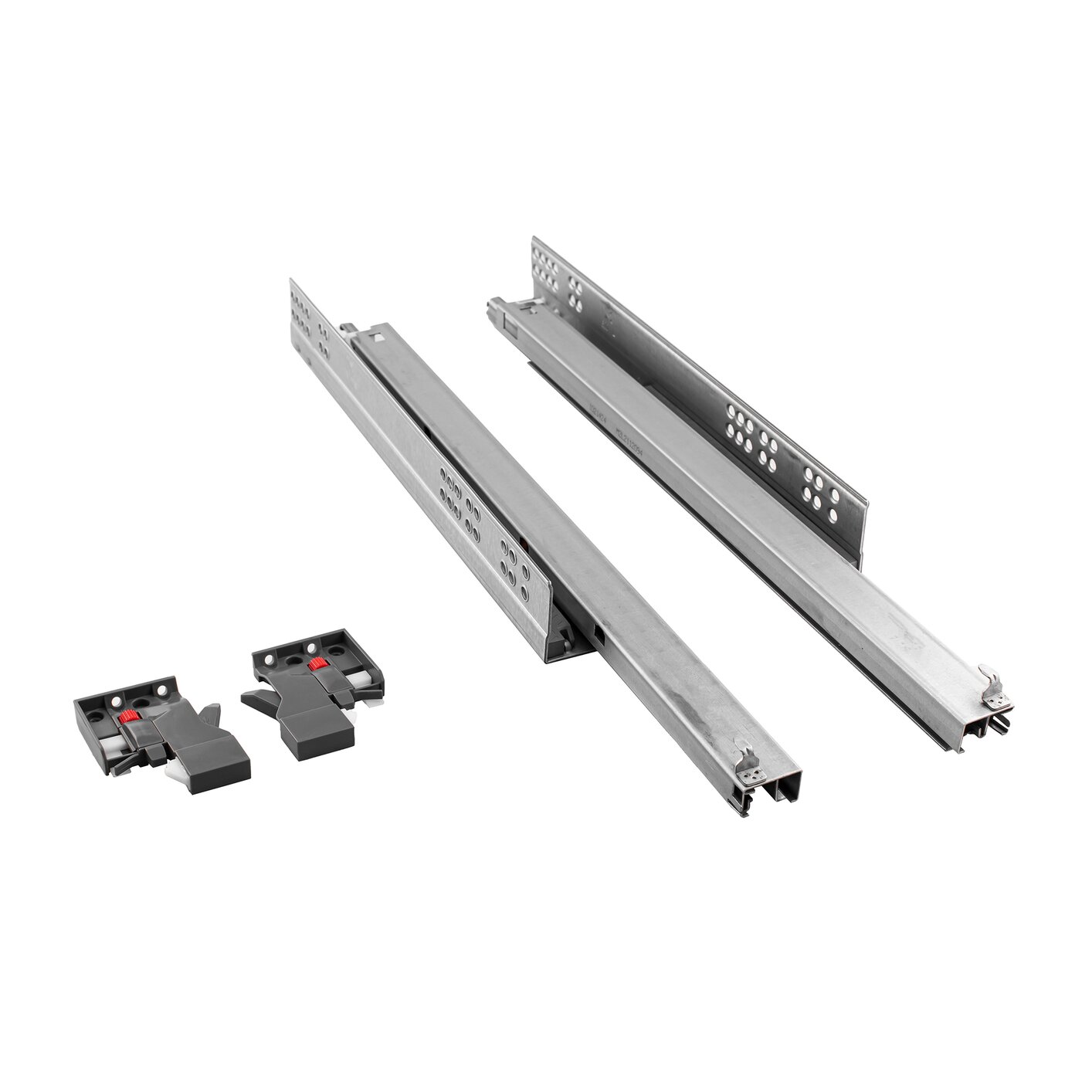

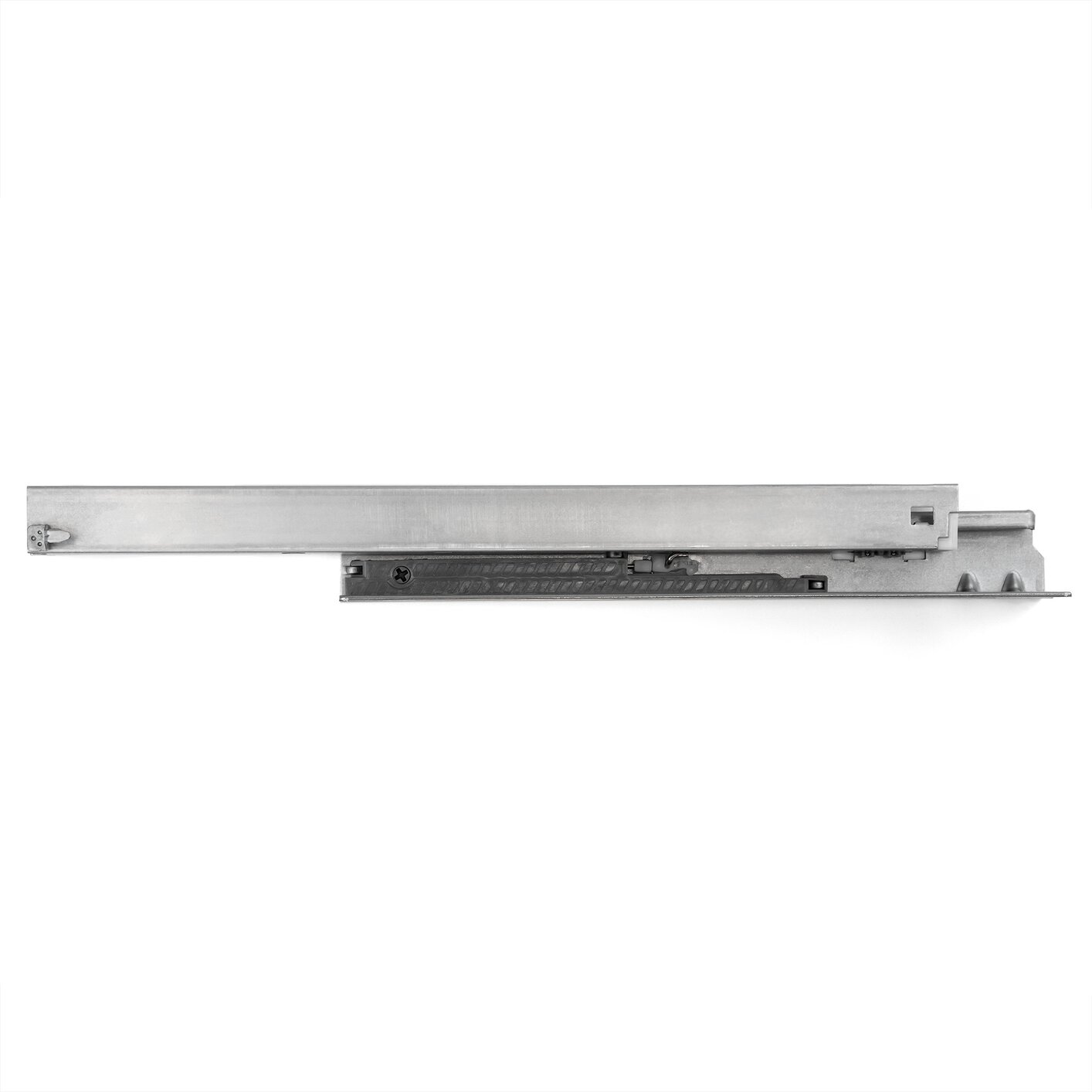

The M-Series Aeon20 full-extension soft-close undermount is a cost-effective drawer slide for most residential and commercial applications.
Product Description
The Aeon20 (M-Series) full extension soft-close undermount slide comes with a 6-way adjustment clip for a total installation freedom and carries a load capacity of 35kg (77lbs).
Product Advantages
- Full extension
- Adjustable soft-close
- 9 lengths available (250mm-600mm)

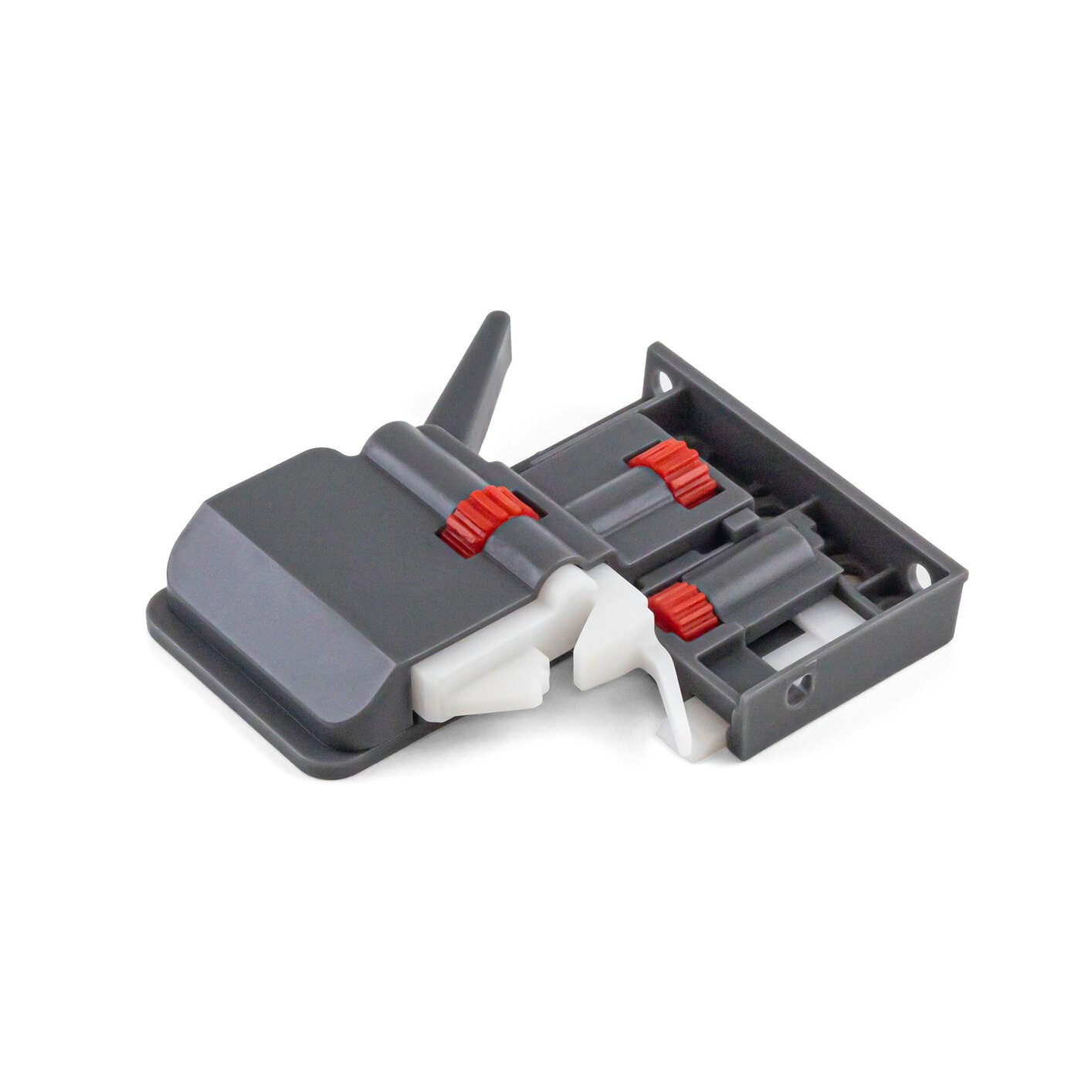

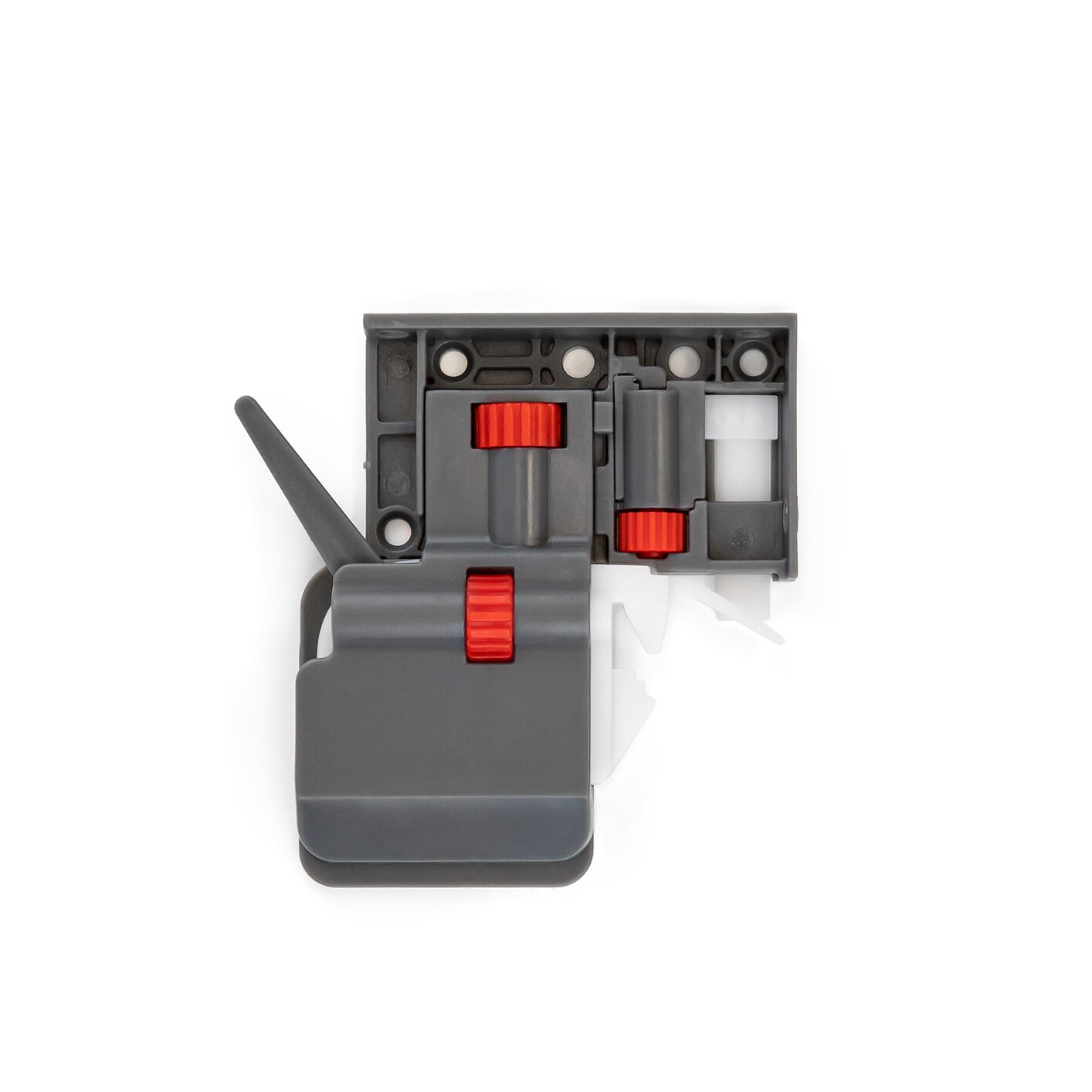

- Included: 6-way adjustment clip
- Height adjustment (+3mm)
- Lateral side adjustment (±2mm)
- Forward / backward adjustment (±2mm)
- Optional: 2-way adjustment clip (height adjustment only) for narrow drawers (approx. 170mm)
Important Information
Covered under the Marathon Limited Lifetime Warranty
Product Files
| Closing Type | Soft-Close |
| Drawer System | M-Series Fusion |
| Drawer Type | Standard Drawer |
| Load Capacity | 35 kg (77 lbs) |
| Slide Extension Type | Full-Extension |
| Slide Type | Undermount |
Related Products

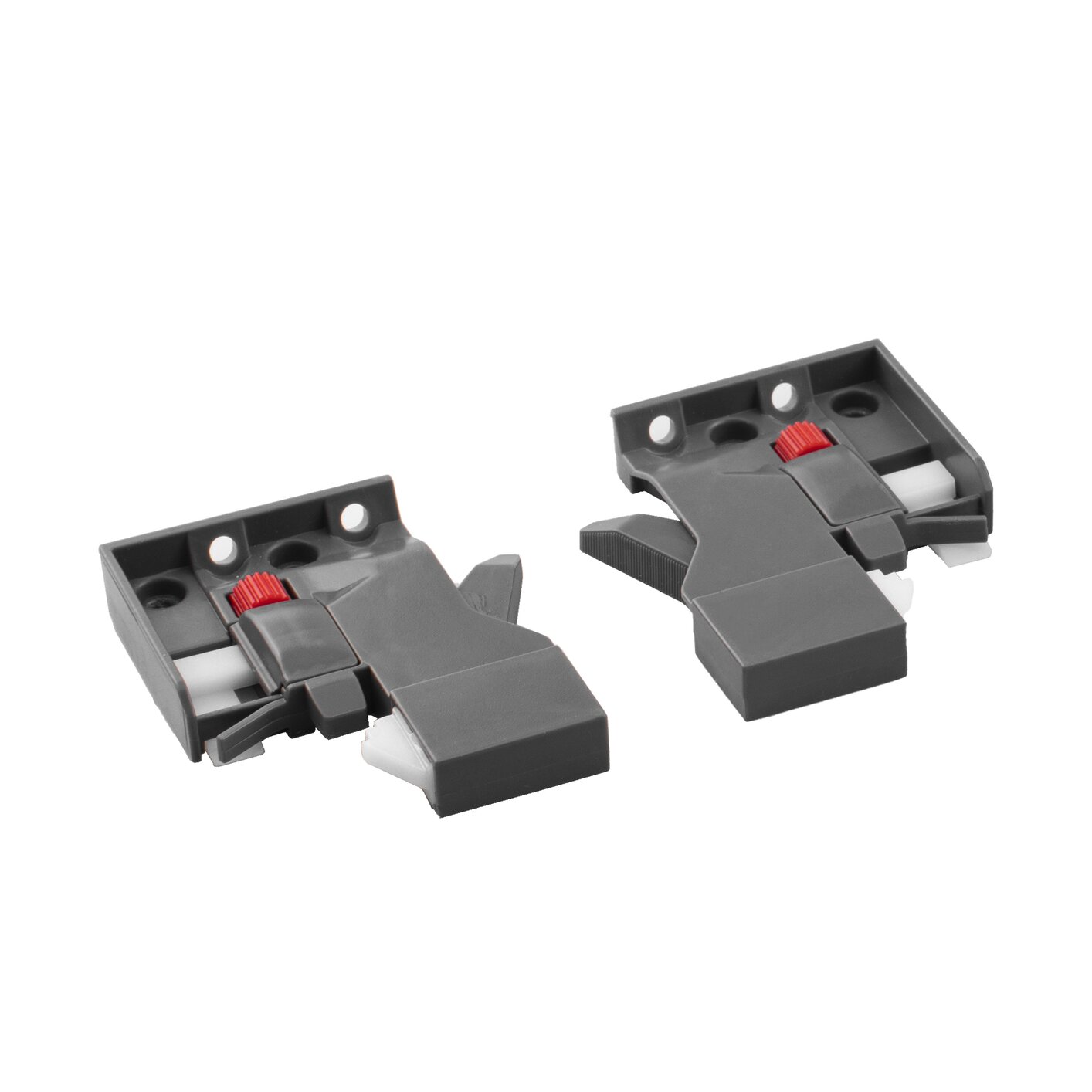

Locking Device 2-Way for M-Series Drawer Systems & Slides
Part #: 115-AE20-AE30-1D
Optional clip for the Aeon20 & Aeon30 (M-Series) full extension soft-close undermount slide

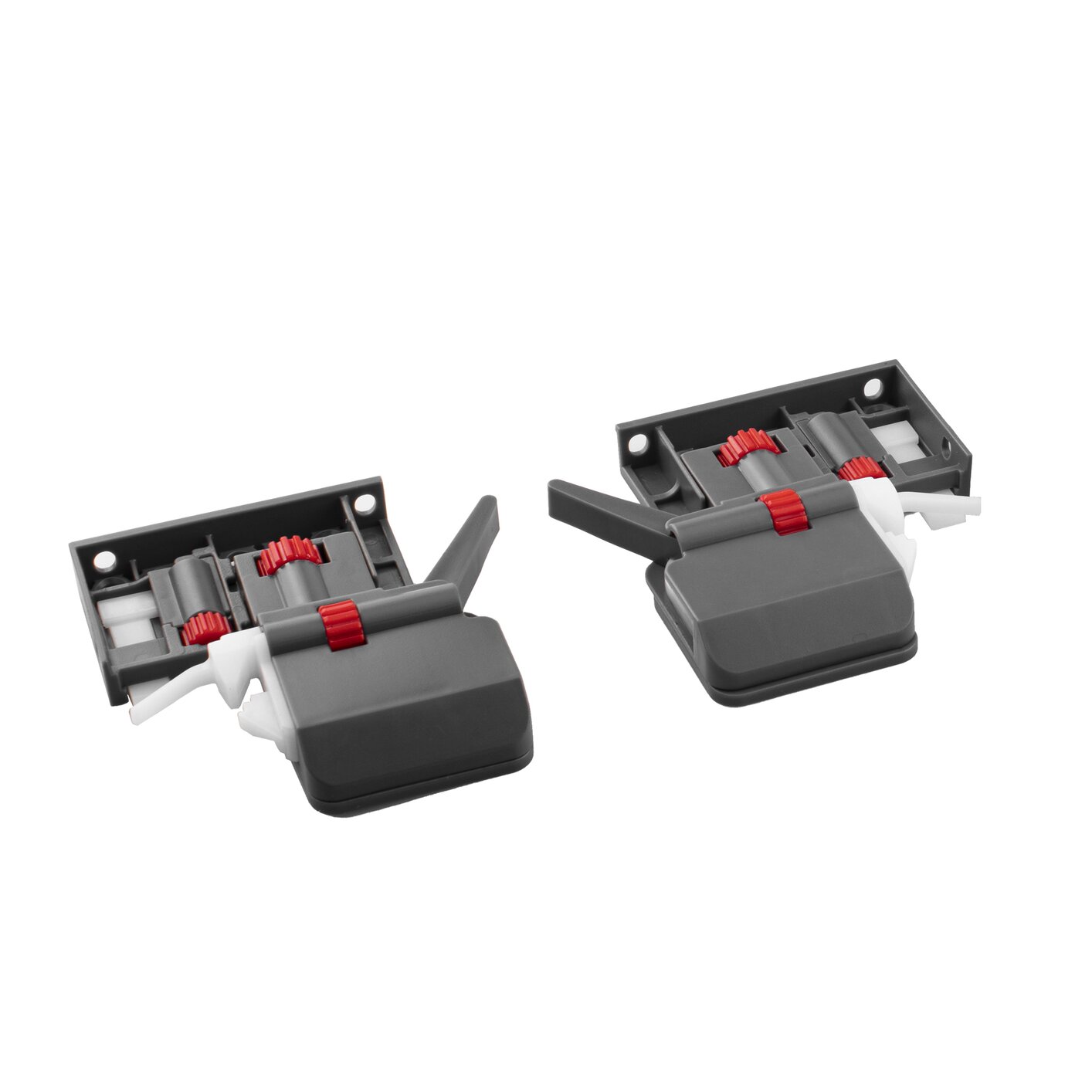

Locking Device 6-Way for M-Series Drawer Systems & Slides
