M-Series Drawer Machine


M-Series pneumatic drawer machines allow cabinet makers to quickly assemble a variety of lengths and widths for both slim wall and doublewall box types.

Product Description

M-Series Drawer Clamp machines have been designed with cost saving in mind by significantly decreasing drawer assembly time and increasing manufacturing consistency. The ECM-A and ECM-B can be used to assemble our M-Series Fusion and DTC Endura & Prima slim wall drawers and DTC Infinity doublewall drawer systems.

Product Advantages

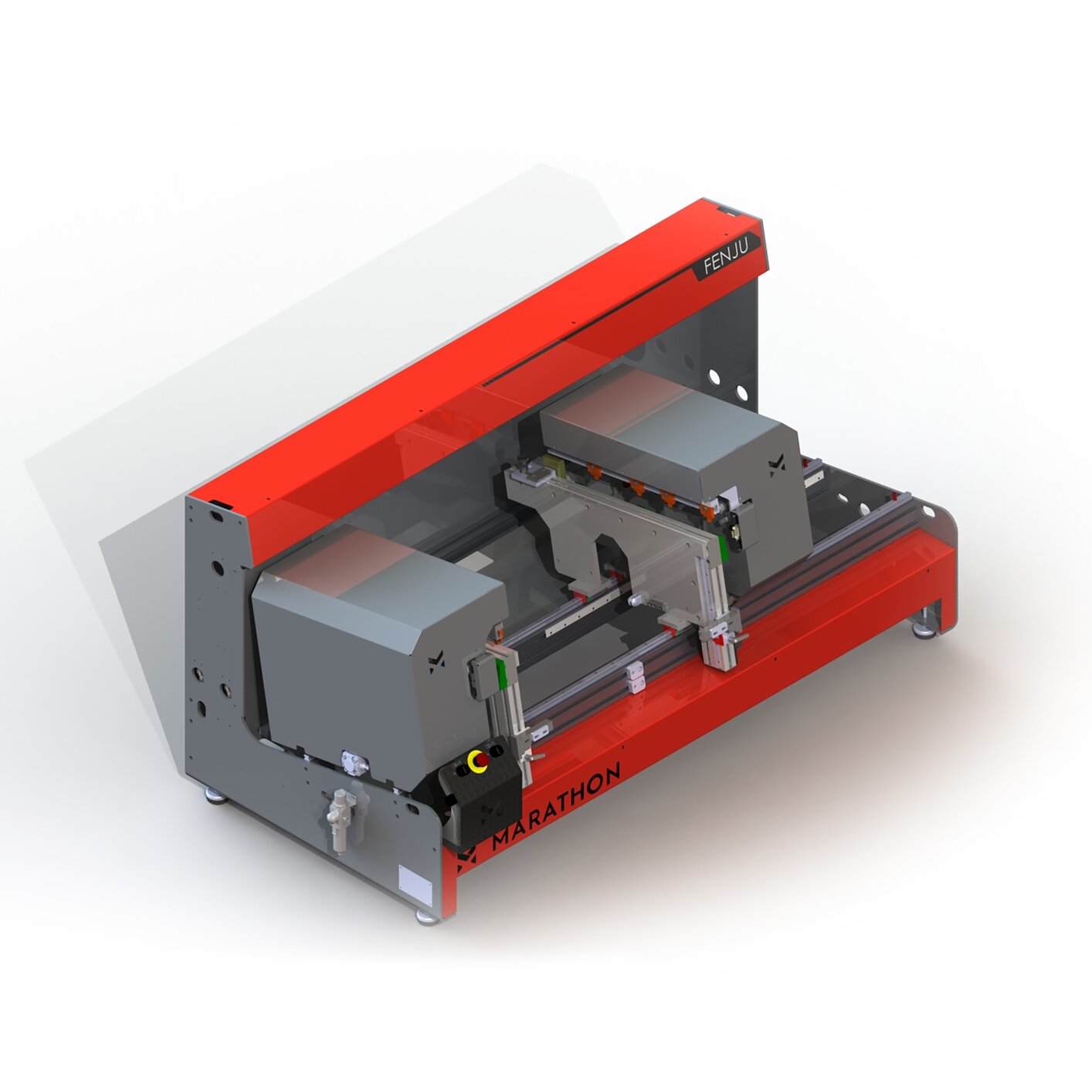

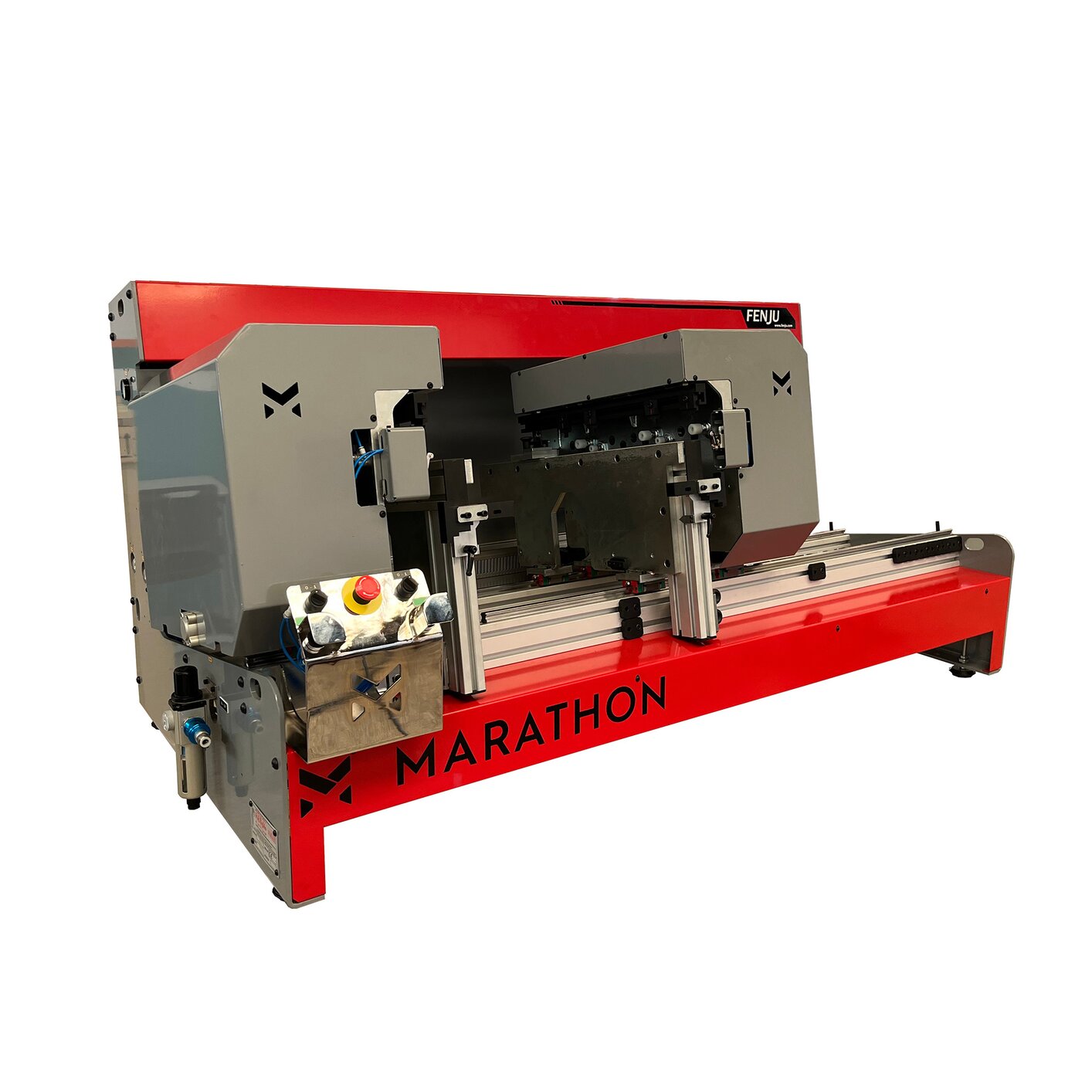

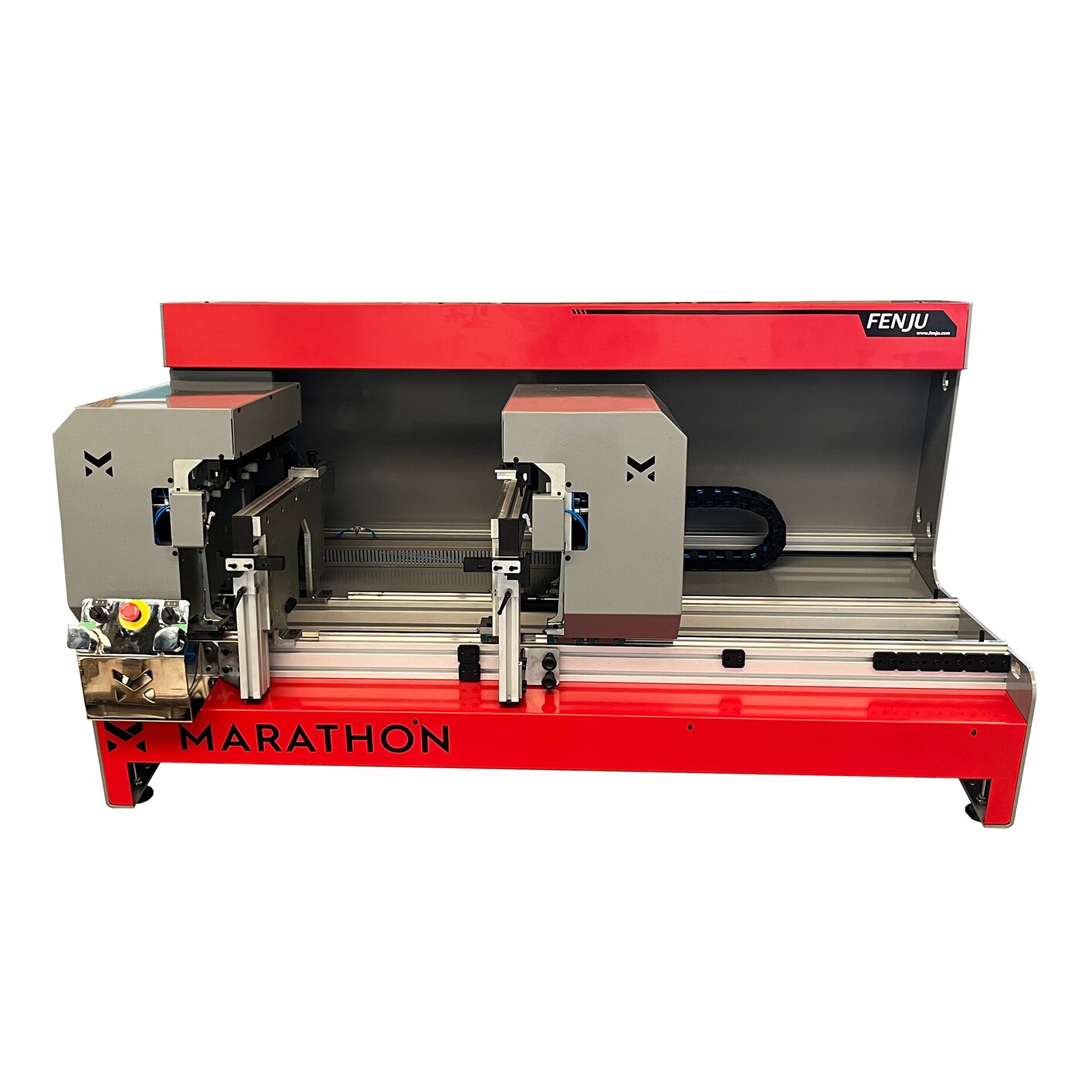

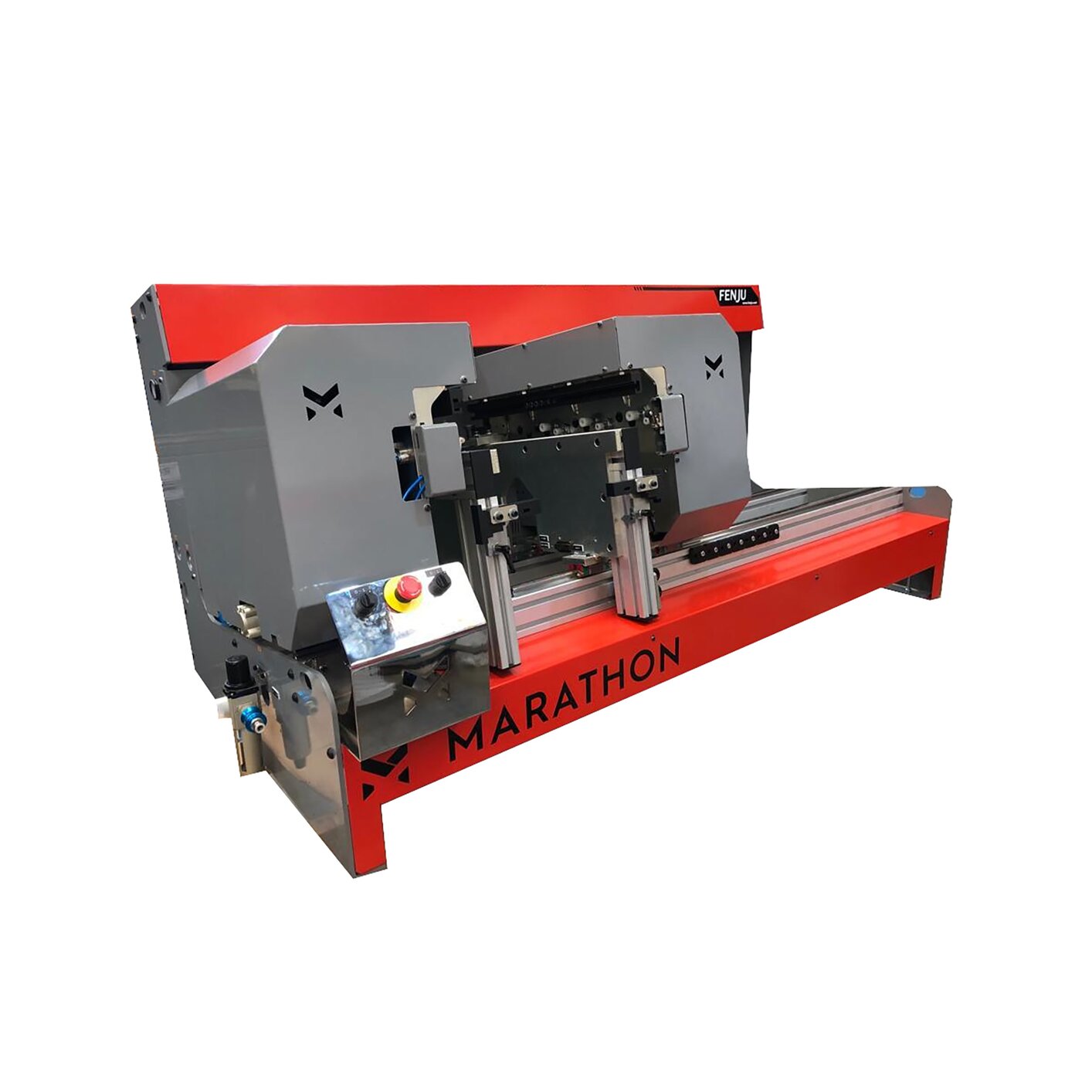

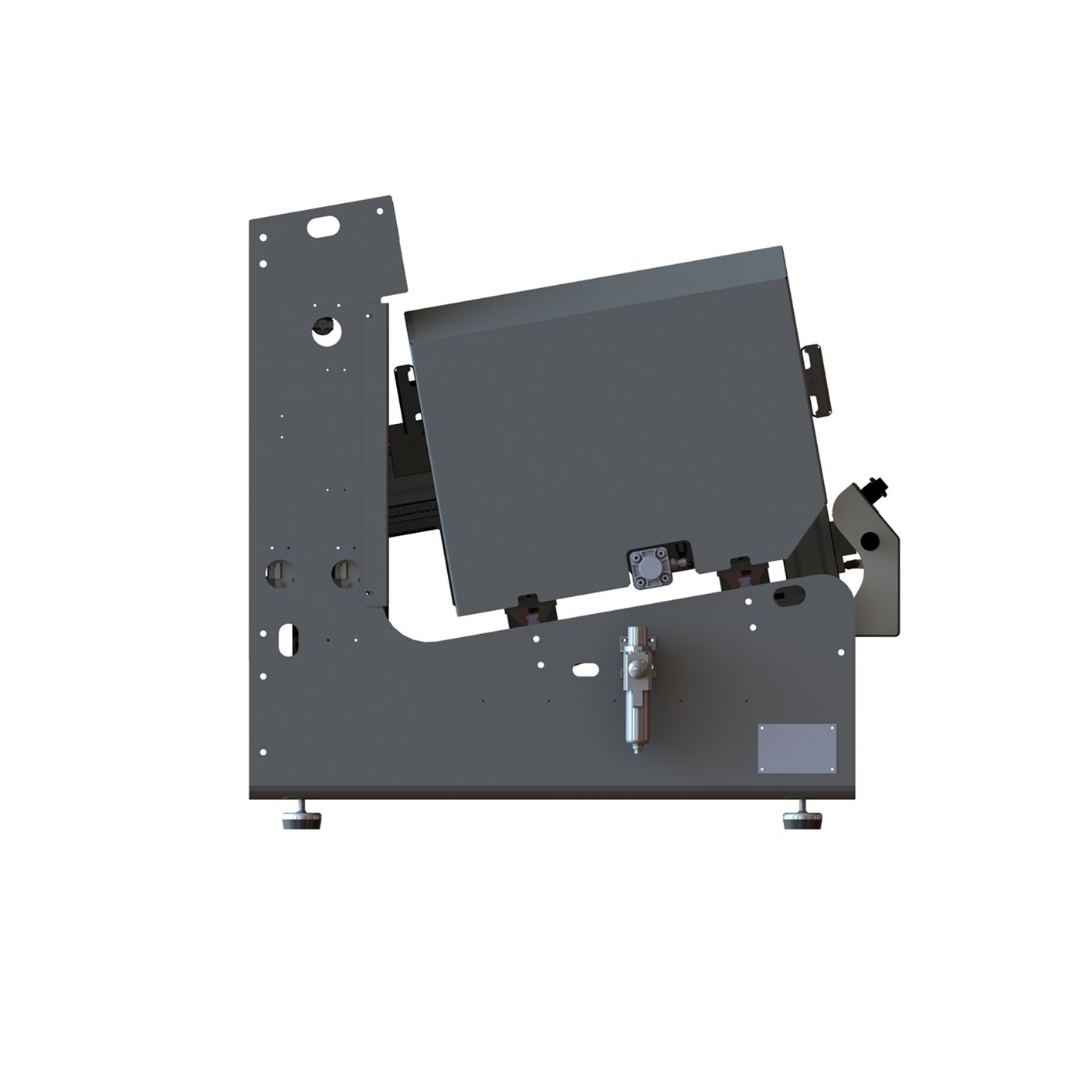

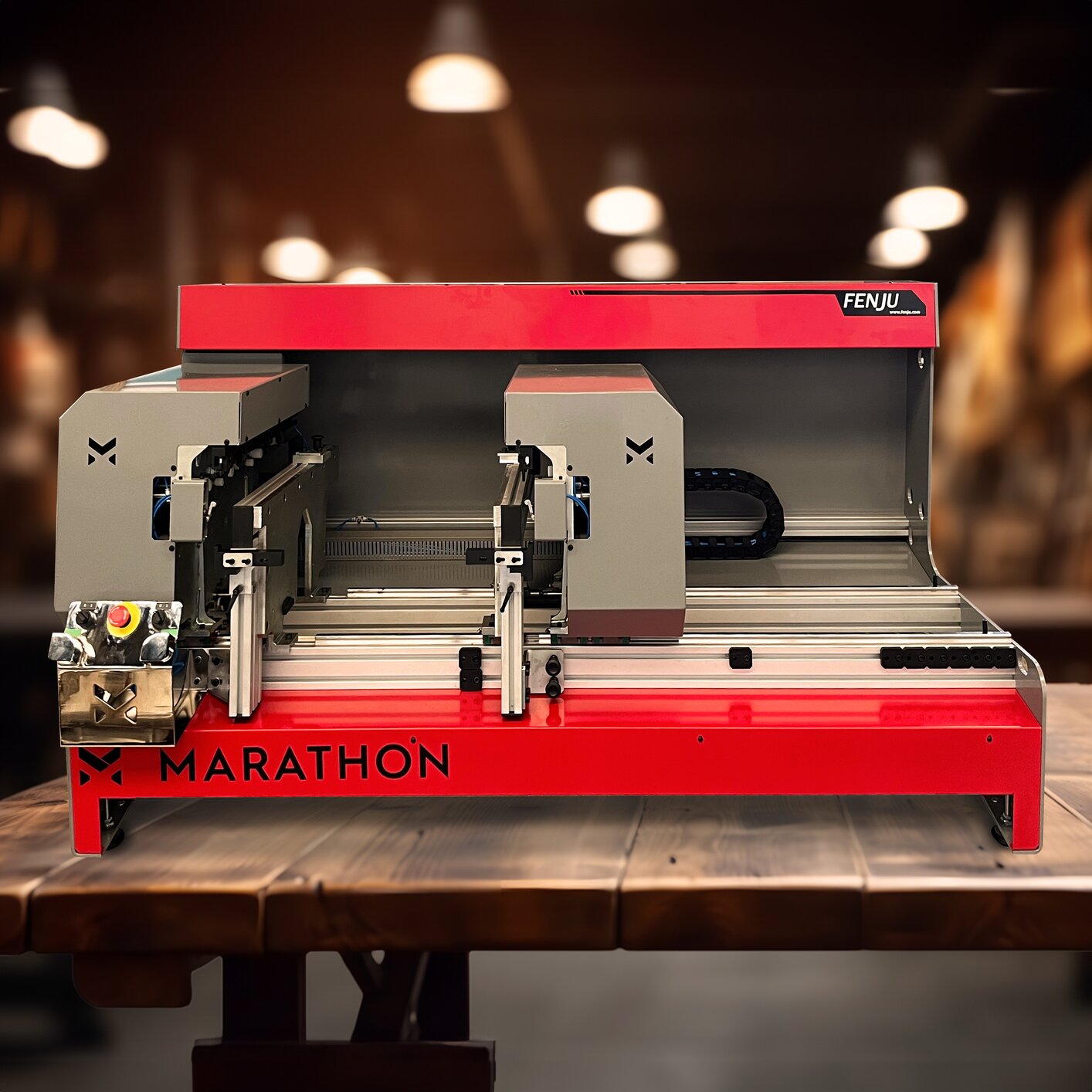

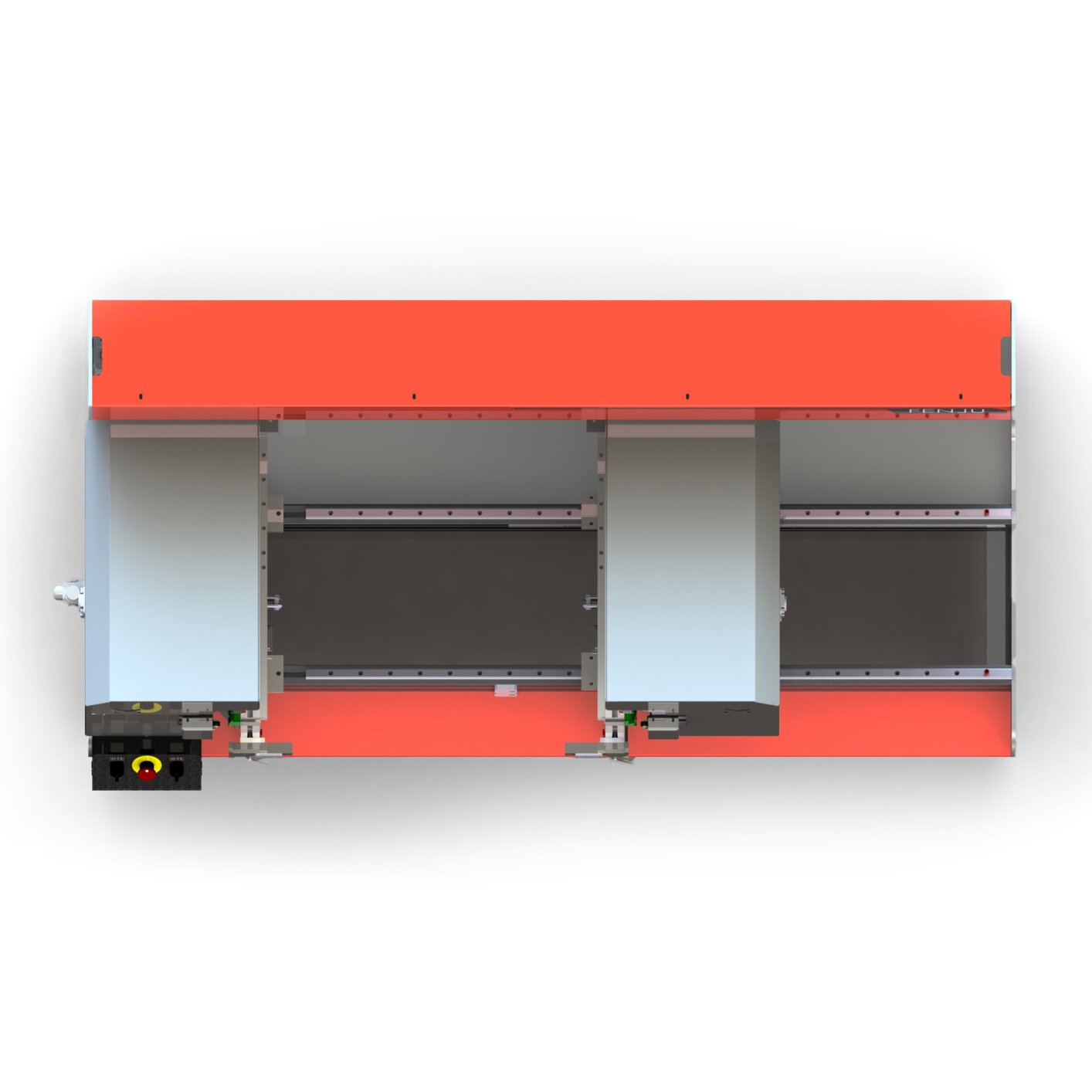

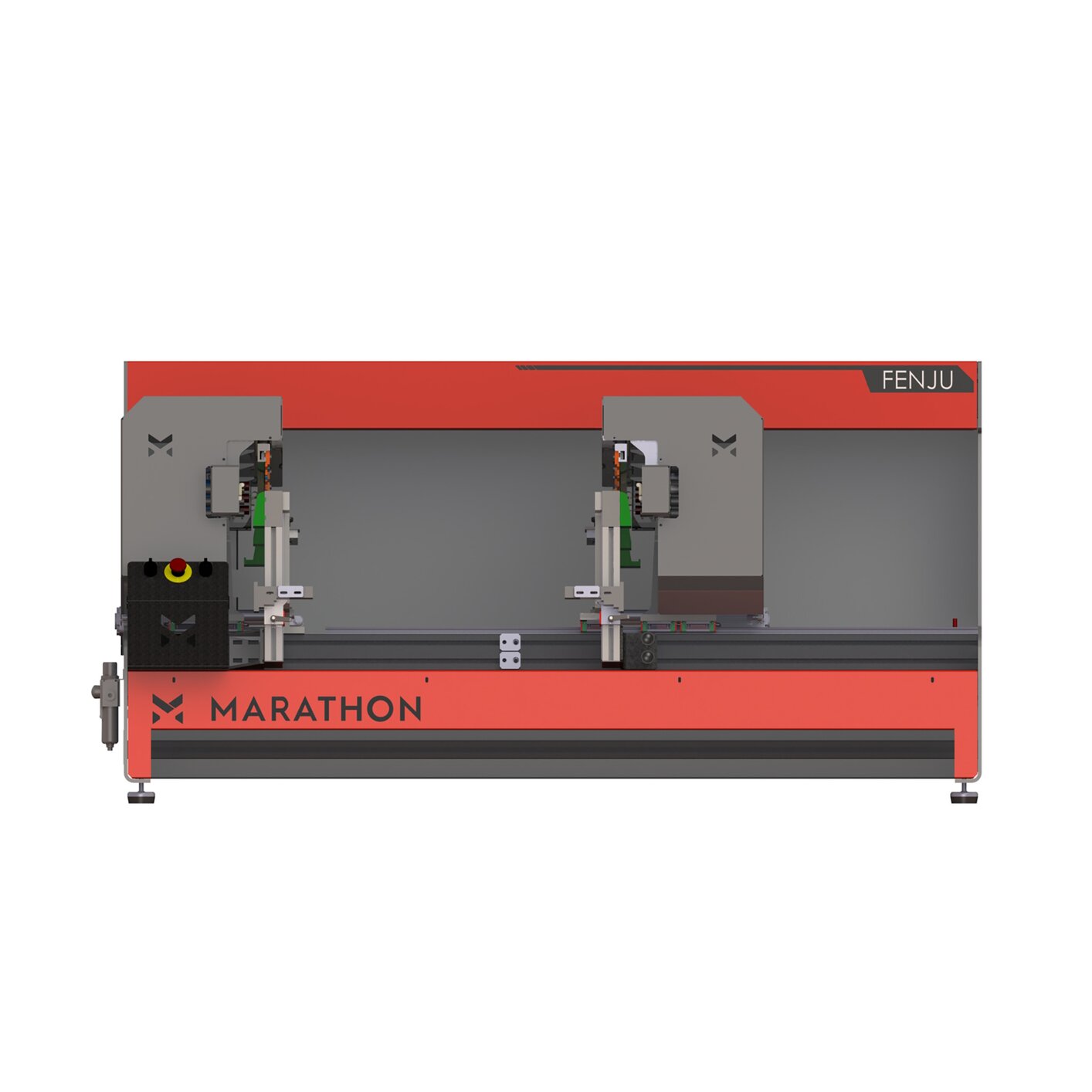

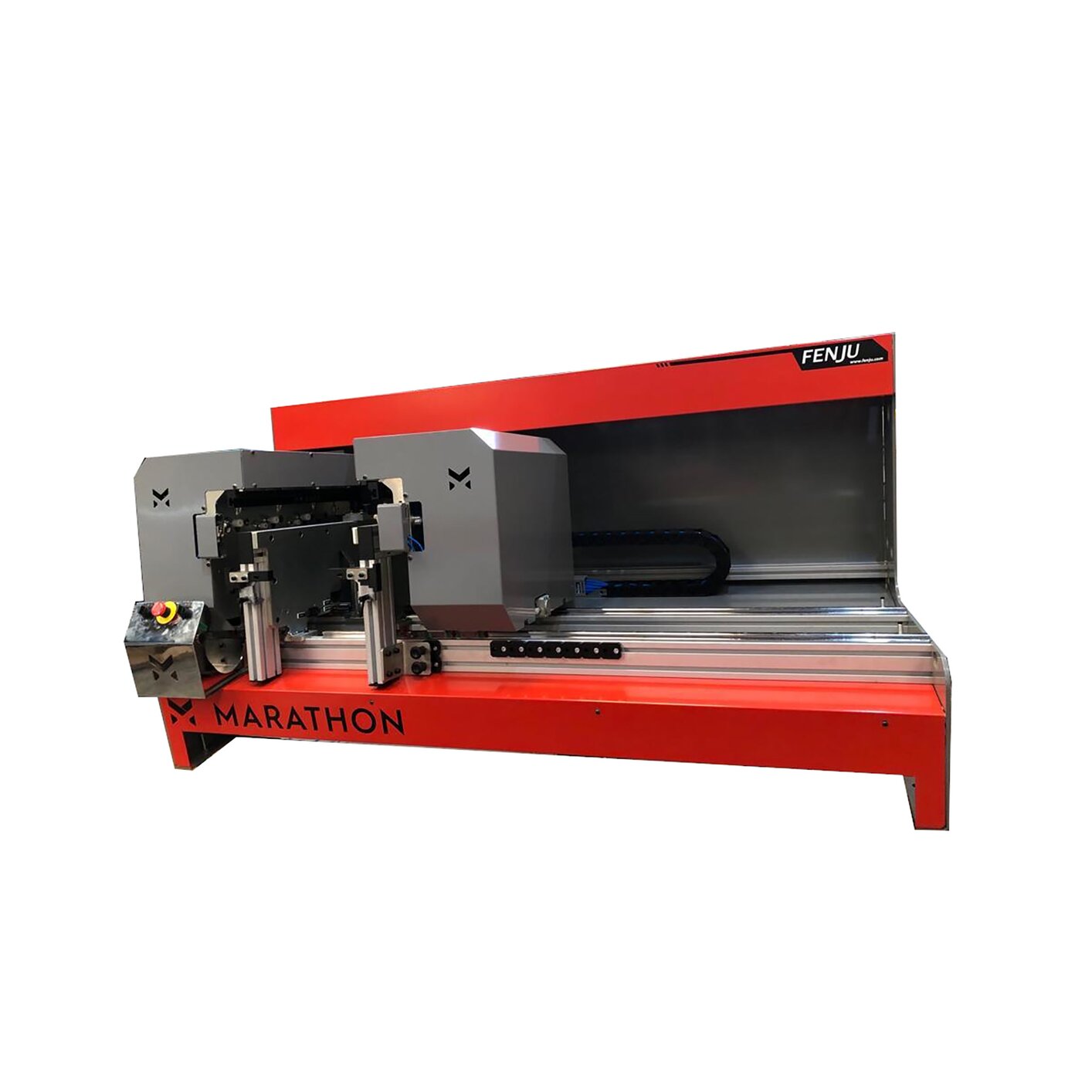

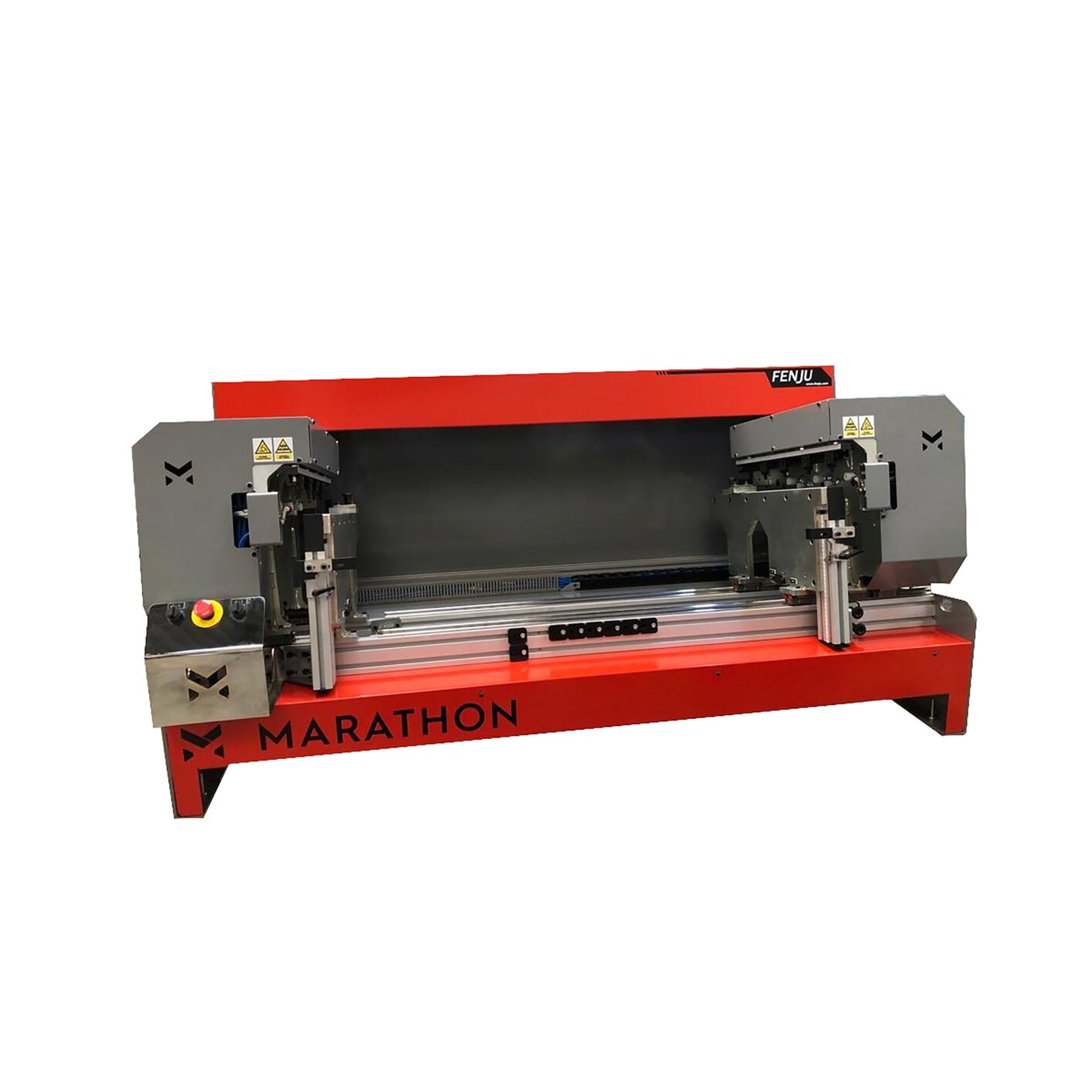

  • ECM-A: designed for clamping and punching drawer bottom

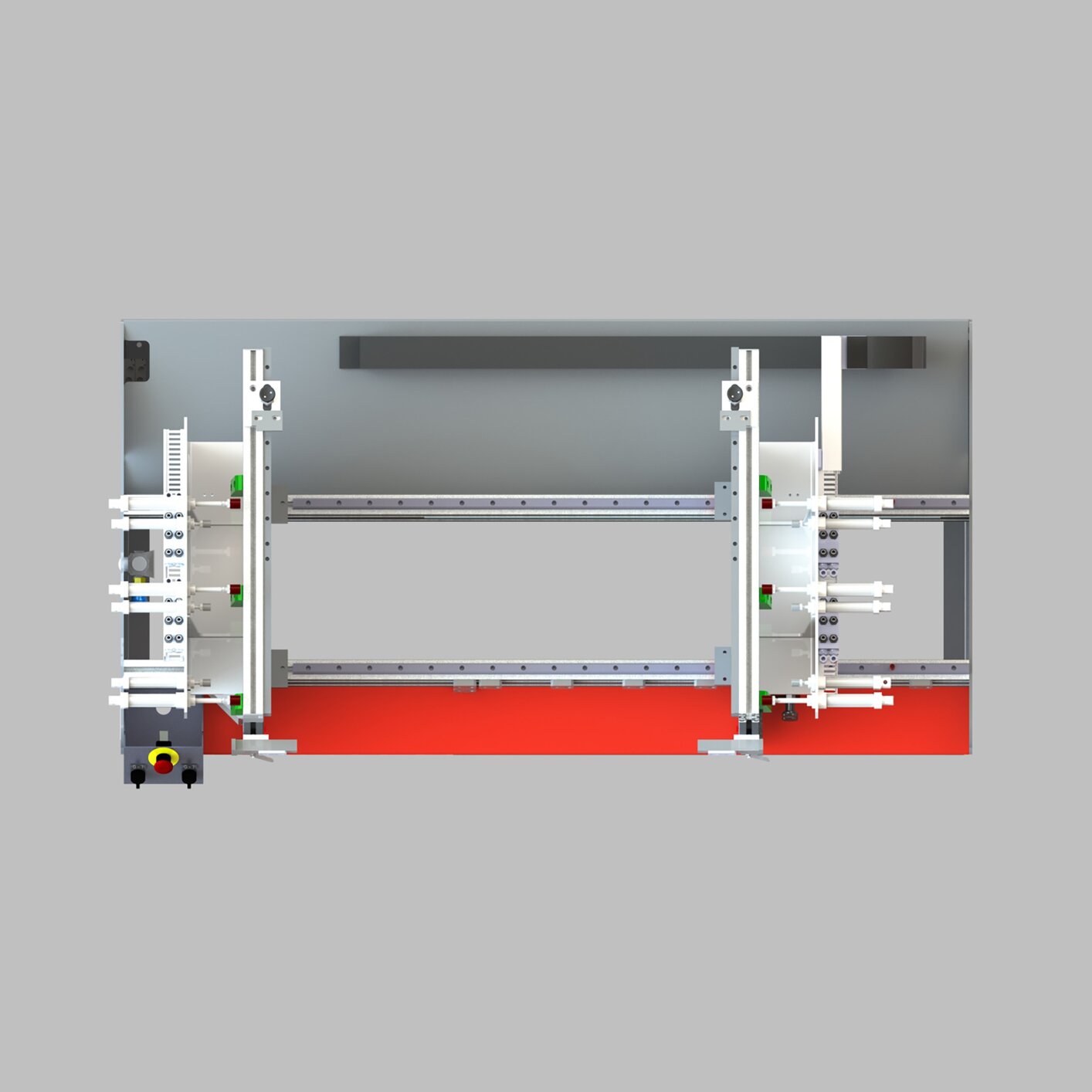

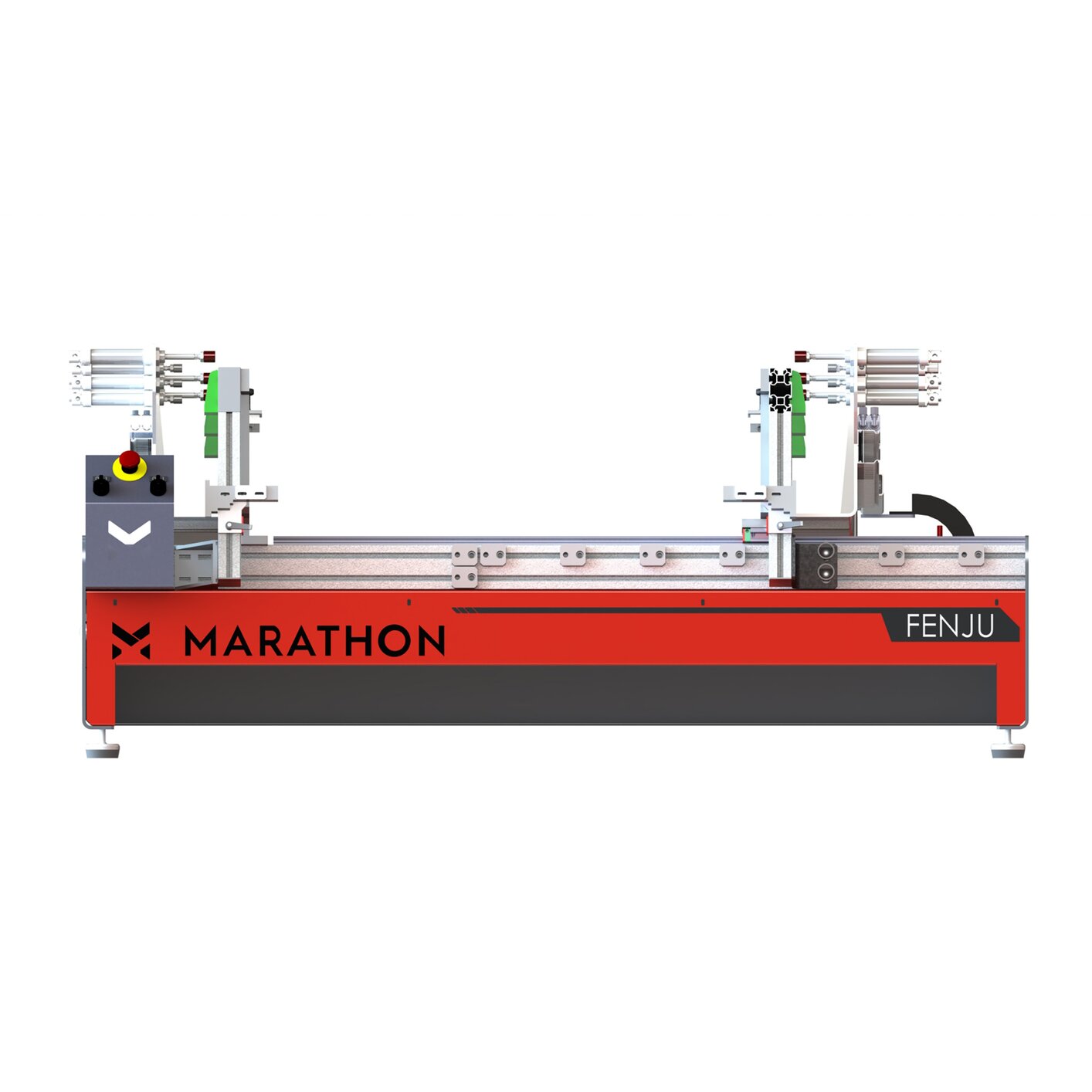

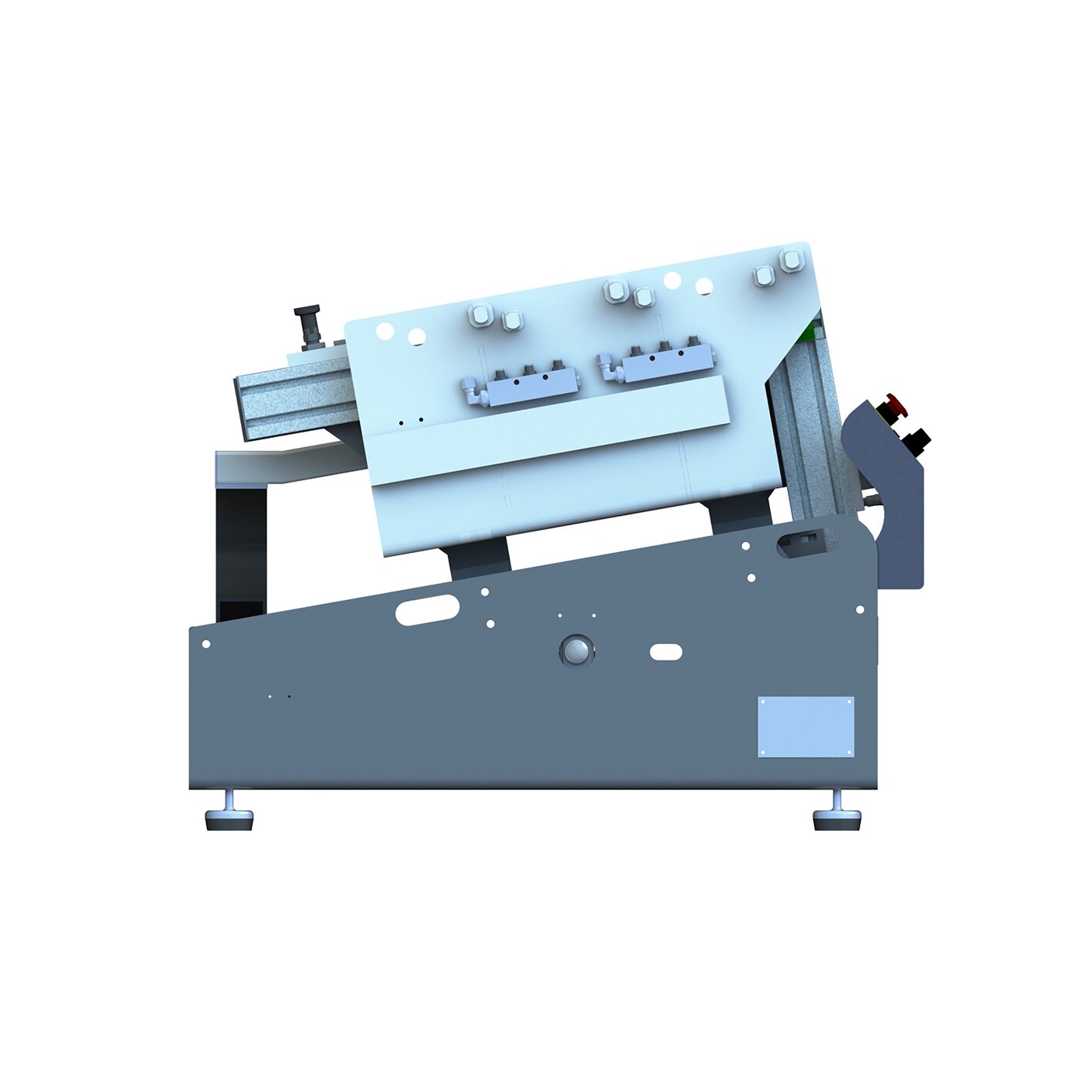

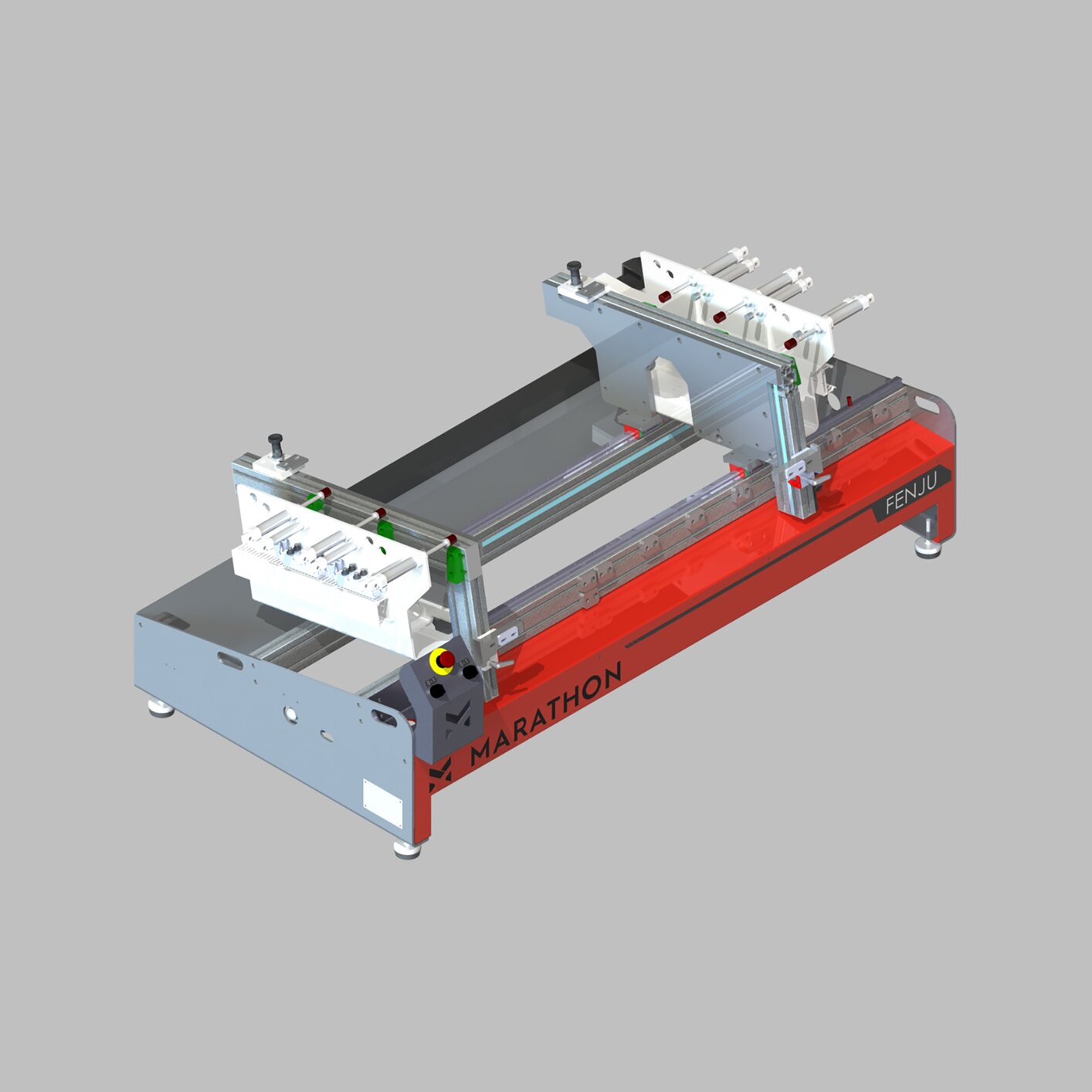

  • ECM-B: designed for clamping only, screws put in place by the operator
  • Easy operation and adjustments to quickly resize for different drawer lengths, widths and box types
  • Drawer widths: 300mm - 1200mm
  • Drawer lengths: 270 to 600mm
  • Supports all available side heights
  • Total assembled weight: ECM-A (120kg) & ECM-B (100kg)
  • Approx. cycle times: 20 seconds (ECM-A ) & 45 seconds (ECM-B)
  • Air operated only - 6bar (87psi)
  • European made
Product Specifications
Length 270mm - 600mm
Width 300mm - 1200mm
