Salice Futura Undermount Slides

By Salice

Measurement : Metric/Imperial

Length

Movement Type

Ordering information

The Salice Futura undermount slide features push-to-open and soft-close functionality options with full drawer extension for 100% access to stored items.

Related Products

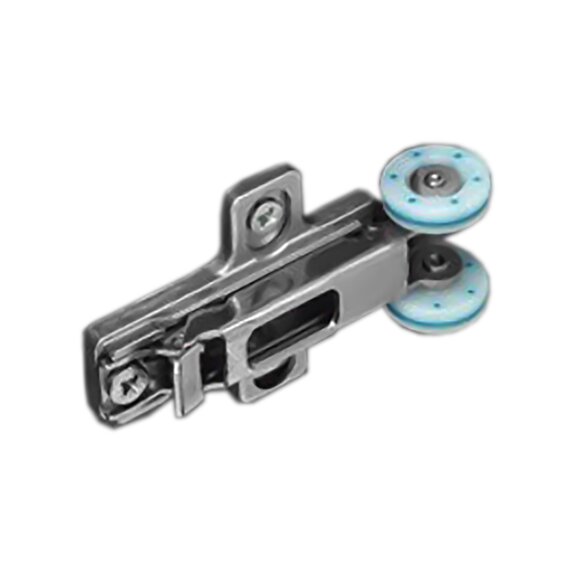

Salice Stabilizer Kit for Futura

Part #: SA6869400000202

Kit includes 2 mounting plates, 2 roller carriages and assembly instructions.

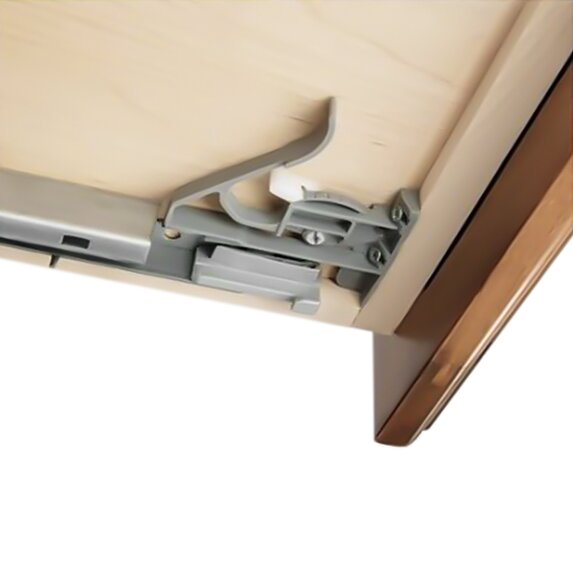

Salice Standard Locking Device for Salice Undermount Slides

Part #: SA710.610

The standard locking device for Salice undermount slides secures the drawer box to the extending arm of the slide and offers a height adjustment of +/- 2.5mm.

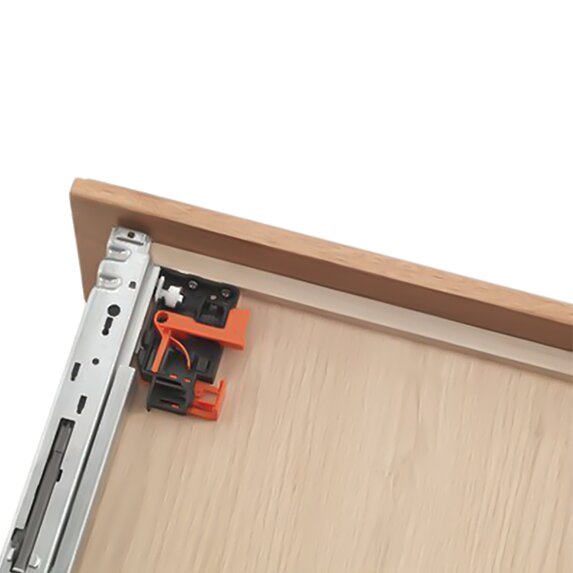

Salice 6-Way Adjustable Locking Device for Futura Undermount Slides

Part #: SA750.010

The 6-way adjustable locking device has height, depth and side adjustments to improve drawer face placement.

Back to the top

Product Details

The Salice Futura undermount slide features push-to-open and soft-close functionality options with full drawer extension for 100% access to stored items.

Brand
Salice

Product Description

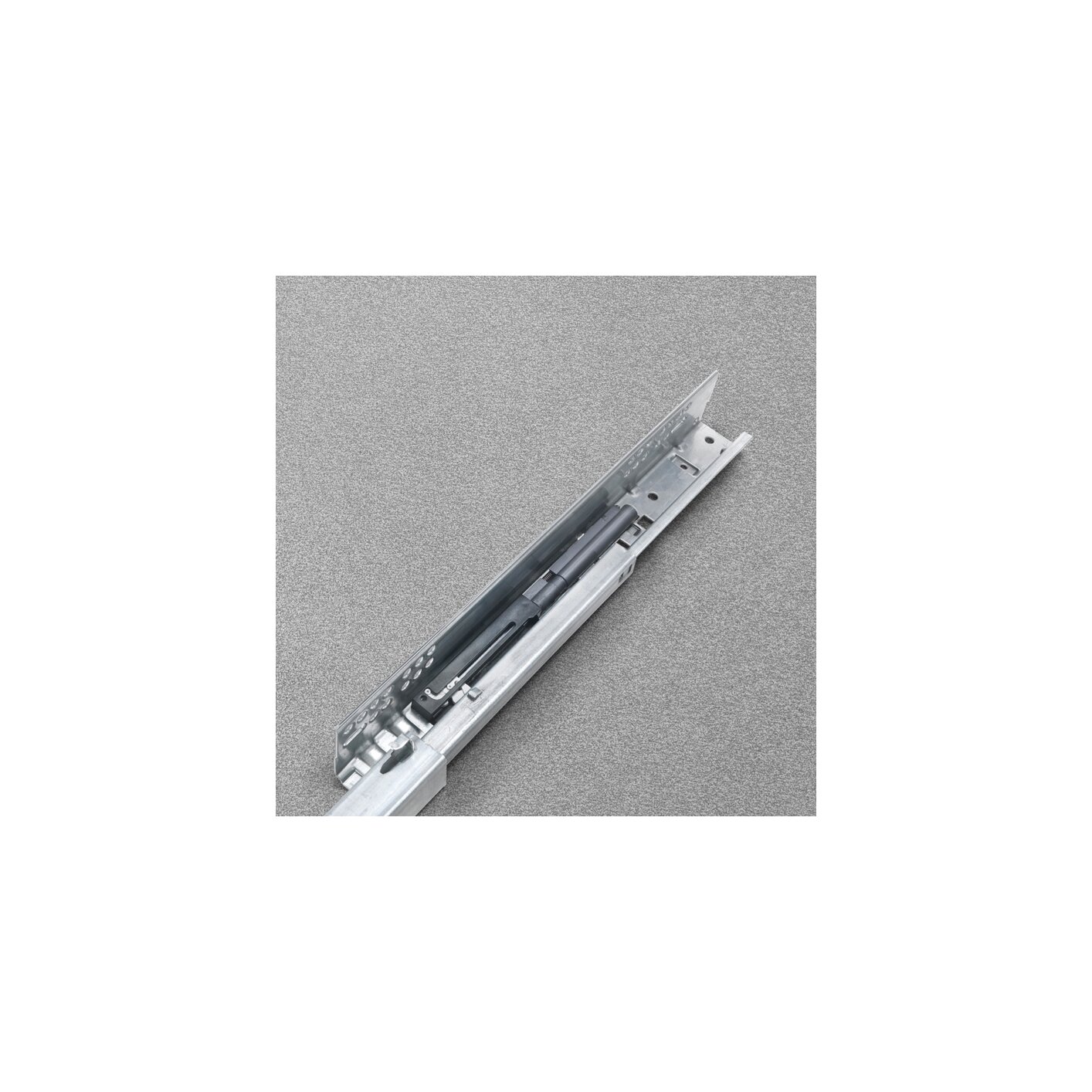

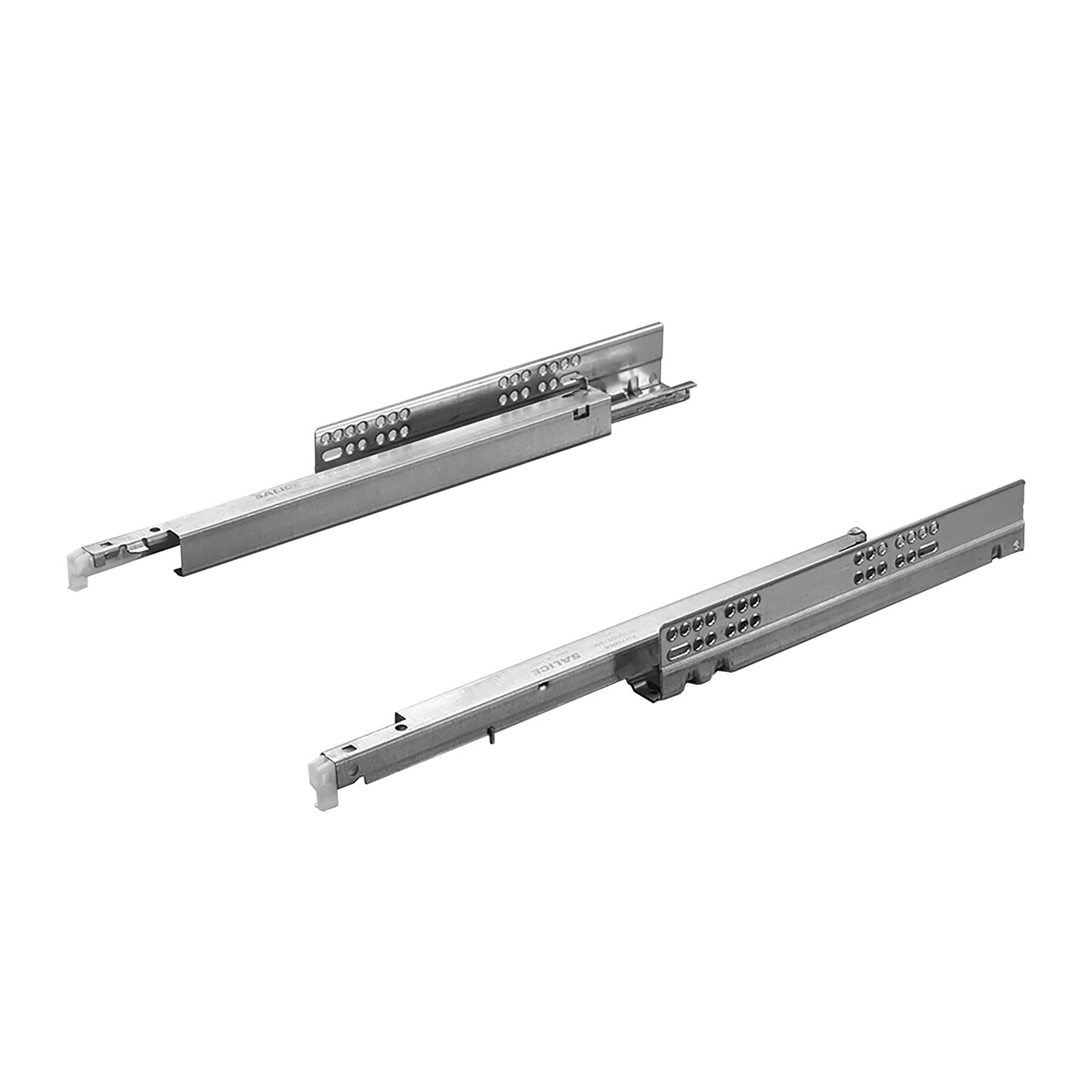

Full extension undermount slide system fixed to the drawer by locking clip.

Two opening system options:

Push, the new opening system for handle-less drawers, is fully integrated in the slide. A slight pressure on the drawer front is sufficient for the drawer to self-open.
SMOVE soft-close action is fully integrated into the slide, providing a smooth deceleration during the closing action of the drawer.

Product Advantages

Made in Italy
Dynamic load capacity 34kg (75lbs)
Safety system that prevents the drawers from turning over.
Drawer height adjustment (+2,5 mm).
The drawer is maintained parallel with the cabinet side during opening.
Compatible with ART. 6157.
Finish: bright zinc-plated.
Seven lengths available

Resources

Product Sheet Product Technical Specifications Slide Drilling and Fixing Instructions Drawer Assembly Instructions Drawer Removal Instructions Line Art

Specifications

Load Capacity:

34kg (75lbs)

Mounting Type:

Screw-In

Slide Extension Type:

Full Extension

Slide Type:

Undermount
