Salice M50+ Coplanar Sliding Door System for Large Cabinets

By Salice
Measurement : Metric/Imperial
Cabinet Width (Range)
Door Width (Range)
Door Height (Max.)
Rail Length
Ordering information

Salice M50+ Coplanar Sliding Door System has decelerated open and close mechanisms and sit perfectly flush when fully closed.

Back to the top

Product Details

Salice M50+ Coplanar Sliding Door System has decelerated open and close mechanisms and sit perfectly flush when fully closed.

Brand
Salice
  • Product Description

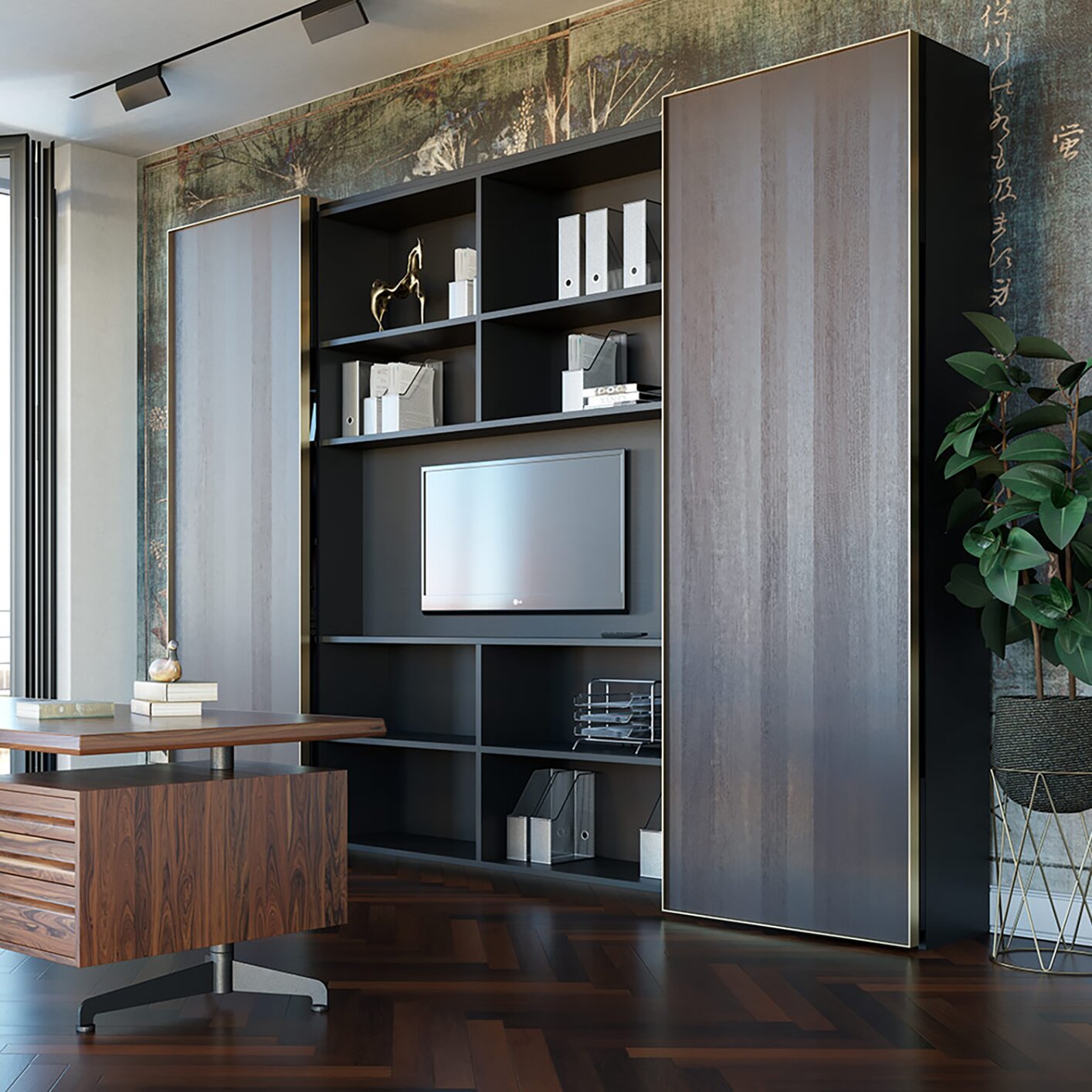

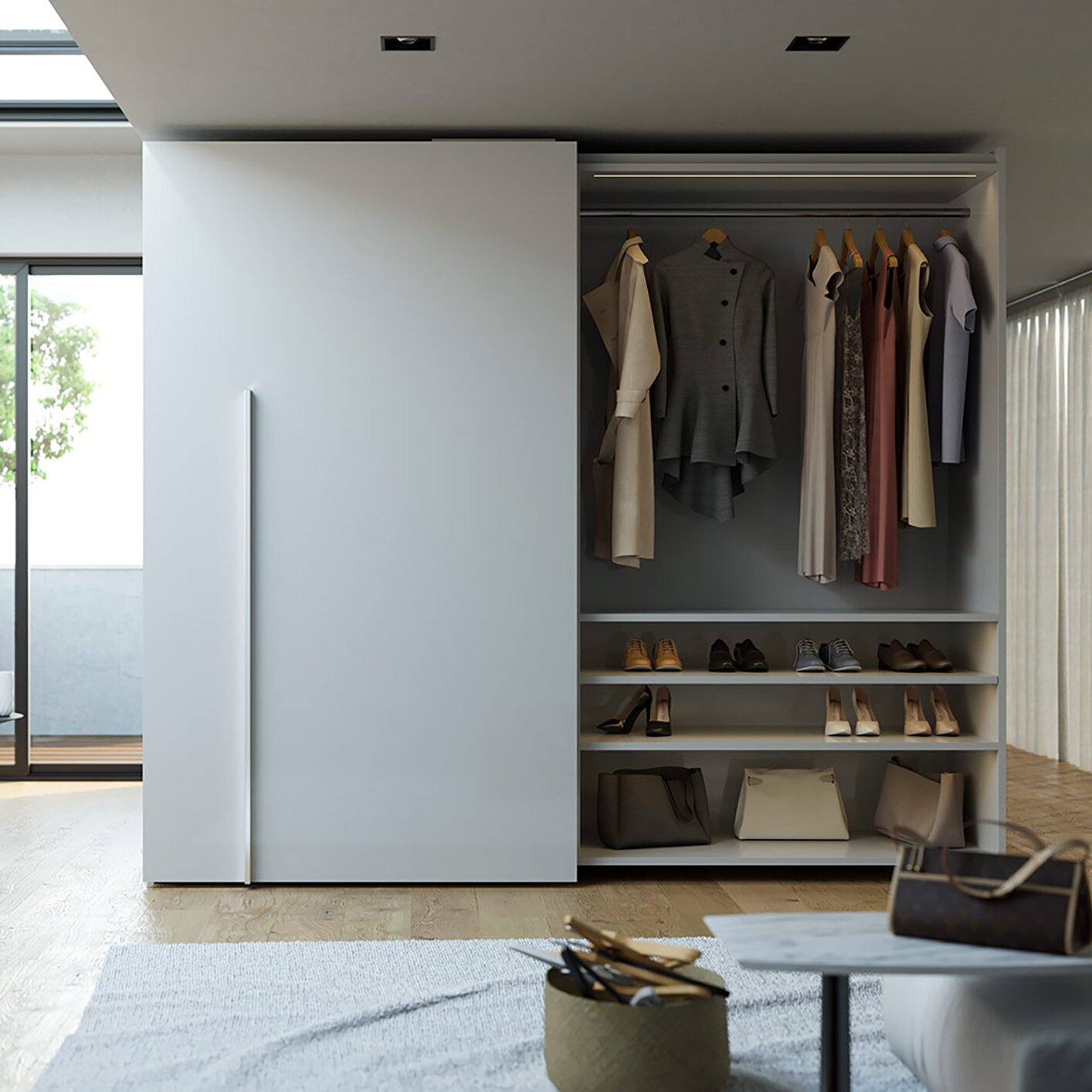

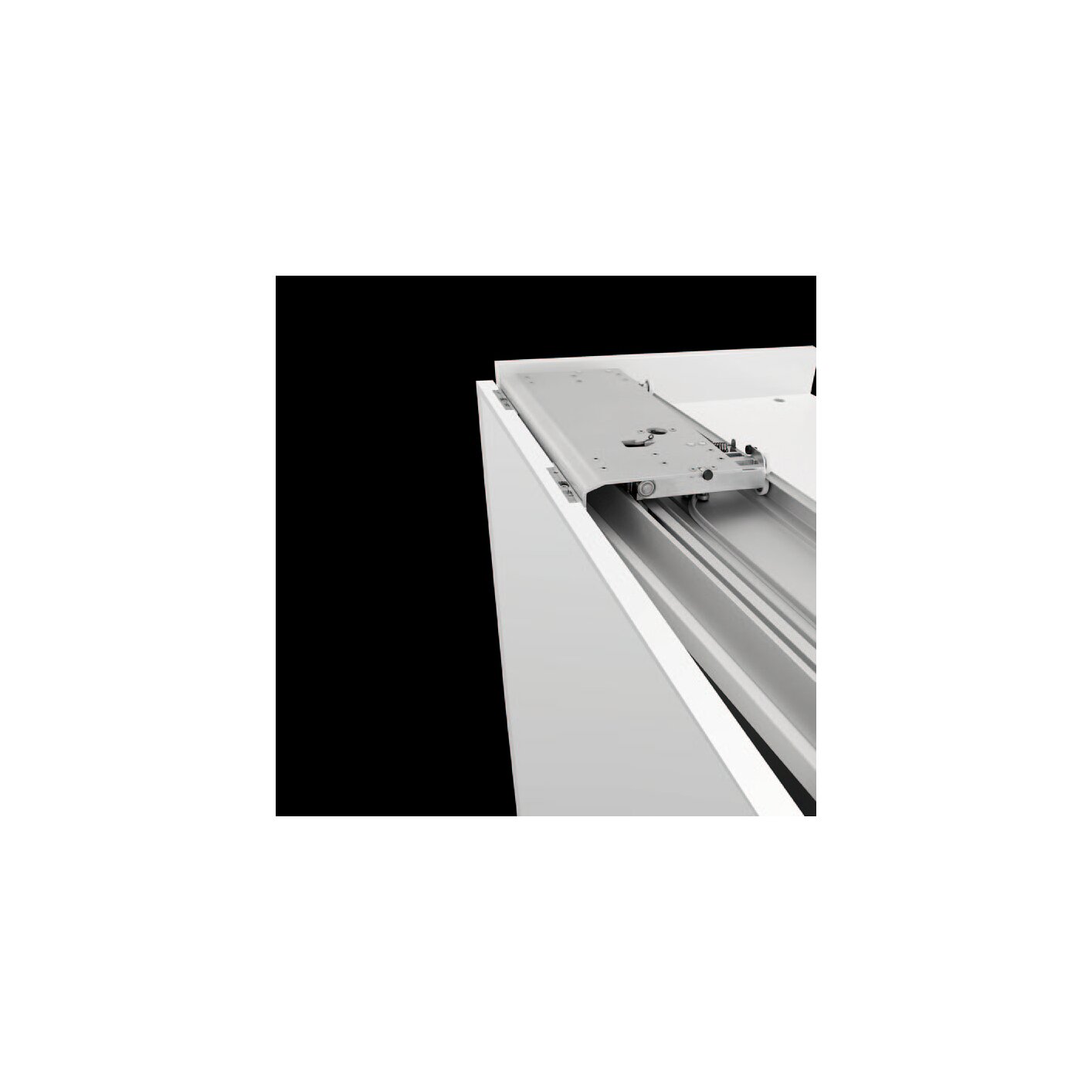

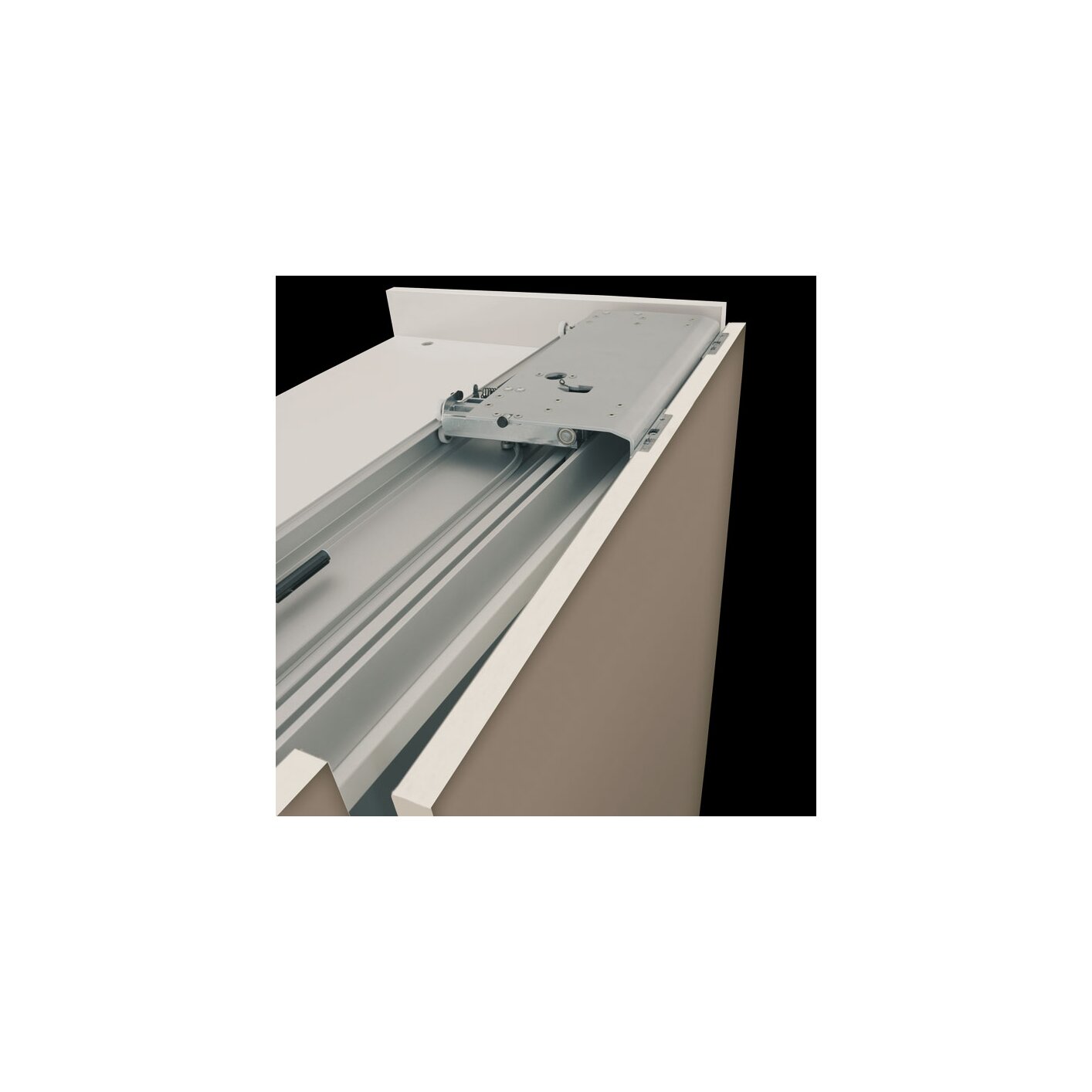

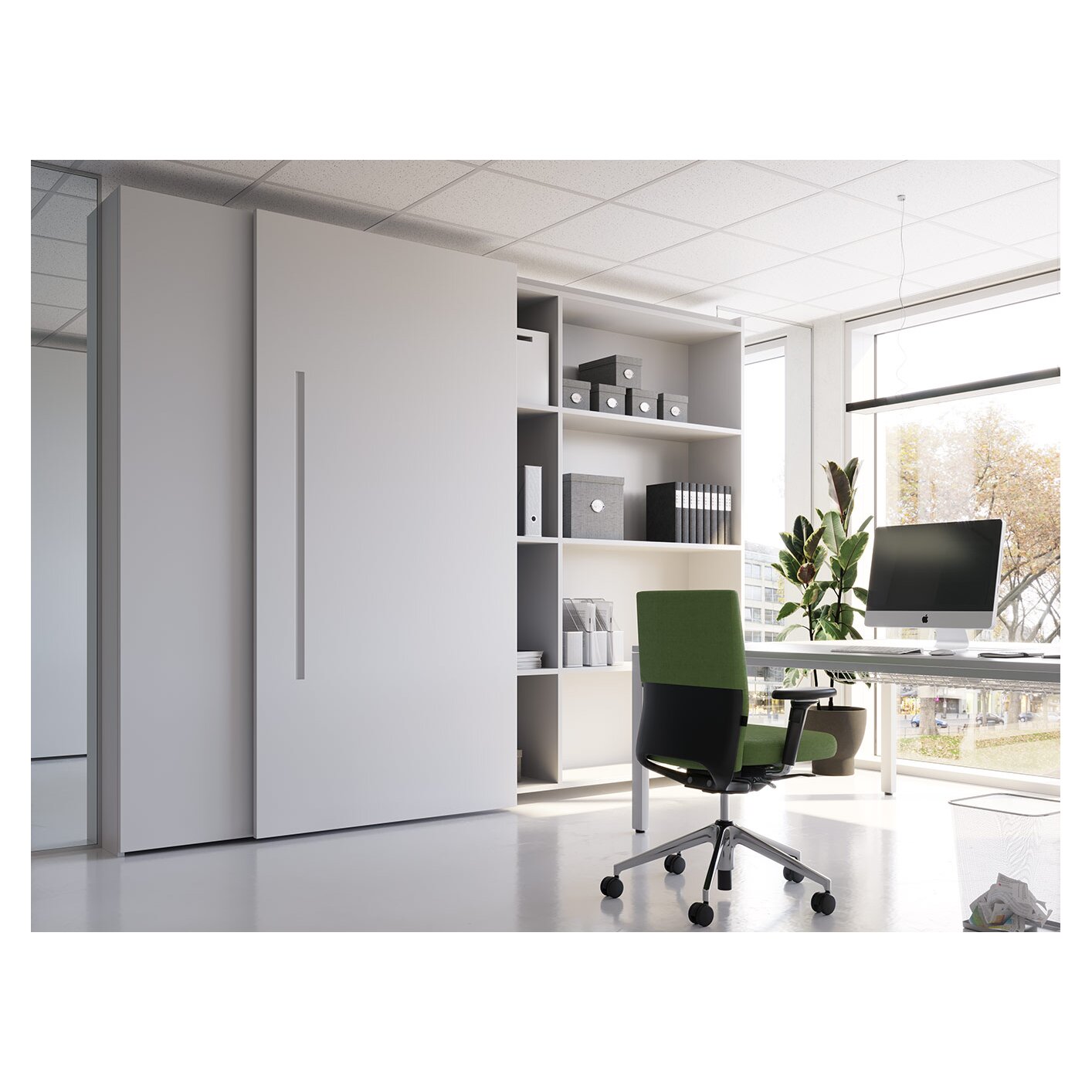

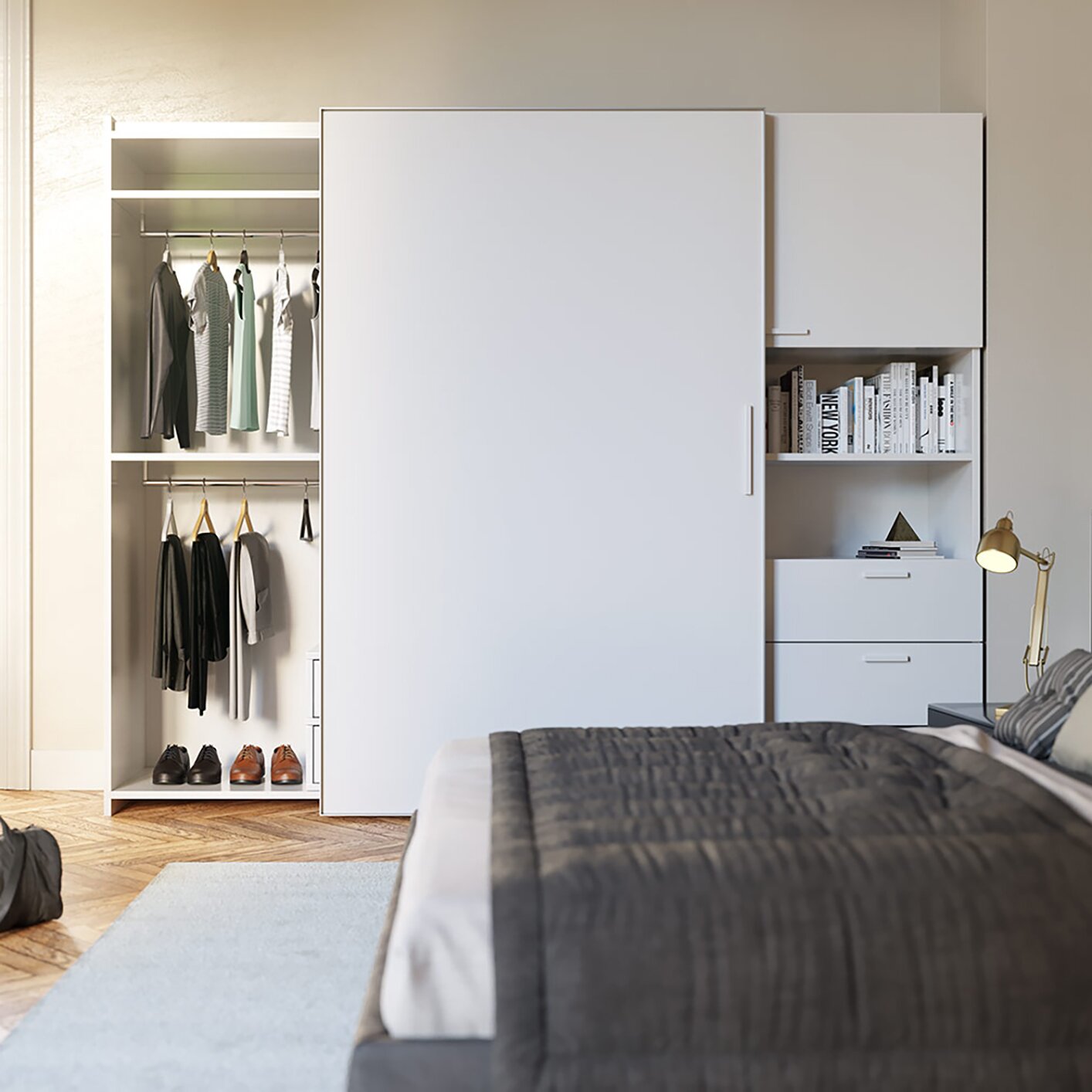

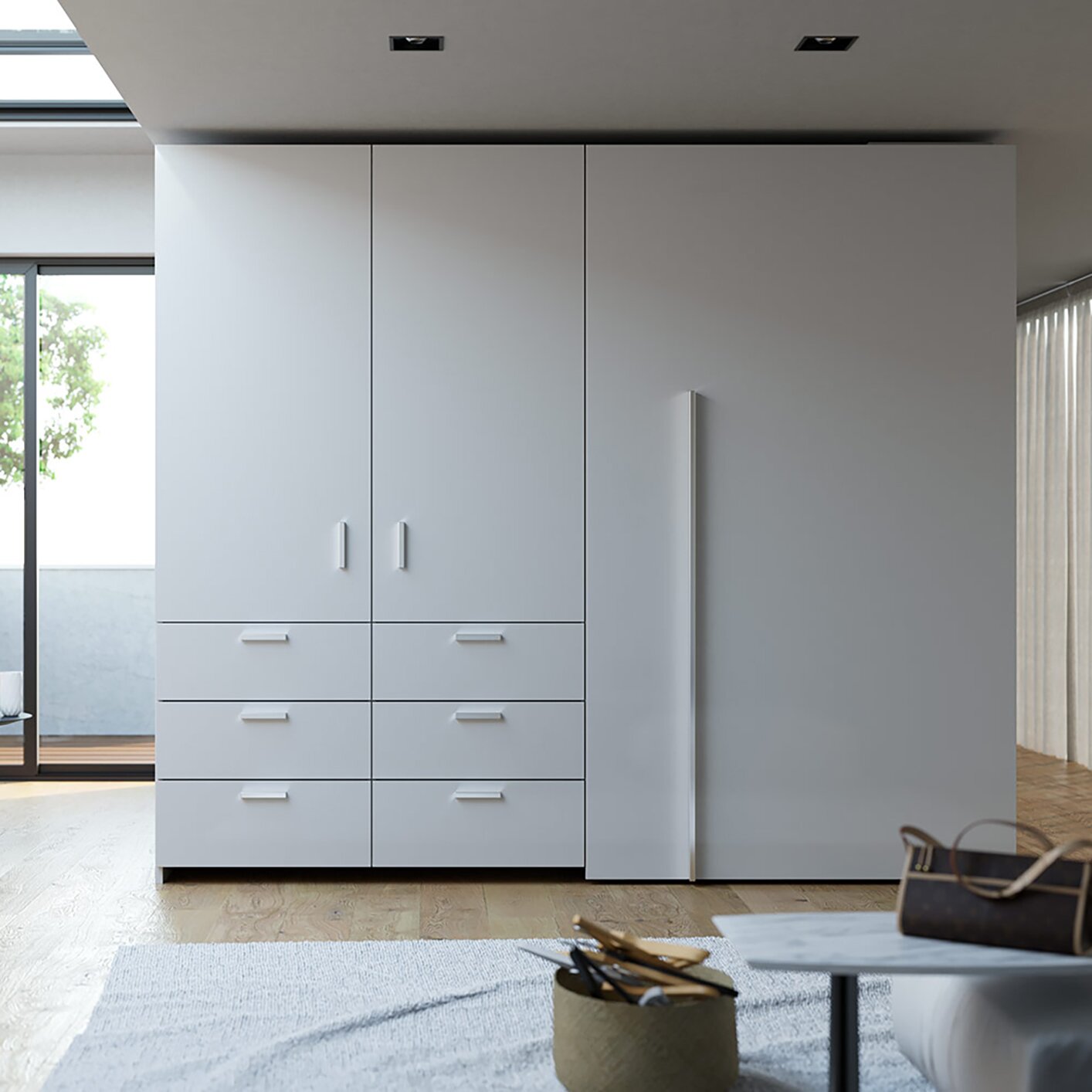

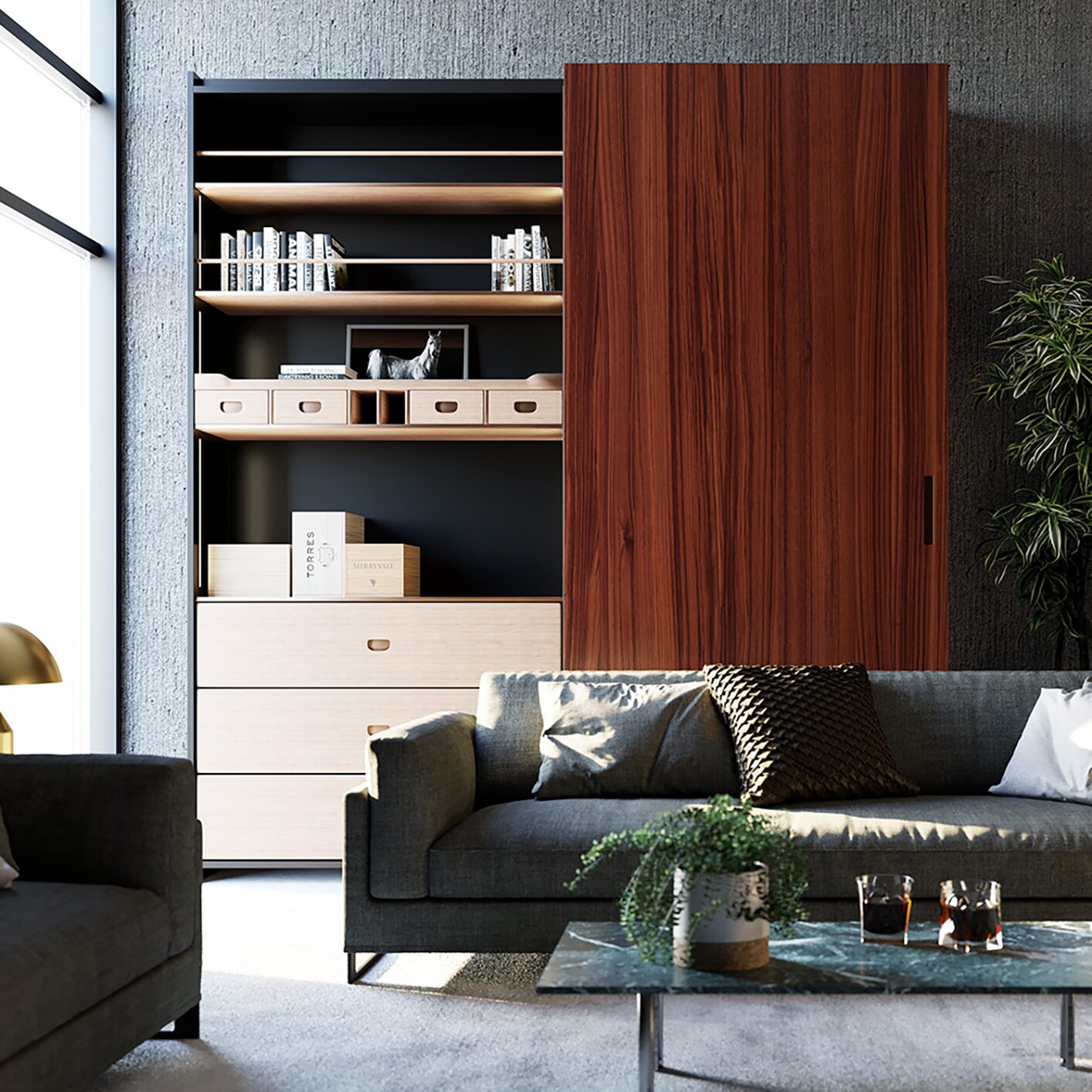

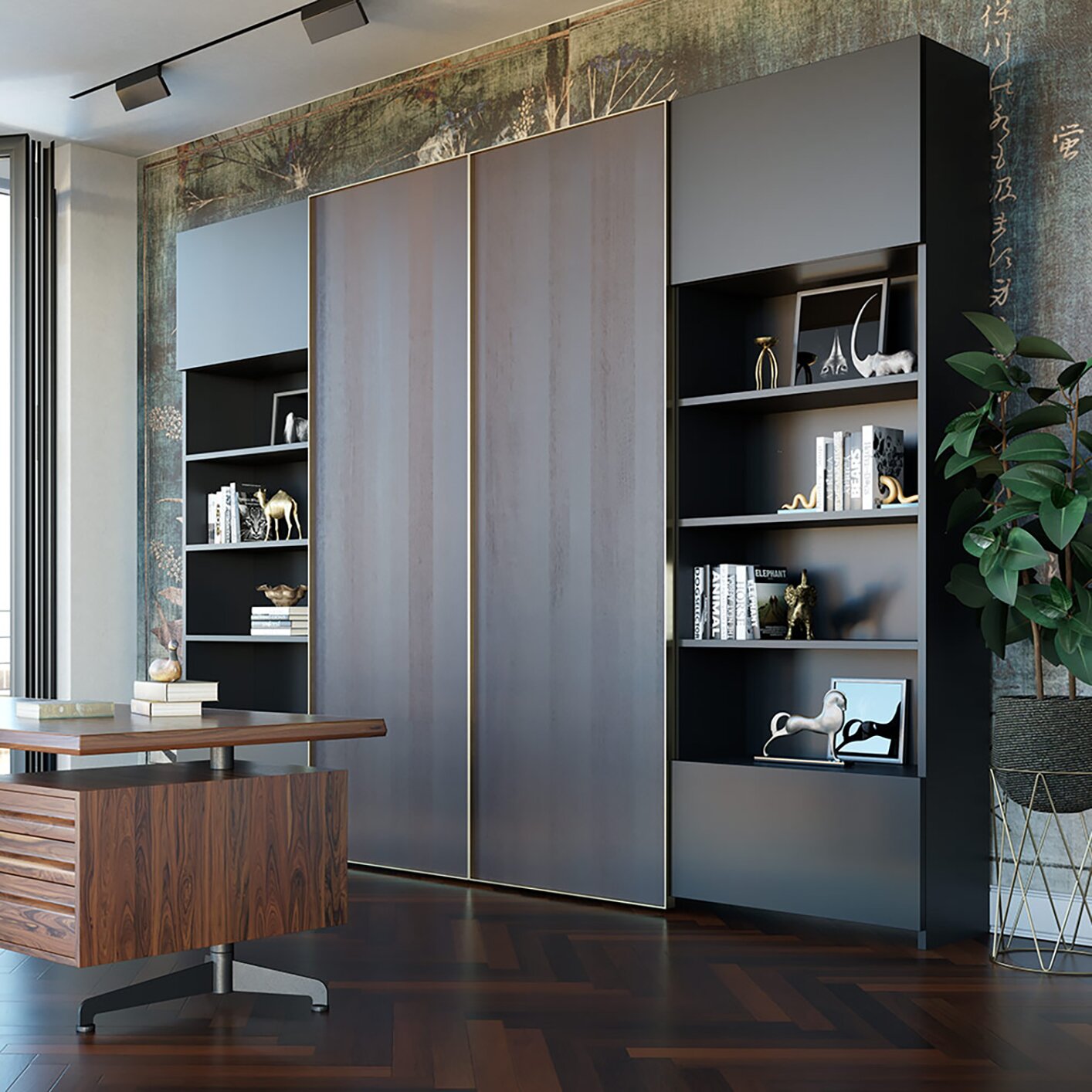

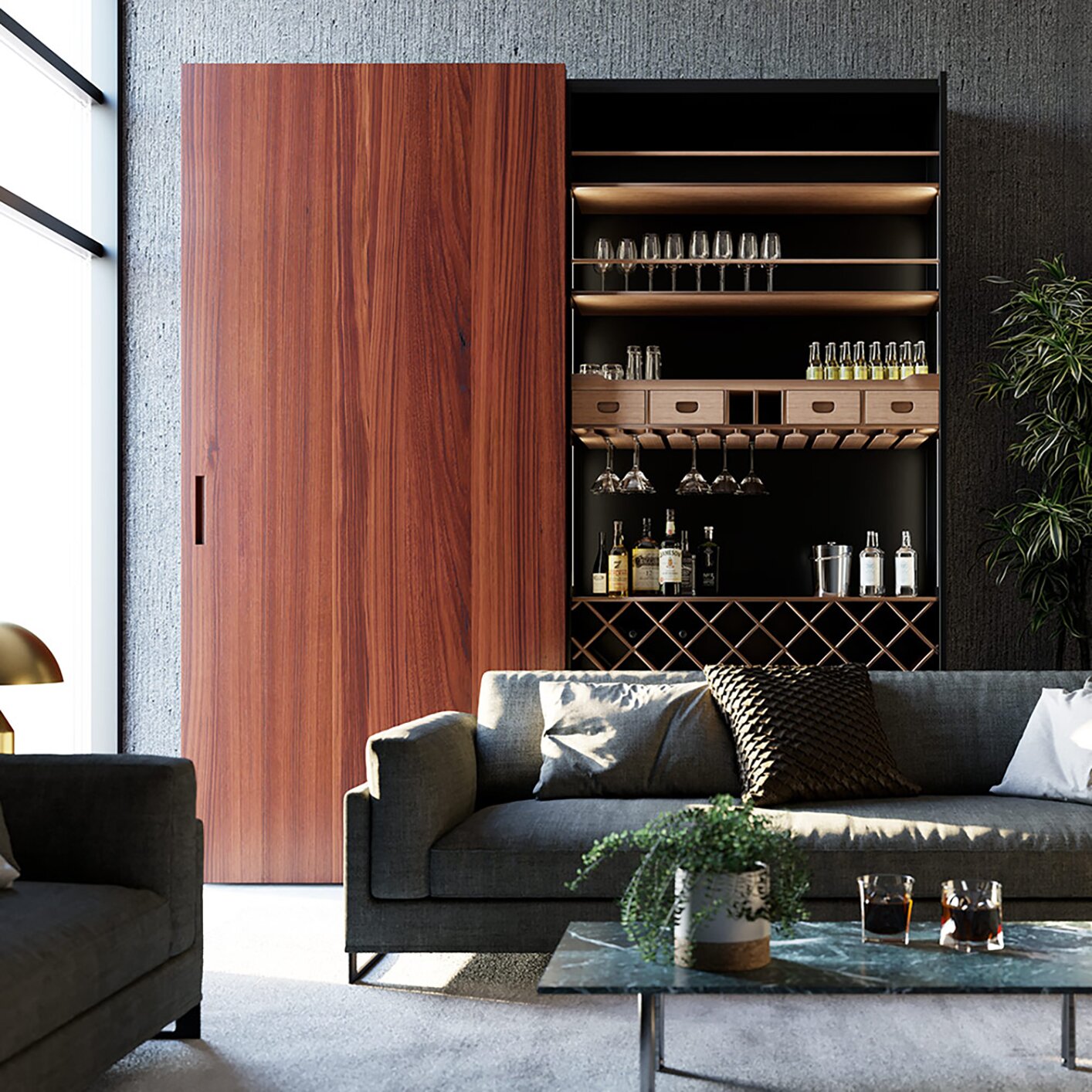

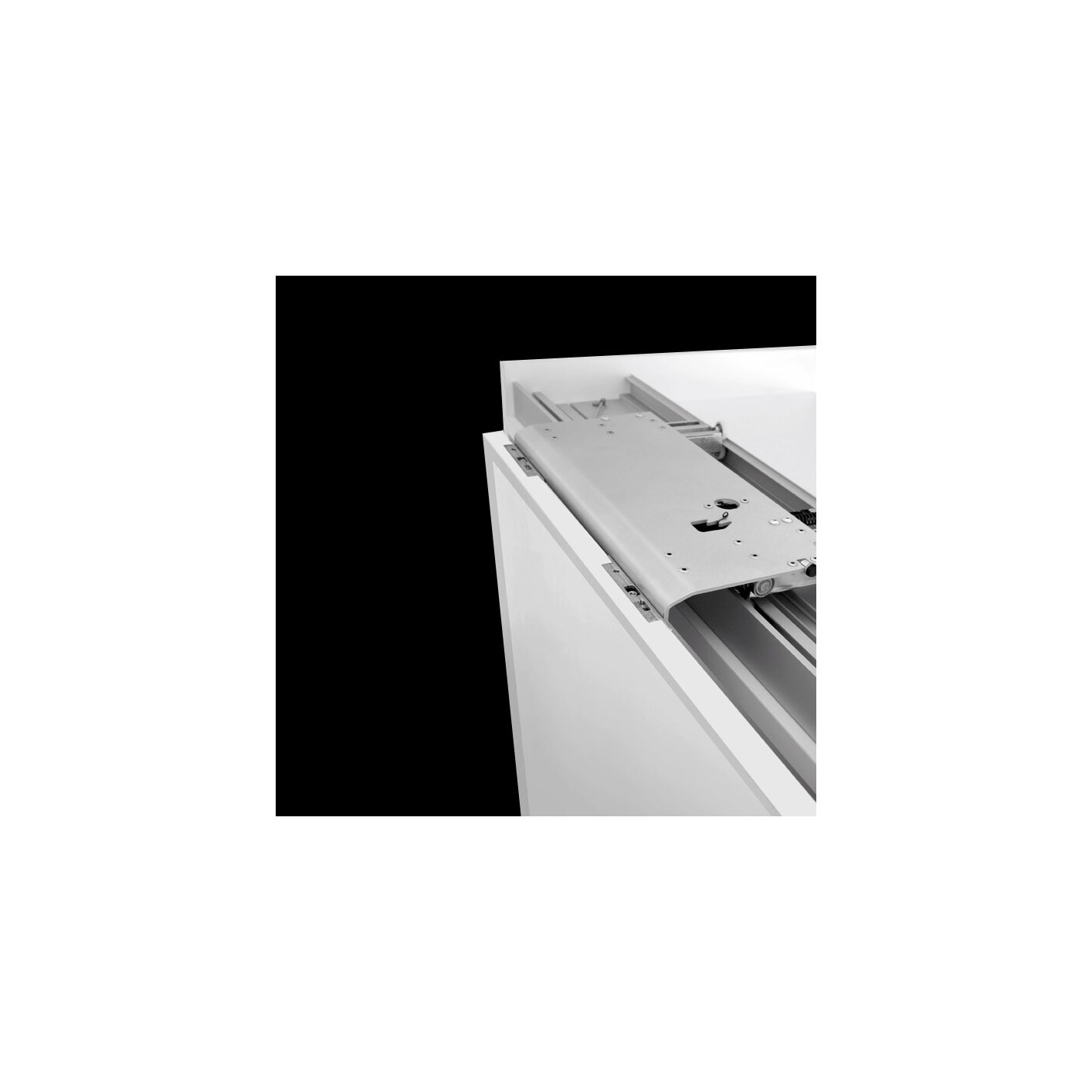

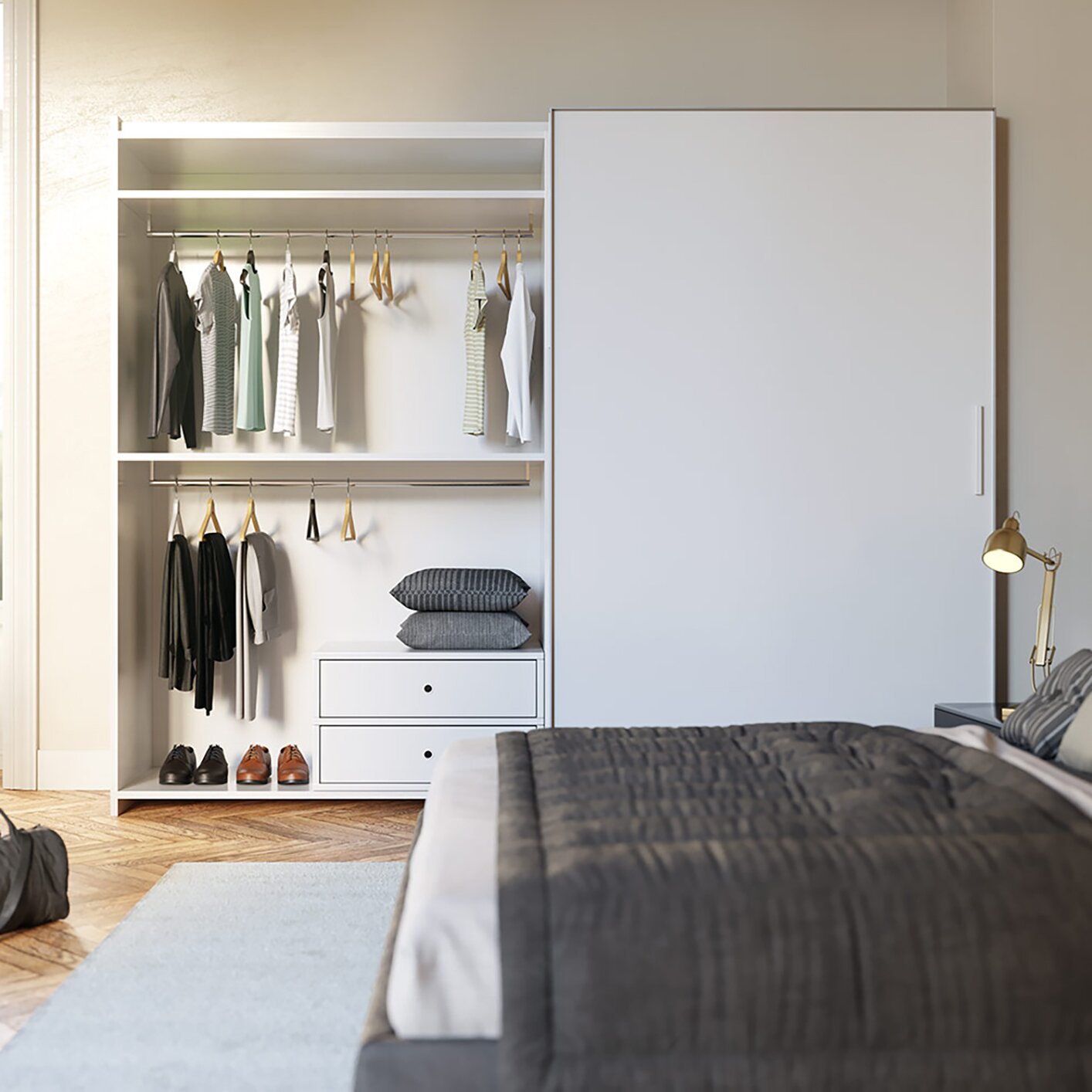

    The Bortoluzzi Slider M50+ is a sliding door mechanism ideal for large pantry cabinets and wardrobe or closet doors. With 50kg (110lbs) of load capacity per door, it can support medium to large sized doors, while maintaining the Bortoluzzi trademark smooth and silent movement. The main bearing track and mechanism is installed on top of the cabinet with a secondary guiding track on the bottom. Coplanar movement means the open door passes in front of the closed door, while returning to a closed position flush with the opposite door. Each door is equipped with a system that decelerates both the opening and closing, so that only a small amount of force is required to begin either phase.

  • Product Advantages
    • Ideal for pantry, wardrobes and closets
    • Smooth and silent door movement
    • Decelarated open and close
    • Up to 50 kg (110lbs) per door
    • Lifetime warranty
  • Important Information

    During your design phase, please contact us for technical support on any Bortoluzzi Sliding Door System. We will ensure that you have full technical support to ensure understanding of the product. All systems will be specified by Salice to your project mesurements and require sign off before ordering.

  • Resources
    Product Information Product Information Line Art

Specifications

Salice M50+ Coplanar Sliding Door System for Large Cabinets
Adjustable:
Yes
Application:
Large Cabinets, Pantries, Closets, Wardrobes, Furniture
Door Height (Maximum):
3000 mm
Door Thickness:
Min. 19mm (3/4").
Door Thickness Including Handle:
45mm (1-3/4") Recessed Adjusters. 40mm (1-9/16") Screw-On Adjusters.
Door Type:
MDF, Wood
Finish:
Satin Aluminum
Material:
Aluminum
Number of Doors:
2
Opening Direction:
Both Left and Right Opening
Operation:
Coplanar
Soft-Close Type:
Decelerated Open and Close
Weight Capacity Per Door:
50 kg (110 lbs)

Limited Lifetime Warranty

In the event that any product Marathon sells is found to be defective in either workmanship or materials, such products shall be replaced by Marathon, free of charge, for as long as the original consumer purchaser owns the products.

If a product is no longer available, Marathon will replace the defective hardware with a current offering.

  • Not covered by our warranty:

    Incorrect installation or any consequential and/or incidental damages incurred as a result of incorrect installation.

    Hardware that has been exposed to excessive loads, abused, or used in any manner other than its intended purpose.

    Removal of defective hardware, delivery costs, or installation of new hardware.
