Salice Smove Adapter for Face Frame - Single, Grey

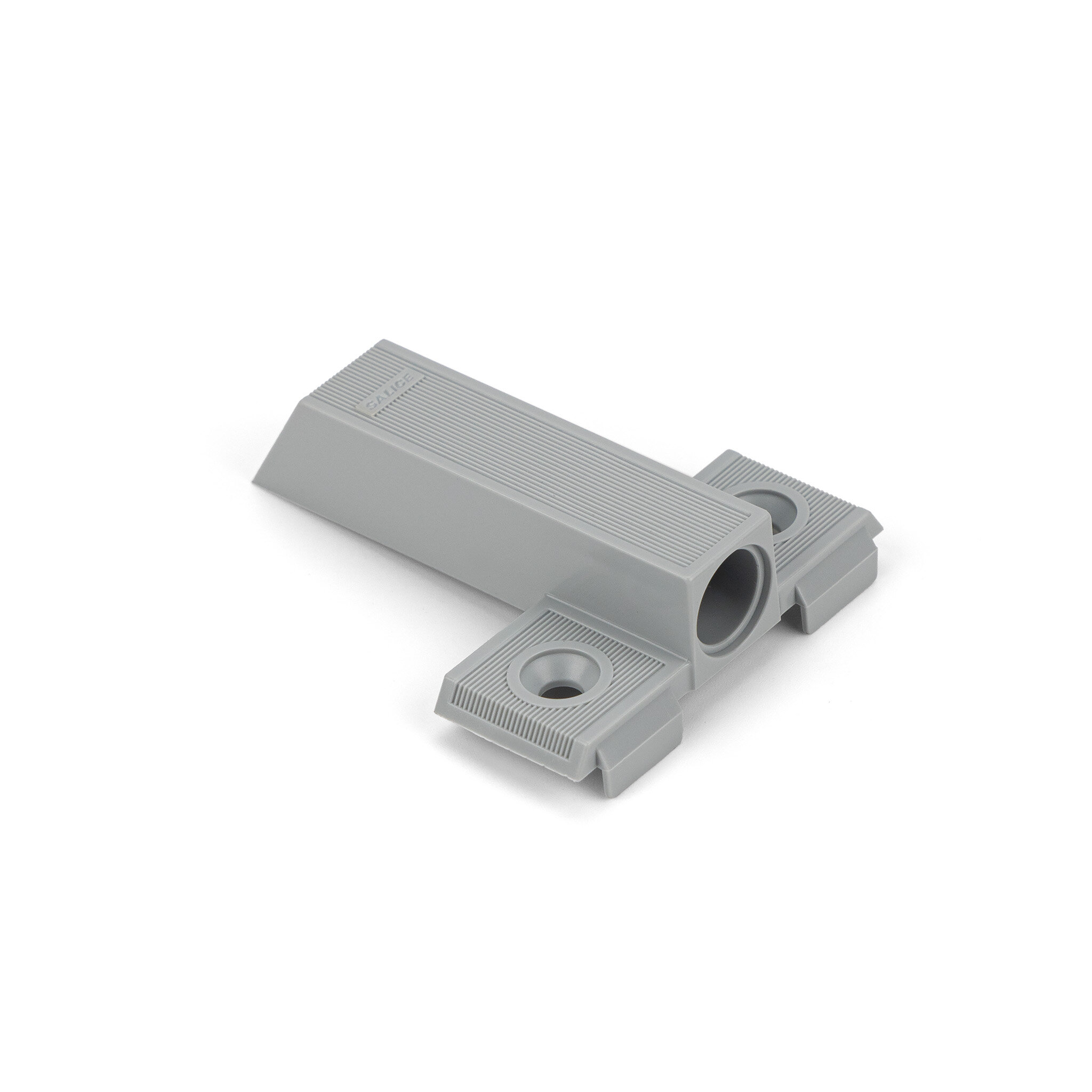

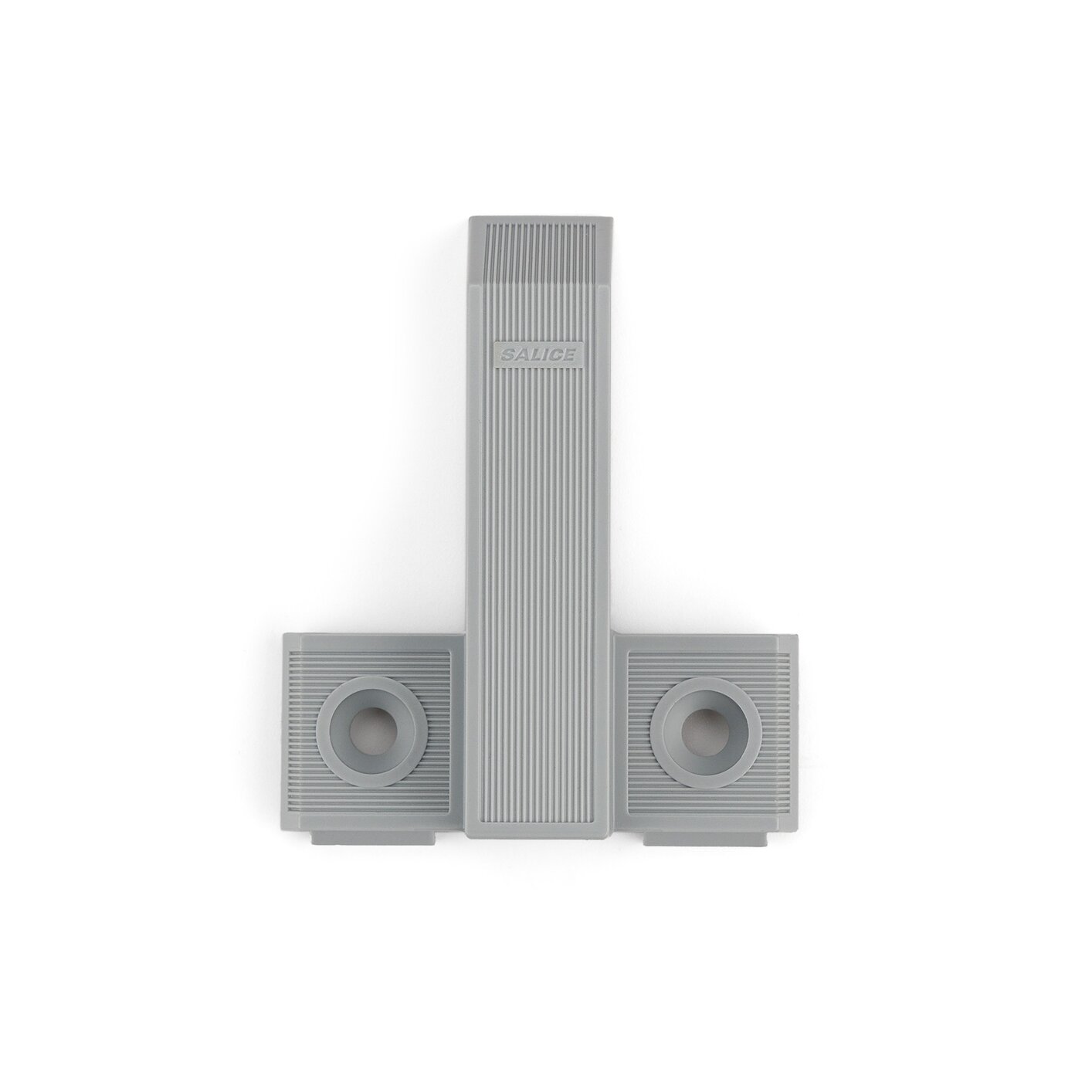

Cruciform plastic adapter compatible with Smove dampers D005, D006 and D008. Intended to be attached to the cabinet side using wood screws directly for face frame applications. Use a 10x32mm drilling pattern to install. Includes assembly stop device which is a lip over the edge of the frame.

Best suited for doors between 450 mm and 600 mm width. For wood-based and aluminum-framed doors over 1600 mm height, it may be necessary to use two Smove devices, with one fixed to the upper part and the second to the lower part of the cabinet side, opposite to the hinges.
