Triade Pro
![Italiana Ferramenta](/brands/italiana-ferramenta-logo.png)

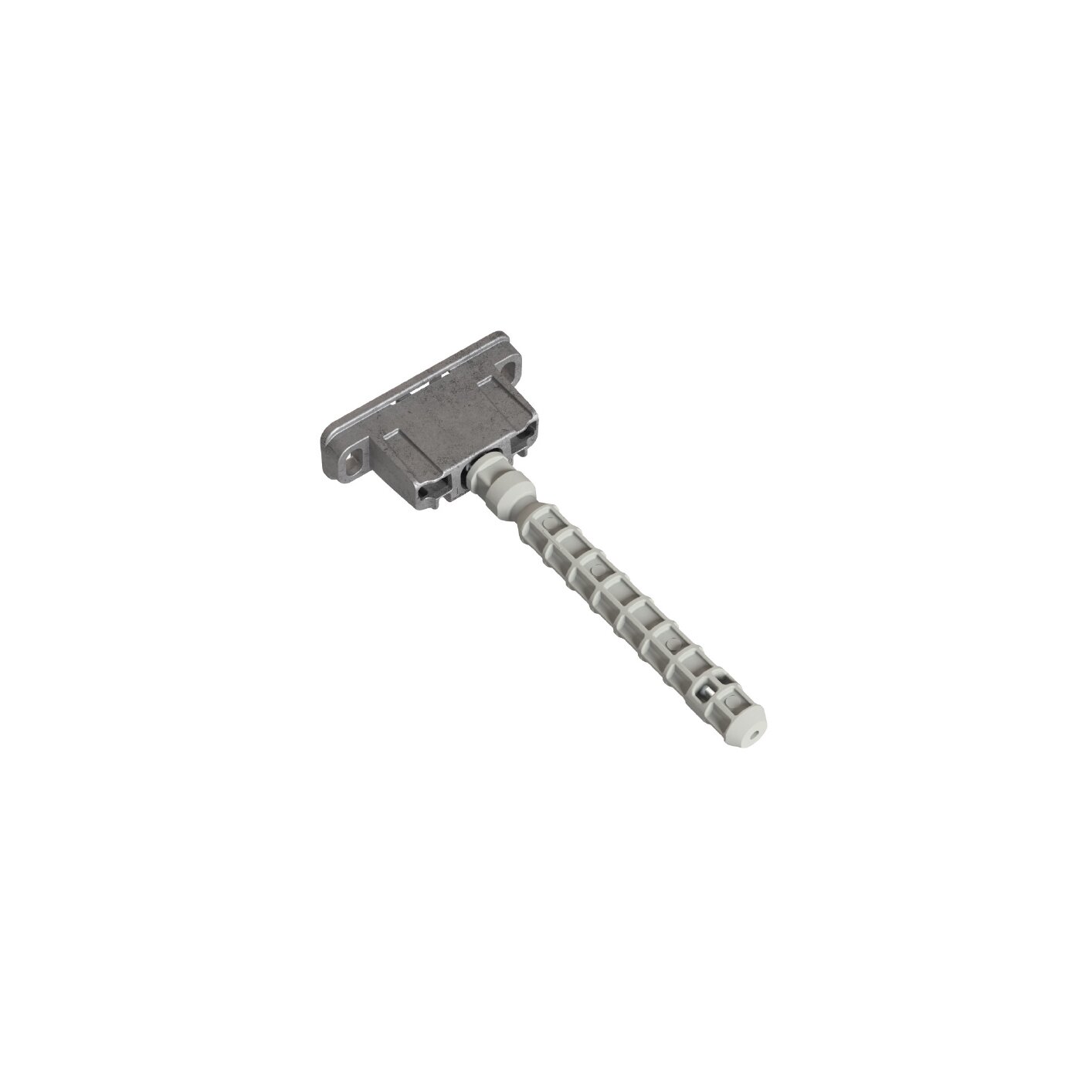

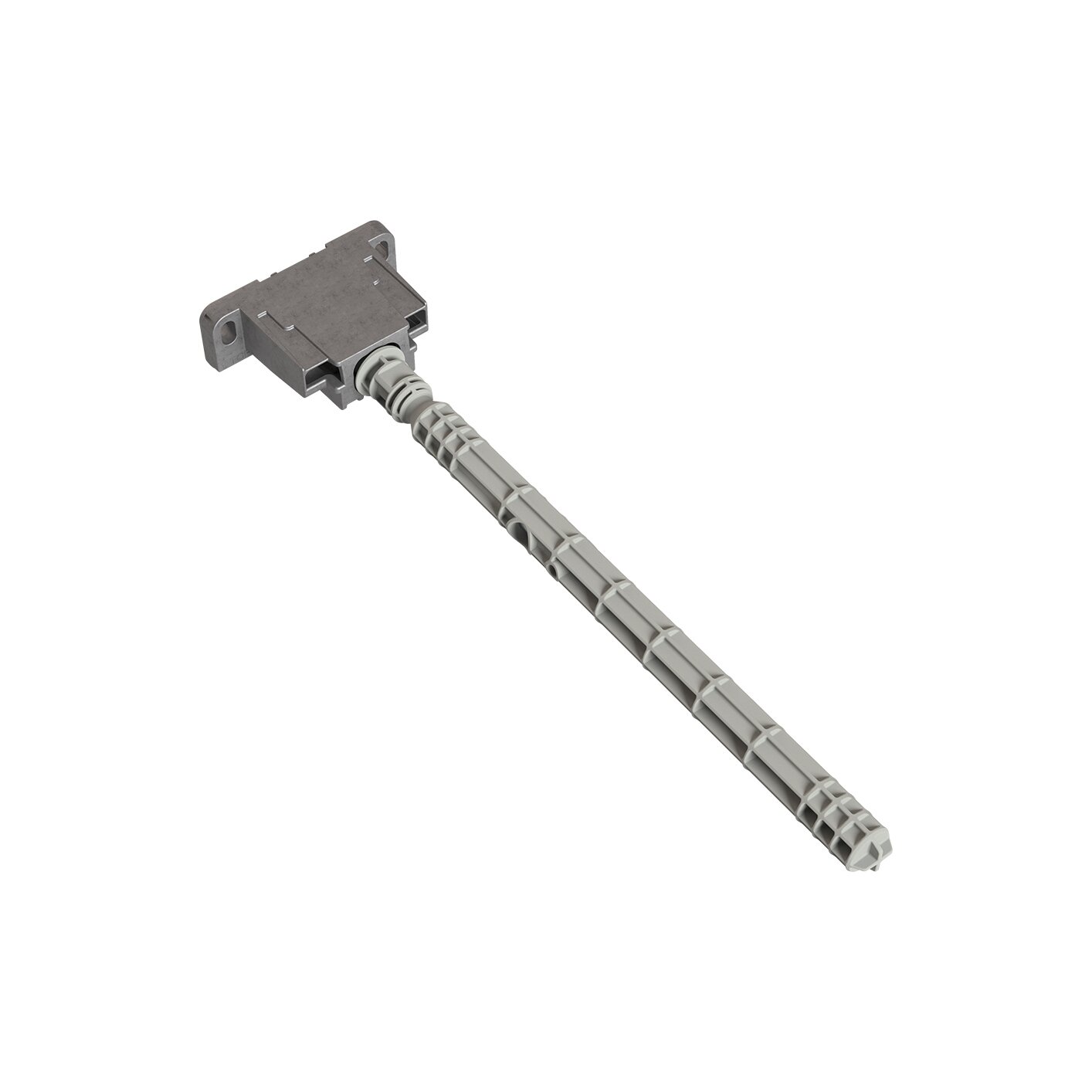

Triade Pro is a sleek shelf support that gives lightweight shelves a floating effect, maintaining a minimalist and elegant appearance.
Product Description

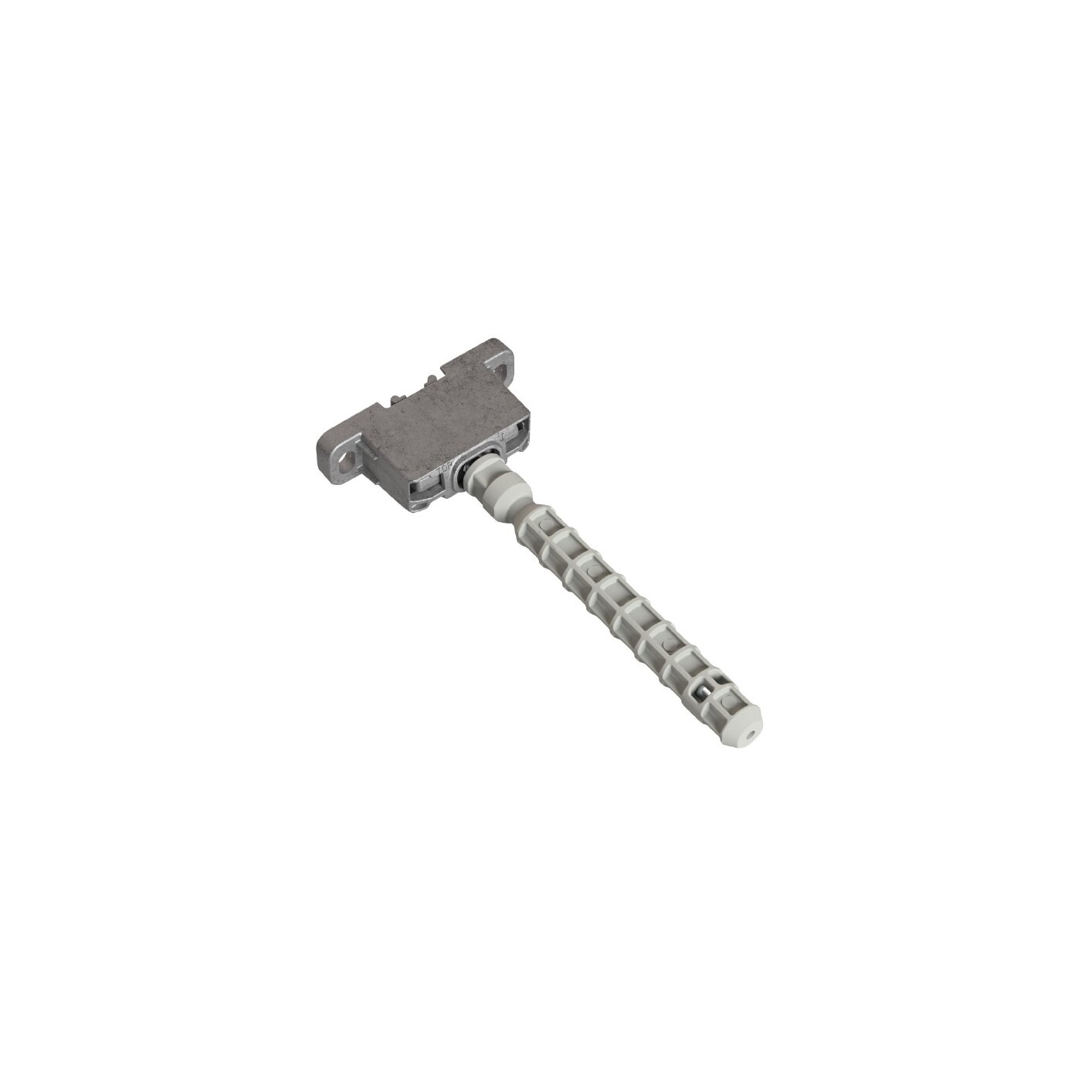

Triade Pro is the newly engineered family of concealed shelf supports. Re-designed and technically improved, Triade Pro is defined by high loading capacity and smooth adjustments. With the addition of Triade Slim, the whole program covers all panel thicknesses:

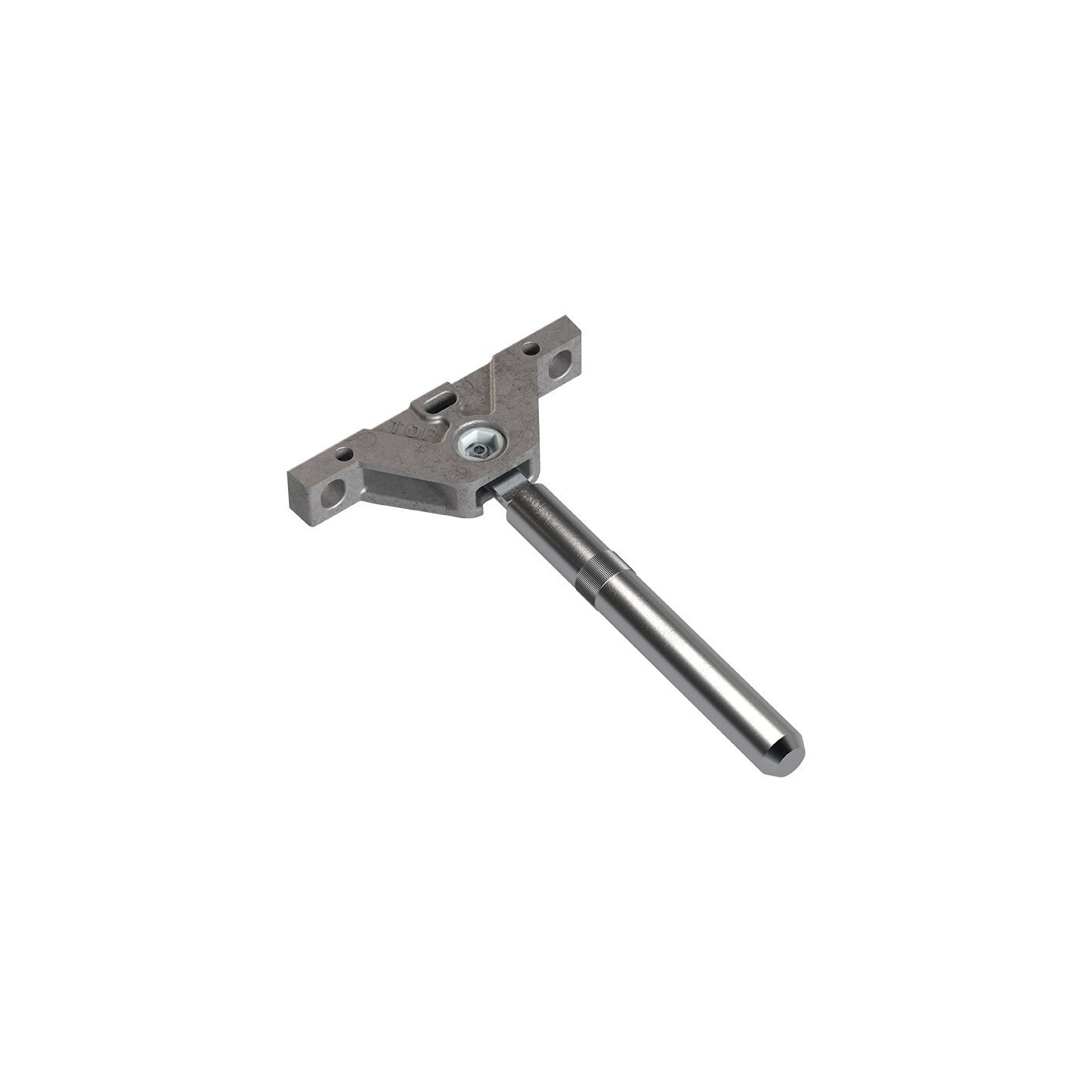

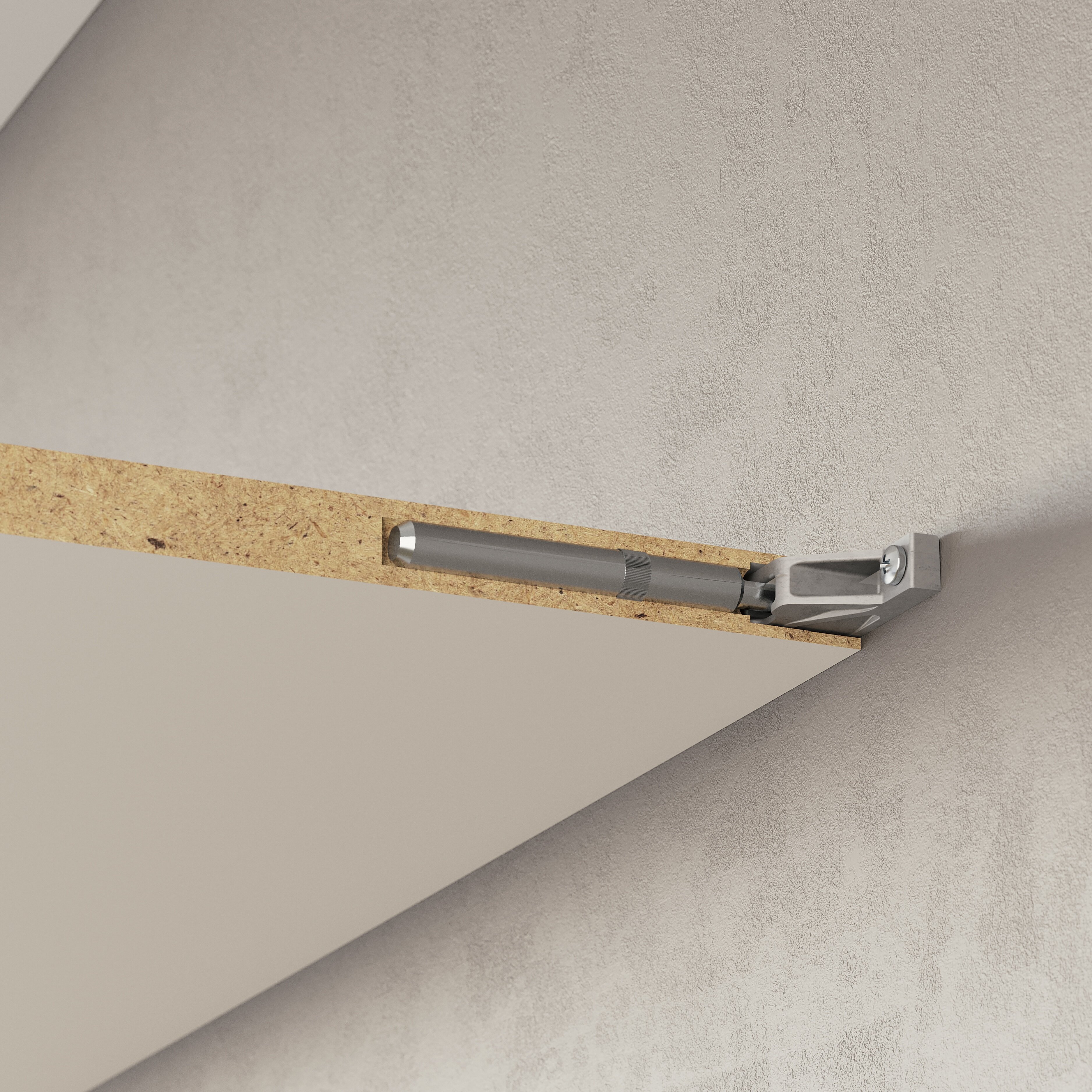

Triade Slim – min 18 mm thick shelves.

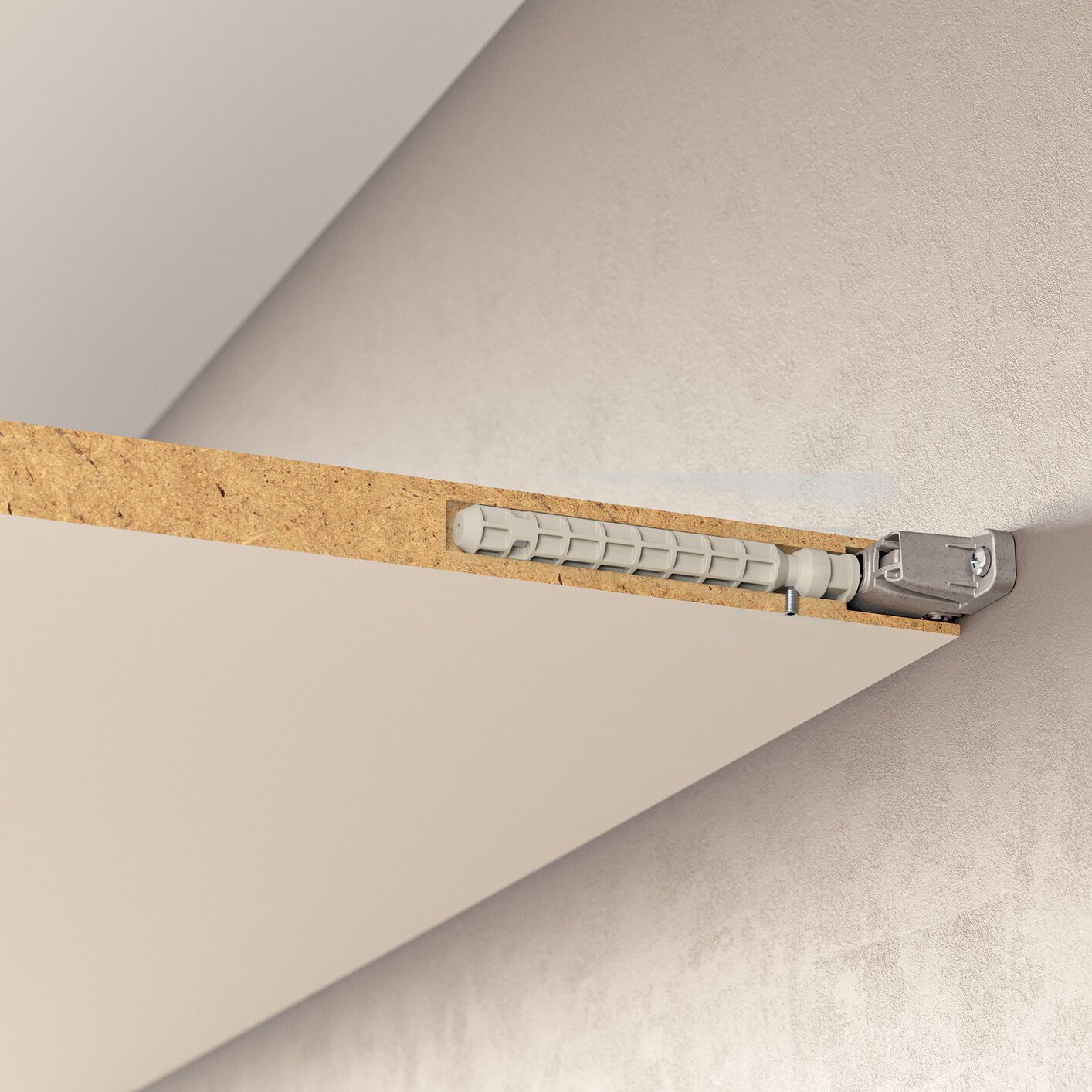

Triade Pro Mini – min 25 mm thick shelves

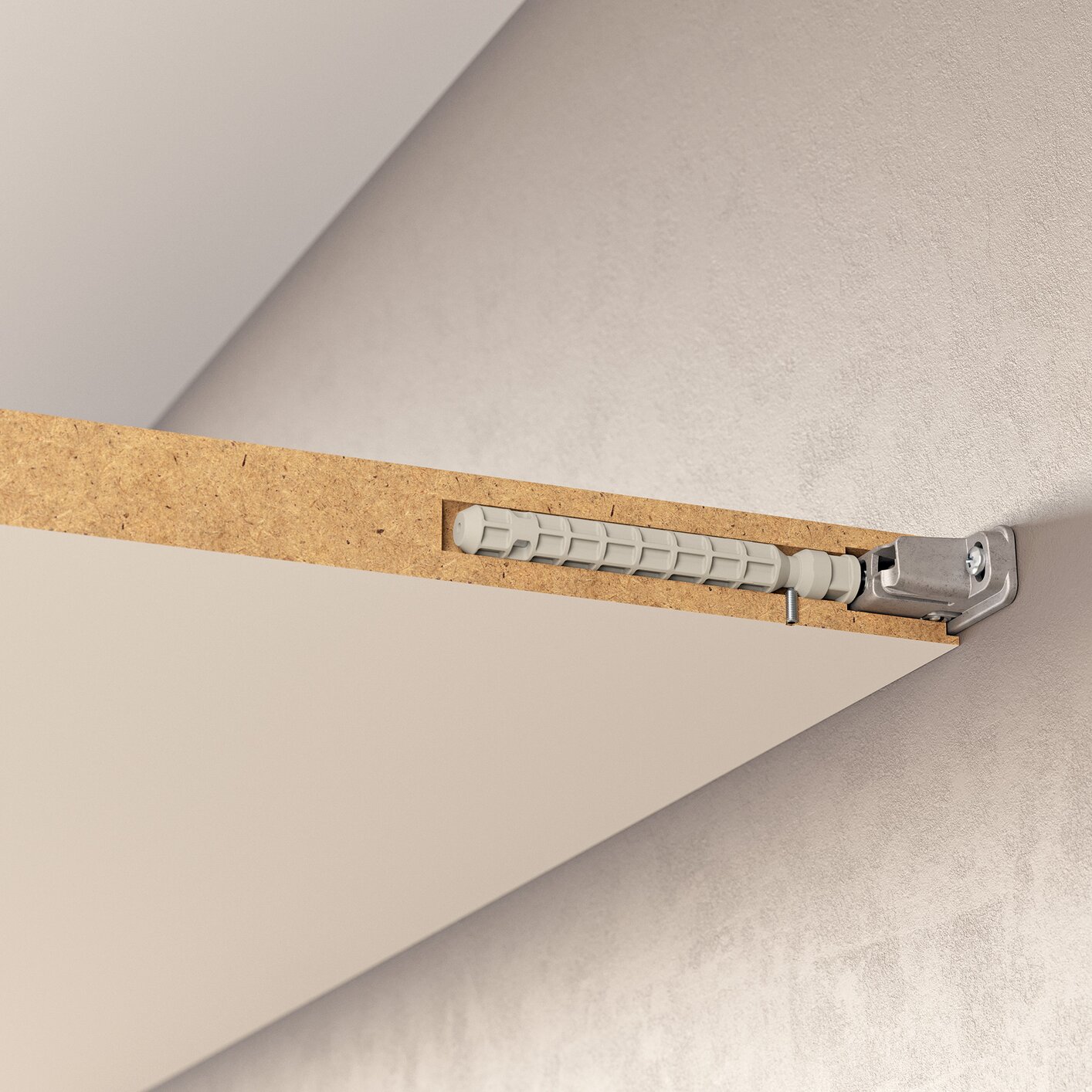

Triade Pro – min 30 mm thick shelves

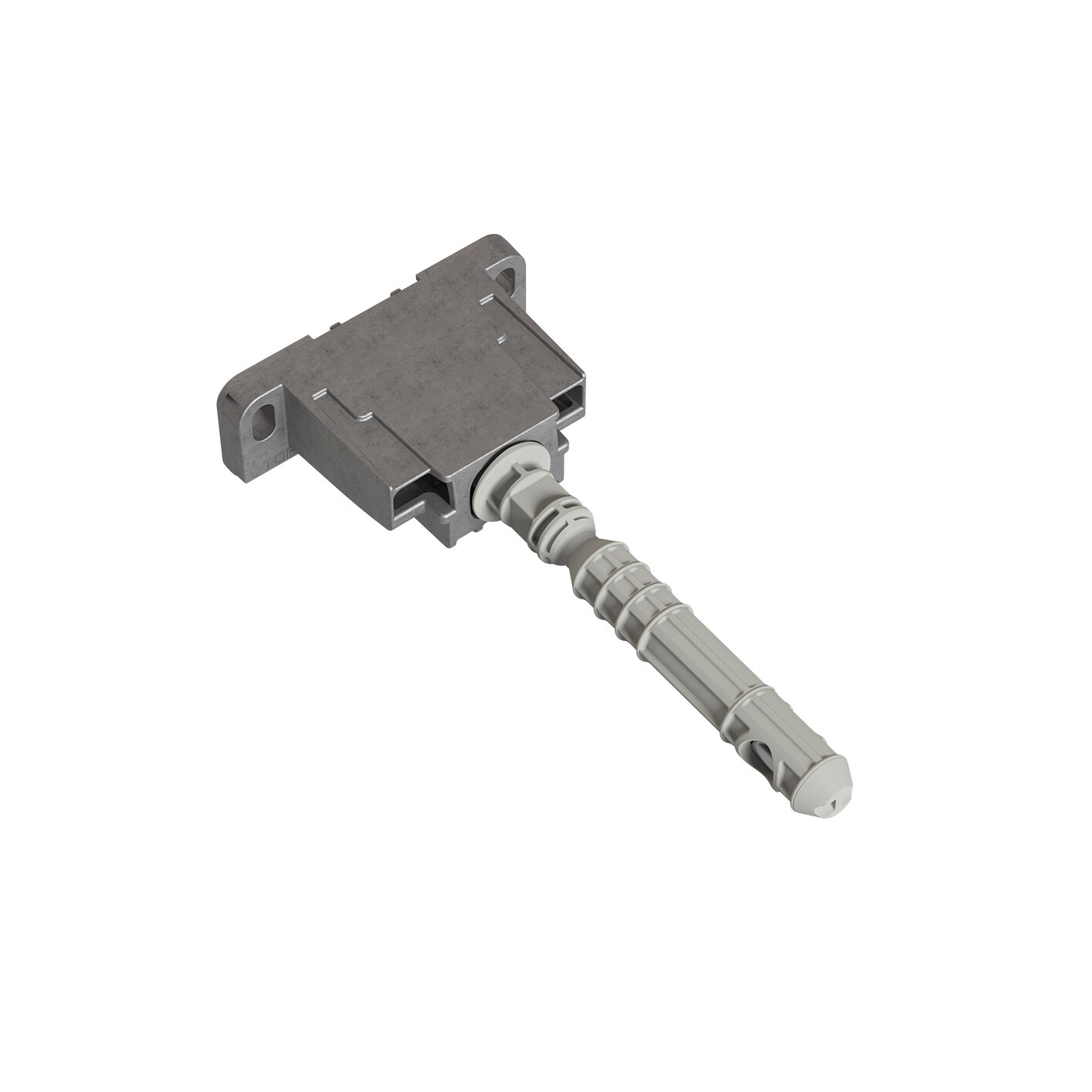

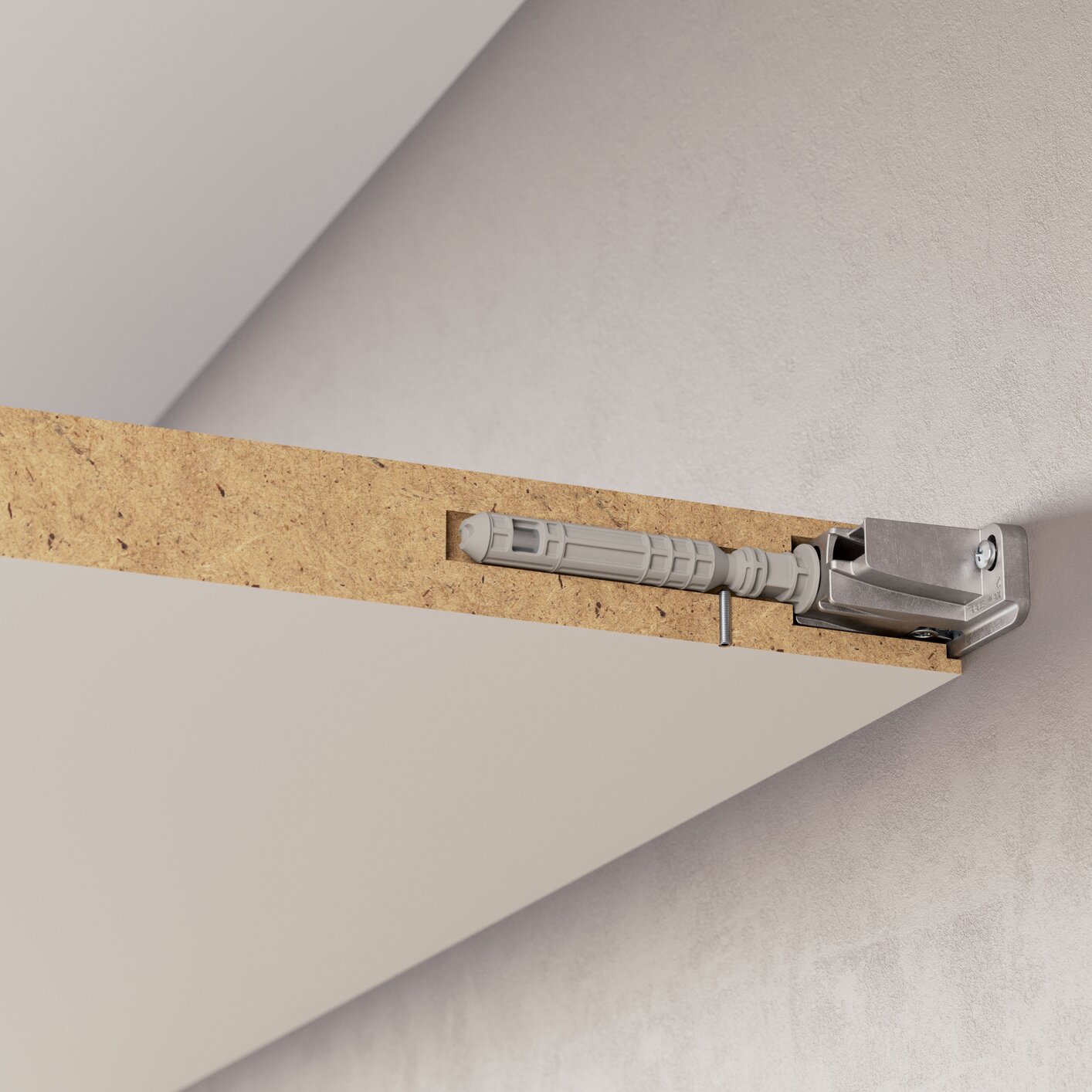

Triade Pro Maxi – min 40 mm shelves

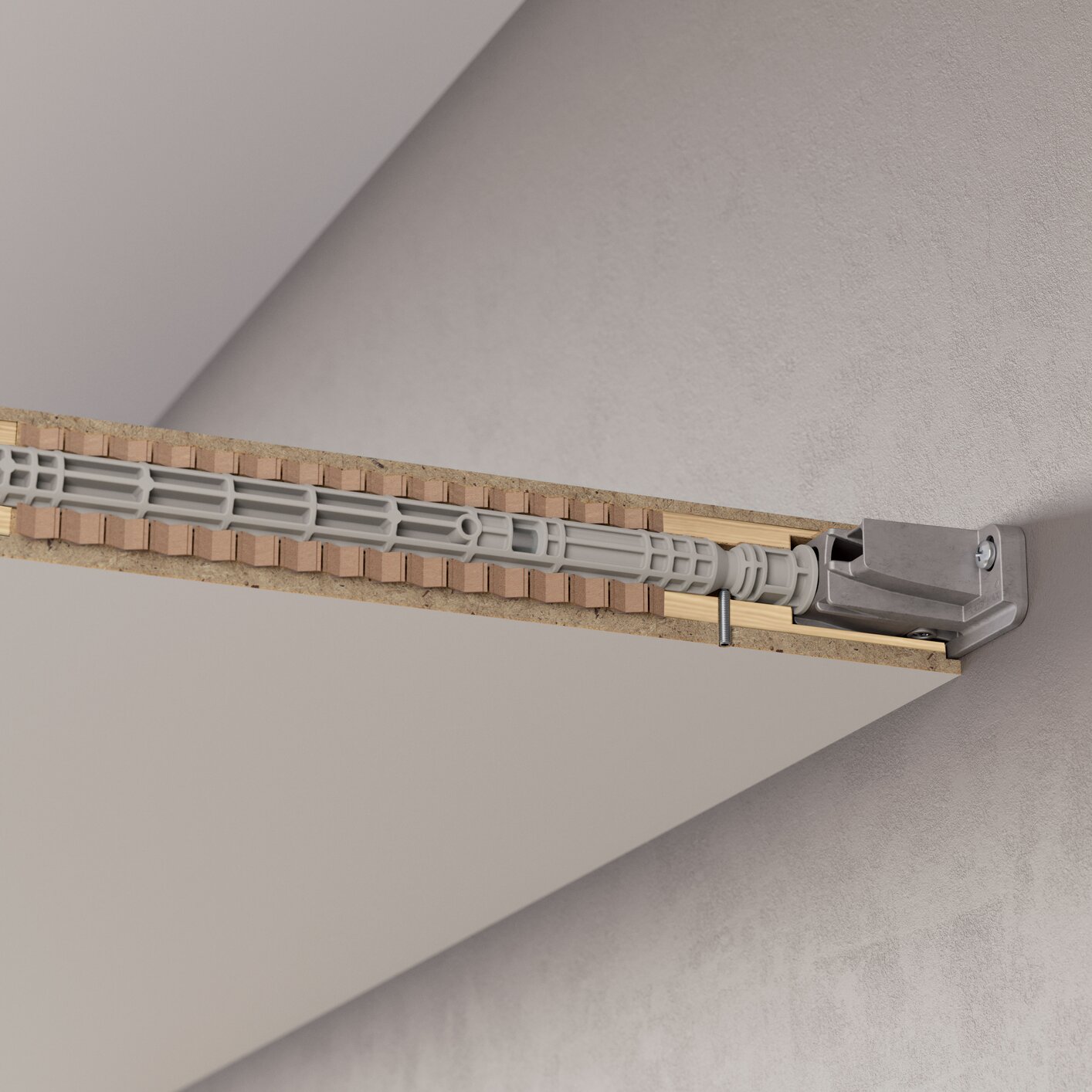

Triade Pro XXL – for Honeycomb panels
Product Advantages
- Triade is designed for any material with a thickness between 18 to 40mm.
- Load capacity & adjustments:
- Triade Slim = 15kg per pair, shelf of 200mm deep, up/down 6.5mm, Lateral: 2mm, Tilt: -1°/+5°
- Triade Pro Mini = 15kg per pair, shelf of 250mm deep, up/down 8.5mm, Lateral: 2.5mm, Tilt: -1°/+3°
- Triade Pro = 30kg per pair, shelf of 300mm deep, up/down 10mm, Lateral: 2.5mm, Tilt: -1°/+4°
- Triade Pro Maxi = 40kg per pair, shelf of 400mm deep, up/down 10mm, Lateral: 2.5mm, Tilt: -1°/+3°
- Triade Pro XXL = 40kg per pair, shelf of 400mm deep, up/down 8.5mm, Lateral: 2.5mm, Tilt: -1°/+3°
- Triade Pro Mini, Triade Pro , Maxi and XXL are now produced with a overmolded sleeve with honeycomb surface. The new honeycomb surface reduce the friction without reducing the load capacity.
- Optional wall bracket, T-shape bracket, delivers 2 fastening point and a central bar for a total of three weight transfer points.
- Optional aluminium profiles. The cut-to-size profile, coupled with the easy drillings capability of aluminum, ensures a secure attachment to the wood studs behind the plasterboard. This reliability is crucial for supporting shelves or other heavy fixtures, providing peace of mind regarding stability and safety.
- Optional locking grub screw secures the shelf in place by locking it to Triade, reduces the risk of it tipping over.
Product Files
Lateral | 2.5 mm |
Material | Metal |
Triade Pro Concealed Shelf Support / Shelving System
Triade Slim Concealed Shelf Support / Shelving System
