4x4 Pocket Door Slide, 8091 Series, Black

By Knape and Vogt
Measurement : Metric/Imperial
Cabinet Width (Fixed)
Ordering information

Pocket door systems with 3/4 extension slide without hinge and base, 75 lbs class

Related Products

Pocket Door Slide 8071 Series, Black
Pocket Door Slide 8071 Series, Black
Pocket door systems with 3/4 extension slide without hinge and base, 30 lbs class
KV Pocket Door Hinge Kit
KV Pocket Door Hinge Kit
Hinge Kit for KV Pocket Door Systems 8071 and 8091
Pinion Shaft for KV 8092 Series, 72", Black
Pinion Shaft for KV 8092 Series, 72", Black
Part #: K8090B-EB-72
Pinion shafts, 72" lengths to connect top and bottom pocket door slides
KV Pocket Door Raised Panel Cassette Roller
KV Pocket Door Raised Panel Cassette Roller
Part #: K8090P-CR
KV Pocket Door 8091 Full Overlay Kit Salice Hinge
KV Pocket Door 8091 Full Overlay Kit Salice Hinge
Part #: K8091SFULL34S
Back to the top

Product Details

Pocket door systems with 3/4 extension slide without hinge and base, 75 lbs class

Brand
Knape and Vogt
  • Product Description

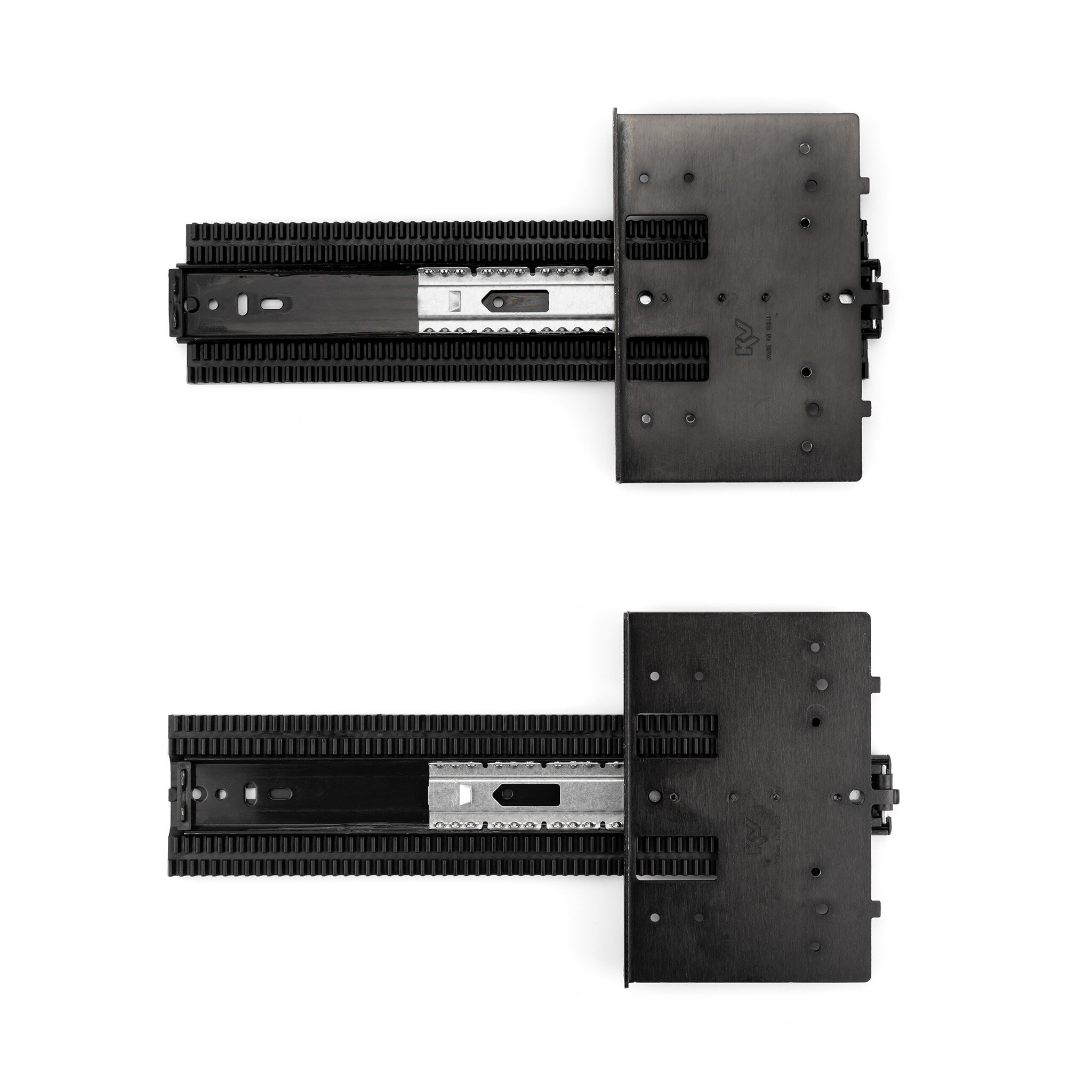

    The Knape & Vogt 4x4 Pocket Door™ Slide is perfectly suited for large entertainment and home theater cabinets. It is uniquely designed to accommodate oversized doors, supporting up to 75 pounds and 72 inches in height. The slide features a dual rack and pinion system that virtually eliminates door sag, which speeds up installation, reduces the need for adjustments, and decreases the likelihood of callbacks. Like all Knape & Vogt drawer slides, the 4x4 Pocket Door™ Slide meets or exceeds the ANSI performance standards as outlined by BIFMA, BHMA, and KCMA.

  • Product Advantages
    • Dual rack and pinion system virtually eliminates door sag
    • 75–Pound Class rated for heavy-duty applications
    • Maximum door dimensions: 72”h x 26”w
    • Innovative indexing pin allows door slide to nest within door rack for easy alignment and installation
    • Self-closing, three-way adjustable isometric door hinge
    • Hinge bases are pre-mounted on the 8092 for faster installation
    • Allows installer to use the hinge/hinge base of their choice
    • Precision steel ball bearings provide smooth and quiet operation
    • Backed by the exclusive Knape & Vogt Limited Lifetime Warranty
  • Resources
    KV Pocket Door Technical Specifications & Assembly KV Pocket Door Ordering Guide

Specifications

4x4 Pocket Door Slide, 8091 Series, Black
Door Height (Maximum):
72 in
Door Mounting Method:
Mounts directly to cabinet side
Door Width:
26 in
Finish:
Black
Operation:
Pocket Door
Weight Capacity Per Door:
75 lbs
