KV Pocket Door Hinge Kit

Measurement : Metric/Imperial

Door Type

Door Thickness

Ordering information

Hinge Kit for KV Pocket Door Systems 8071 and 8091

Related Products

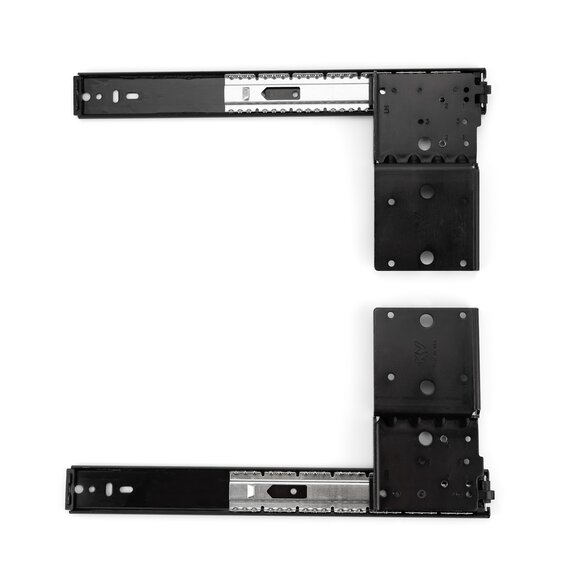

Pocket Door Slide 8071 Series, Black

Pocket door systems with 3/4 extension slide without hinge and base, 30 lbs class

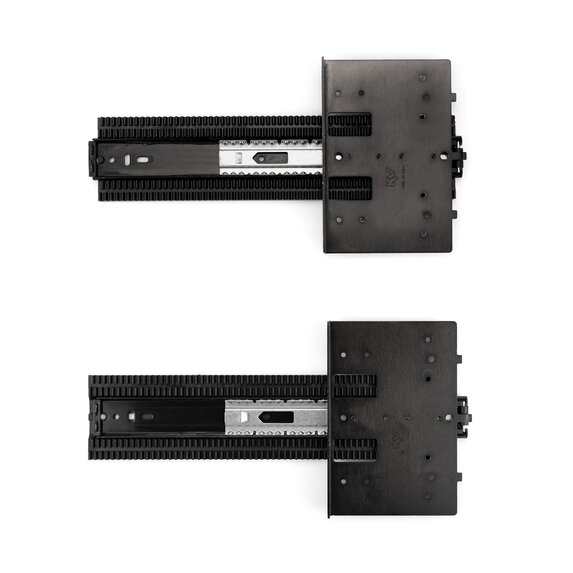

4x4 Pocket Door Slide, 8091 Series, Black

Pocket door systems with 3/4 extension slide without hinge and base, 75 lbs class

Pinion Shaft for KV 8092 Series, 72", Black

Part #: K8090B-EB-72

Pinion shafts, 72" lengths to connect top and bottom pocket door slides

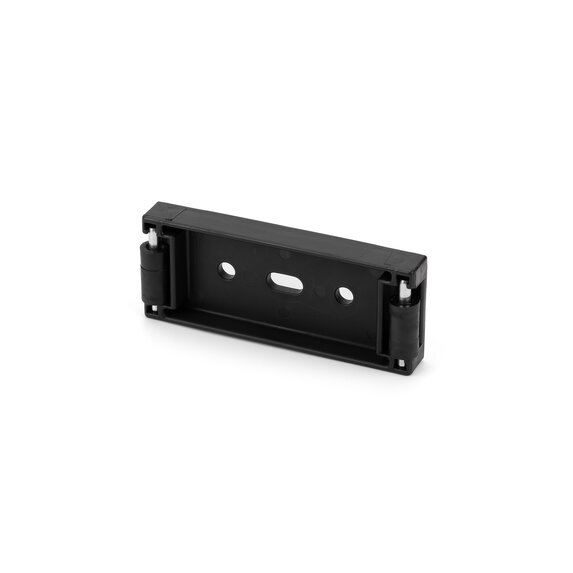

KV Pocket Door Raised Panel Cassette Roller

Part #: K8090P-CR

Back to the top

Product Details

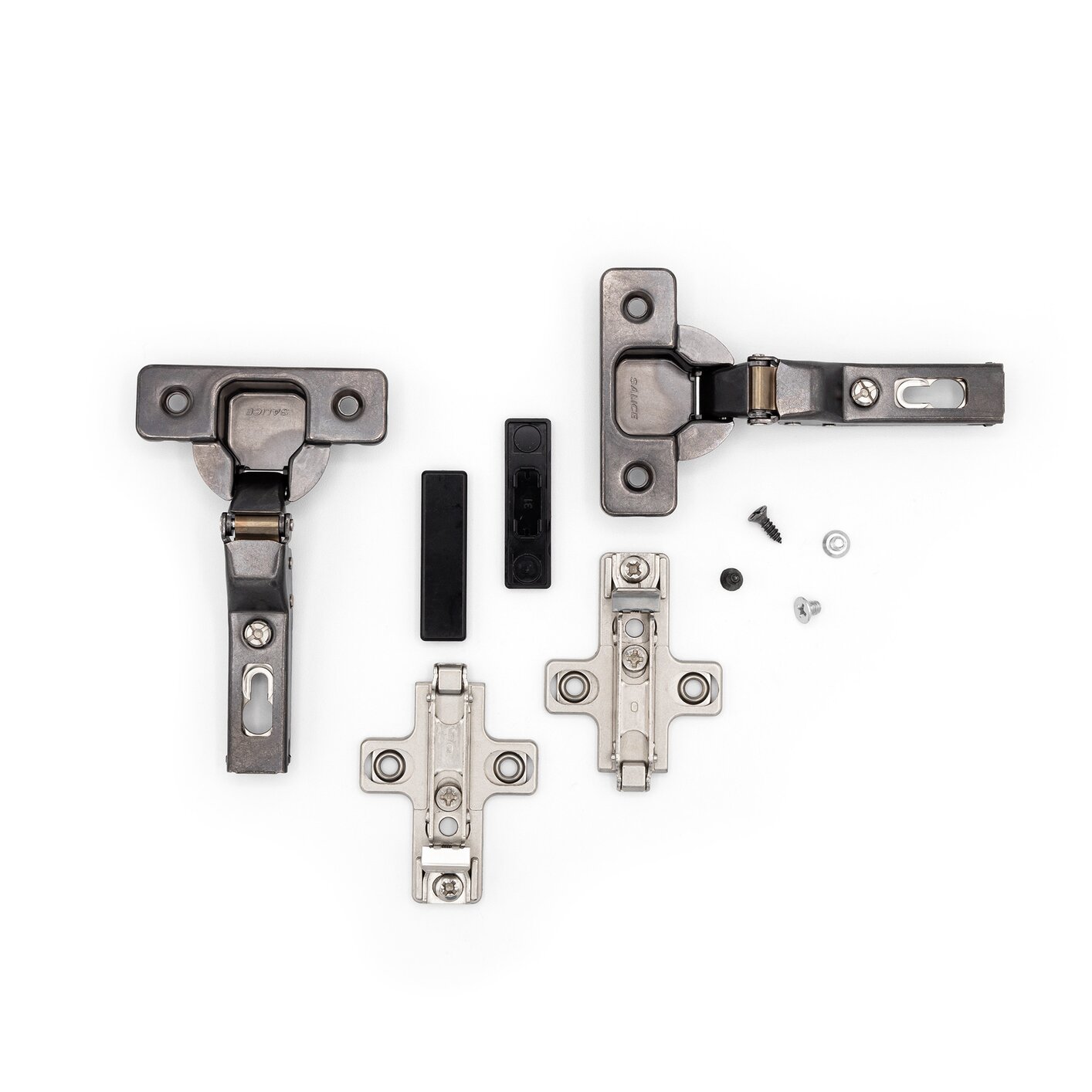

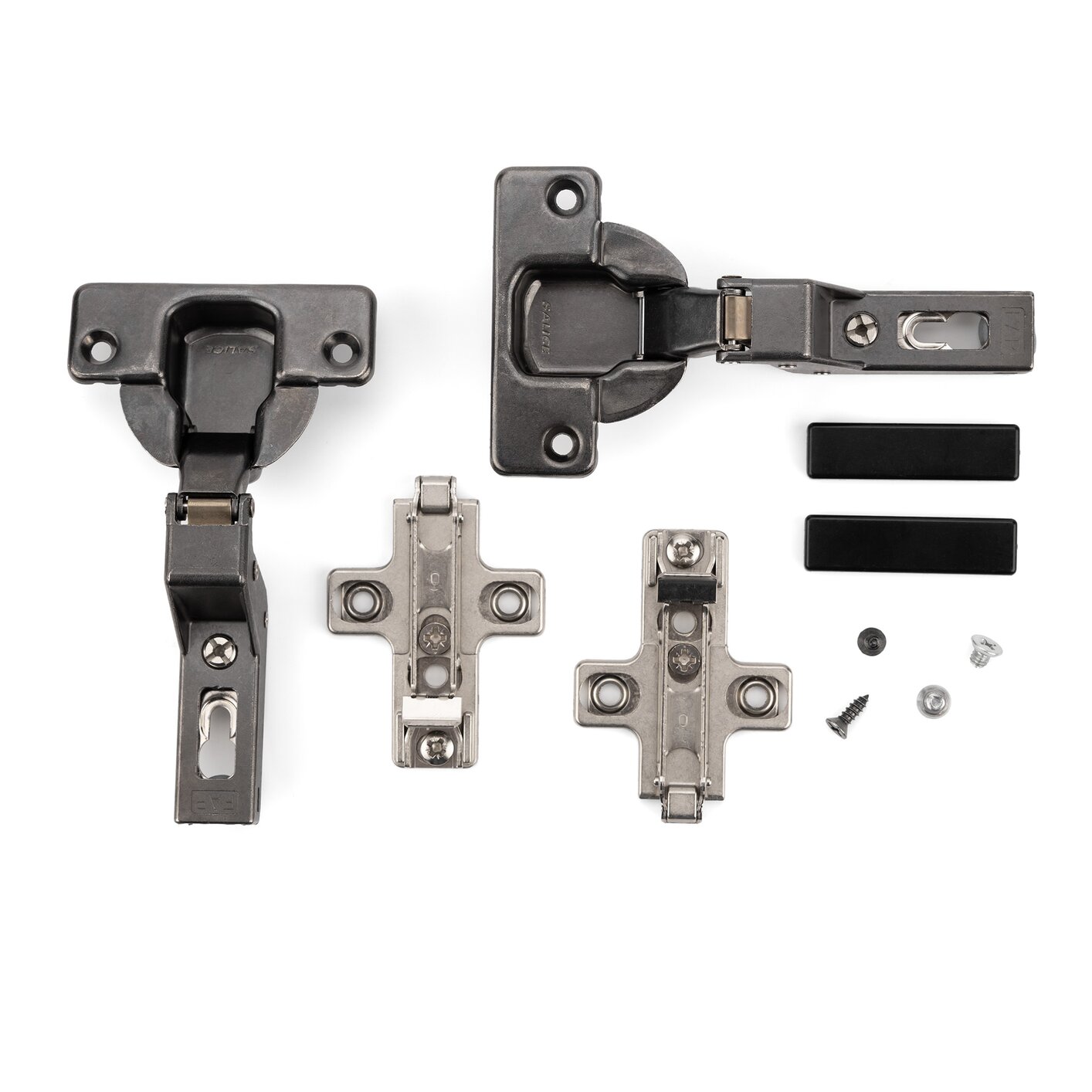

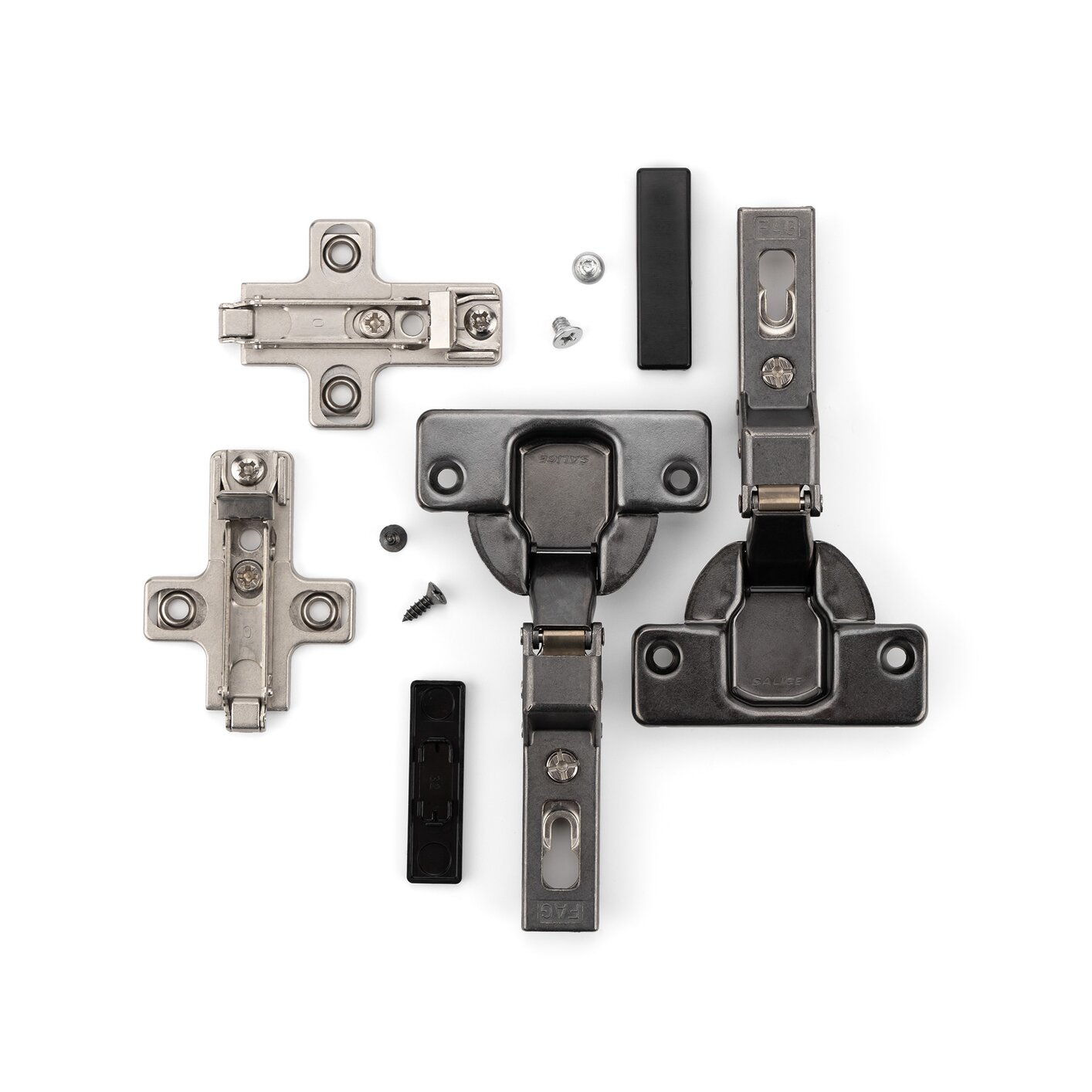

Hinge Kit for KV Pocket Door Systems 8071 and 8091

Product Description
Product Advantages
- Three-way cam hinges provide fast and easy door adjustments.
- Packaged for use with KV 8071 and 8091 Pocket Door Systems.
- Packaging includes hinge bases, hinges, mounting screws and cover caps.
- Backed by the exclusive Knape & Vogt Limited Lifetime Warranty
- The horizontal (lateral) adjustment range is 6mm (-1/5mm to +4.5mm for 35mm cup hinges, -0.5mm to +5.5mm for 40mm cups), while maintaining a constant gap behind the door.
- The vertical (height) adjustment range is 4mm (-2mm to +2mm).
- The depth adjustment range is 3/1mm (-0.5mm to +2.8mm) for all hinge bases.
Resources

Limited Lifetime Warranty

In the event that any product Marathon sells is found to be defective in either workmanship or materials, such products shall be replaced by Marathon, free of charge, for as long as the original consumer purchaser owns the products.

If a product is no longer available, Marathon will replace the defective hardware with a current offering.

Not covered by our warranty:

Incorrect installation or any consequential and/or incidental damages incurred as a result of incorrect installation.

Hardware that has been exposed to excessive loads, abused, or used in any manner other than its intended purpose.

Removal of defective hardware, delivery costs, or installation of new hardware.
