DTC Top Stays SE Push-Open Lift System
A compact lift arm opening solution for upper cabinets that works in combination with hinges. Not sure which one to order? Try our easy-to-use Power Factor Calculator.
Product Description

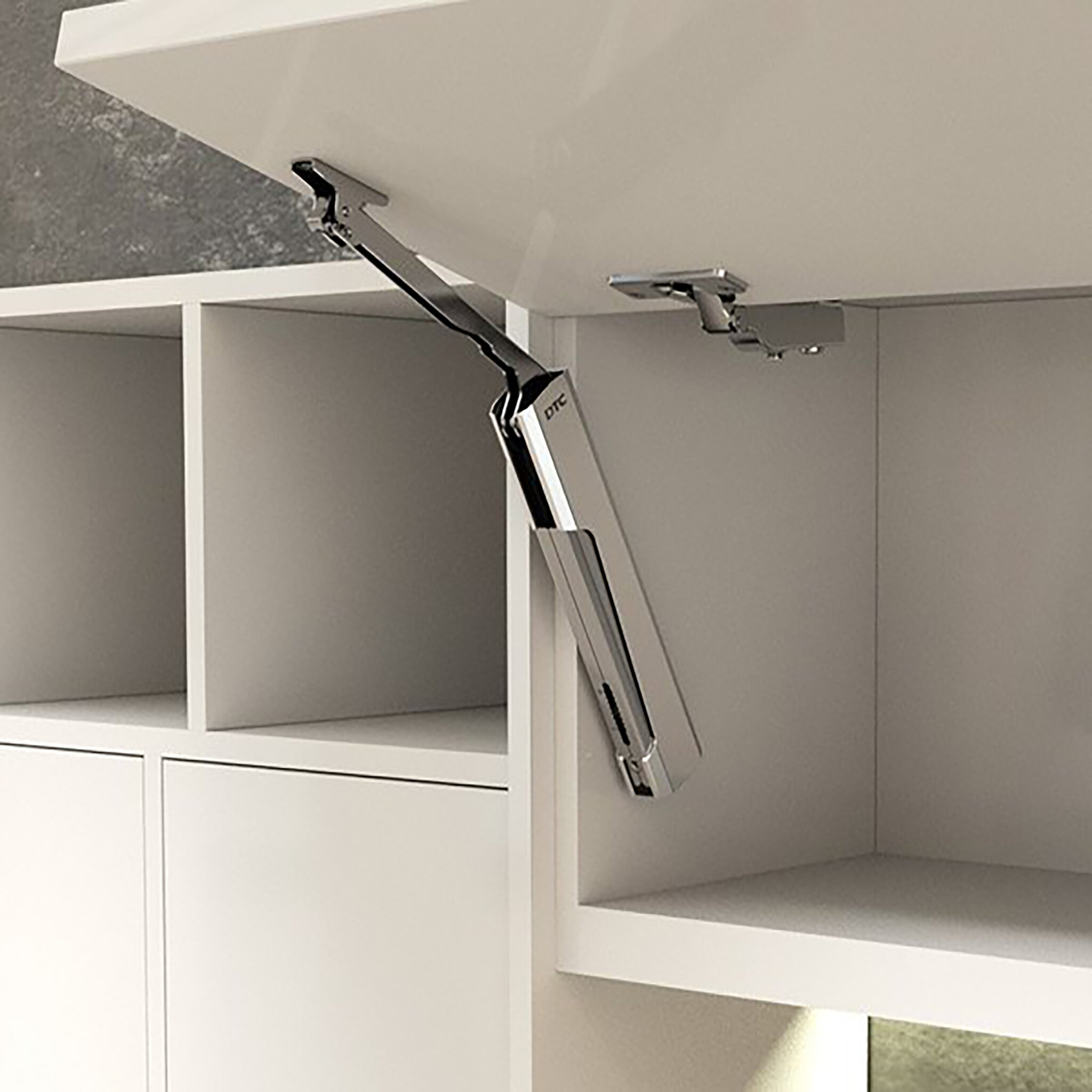

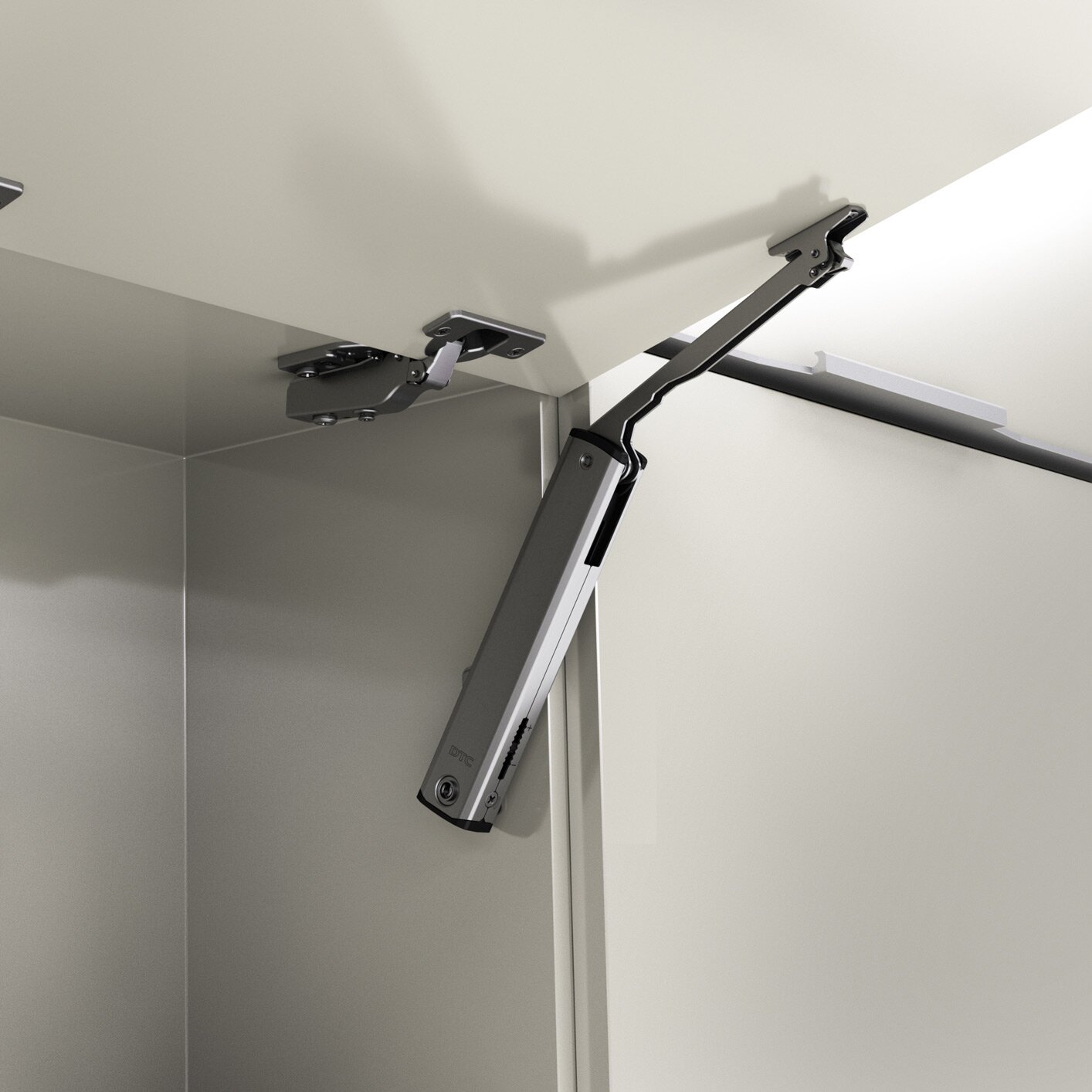

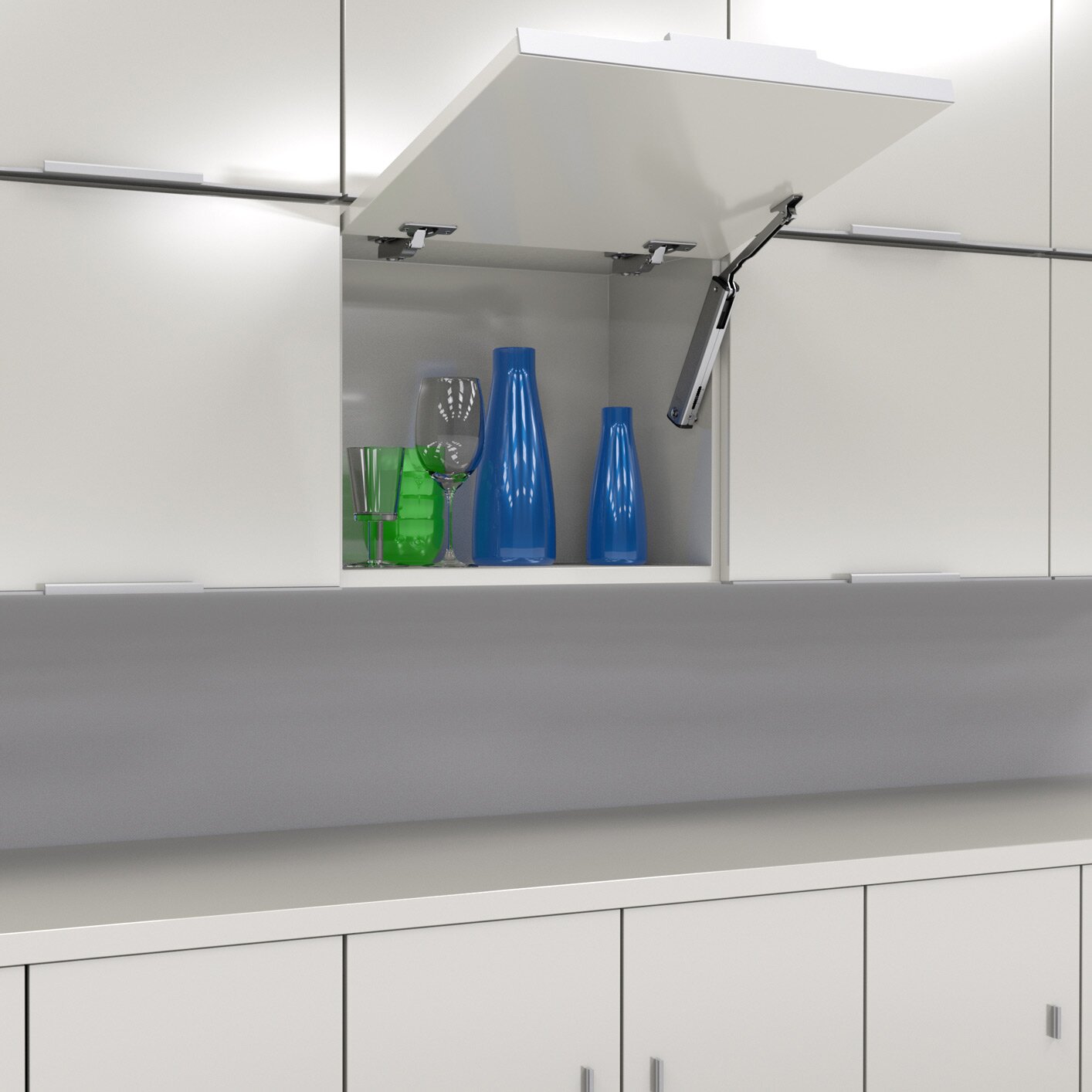

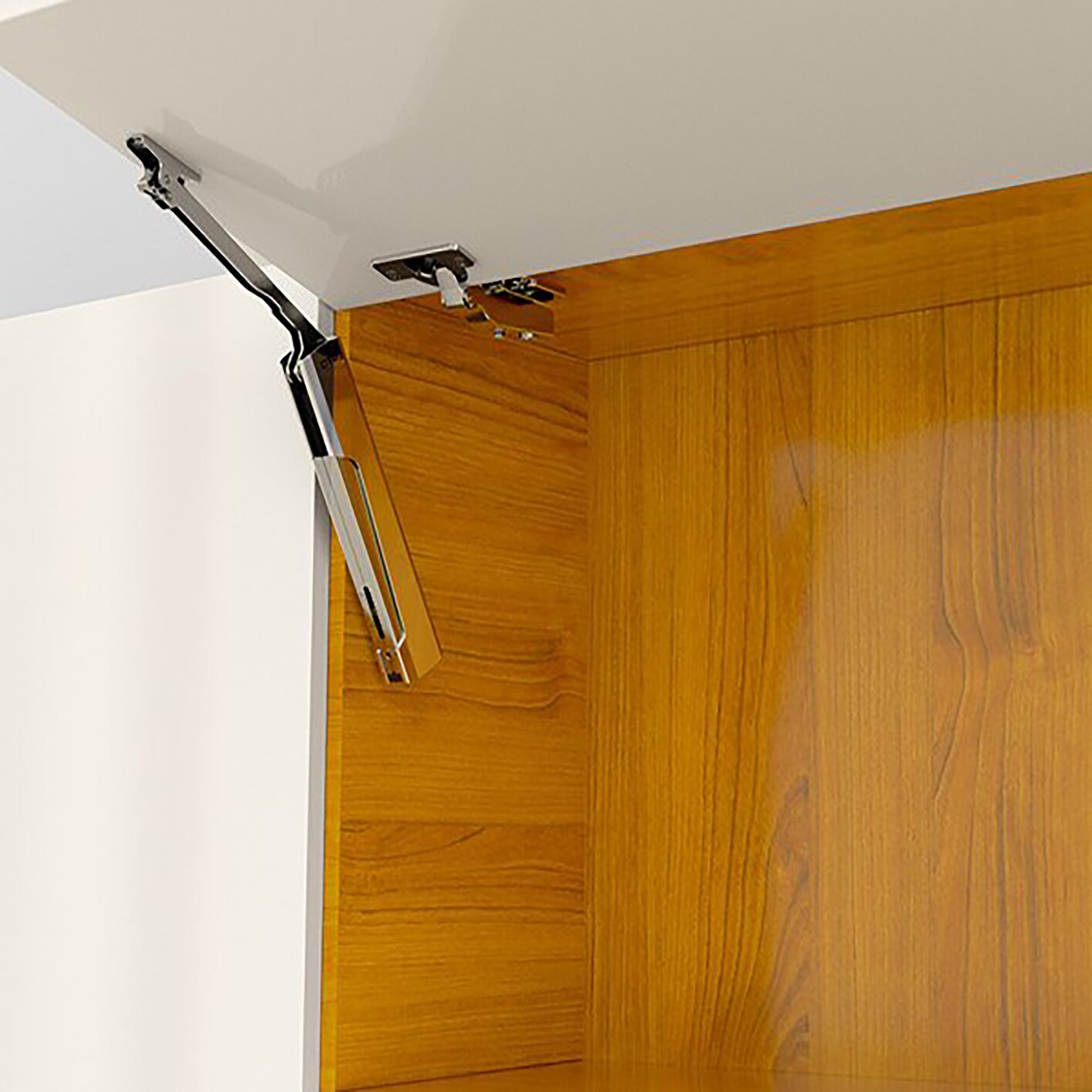

The Top Stays SE Push-Open series lift arm is DTC's most economical and compact flap door lift solution. Working in combination with unsprung hinges, the SE series is a perfect choice for your upper cabinet doors in any project.
Easy open with a sophisticated spring arm design that allows the door to open effortlessly and stay open at any position, with built in adjustment to compensate for your door's size and weight.
Product Advantages
- Opening Angle: 105°
- Easy to open with low force
- Stays open at any desired position
- Push-Open with magnetic push catch included
- Door Adjustments via hinges
- Tool-free assembly and removal
Important Information
Hinges sold separately. We recommend unsprung hinges to be used with this product, not soft-close or self-close hinges. DTC Unsprung Hinges are available in part # 105-CA80A675N. For cabinets wider than 900mm or when the power factor is over 1800, we recommend 3 hinges. For cabinets wider than 1200mm or when the power factor is over 2700, we recommend 4 hinges.
Power Factor Formula
How to Order? Use our easy Power Factor Calculator:
Power Factor = Cabinet Height (in mm) x Door Weight (in kg) including 2x handle weight.
The supported power factor is doubled when a second lift mechanism is installed.
Product Files
Angle | 105 |
Application Type | Flap Door |
Closing Type | Push-Open |
Door Height Range | 240 to 600 mm |
Min. Cabinet Depth | 125mm (4-7/8") |
Opening Type | Push-Open |
