Salice Pacta Flaps Door System

Product Details

Pacta confers a decelerated opening action and the fall of the door is gradual and controlled.

Brand
Salice

Product Description

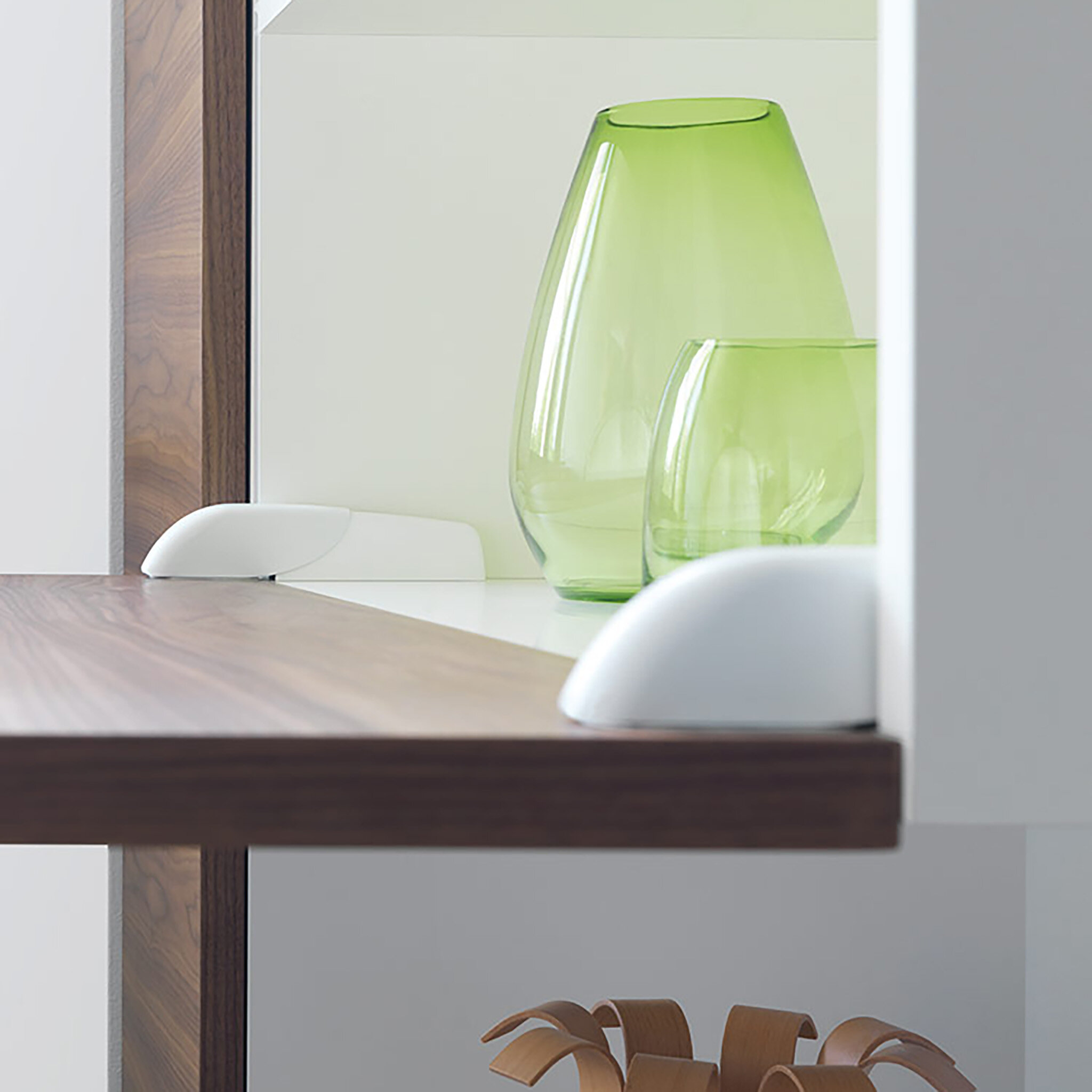

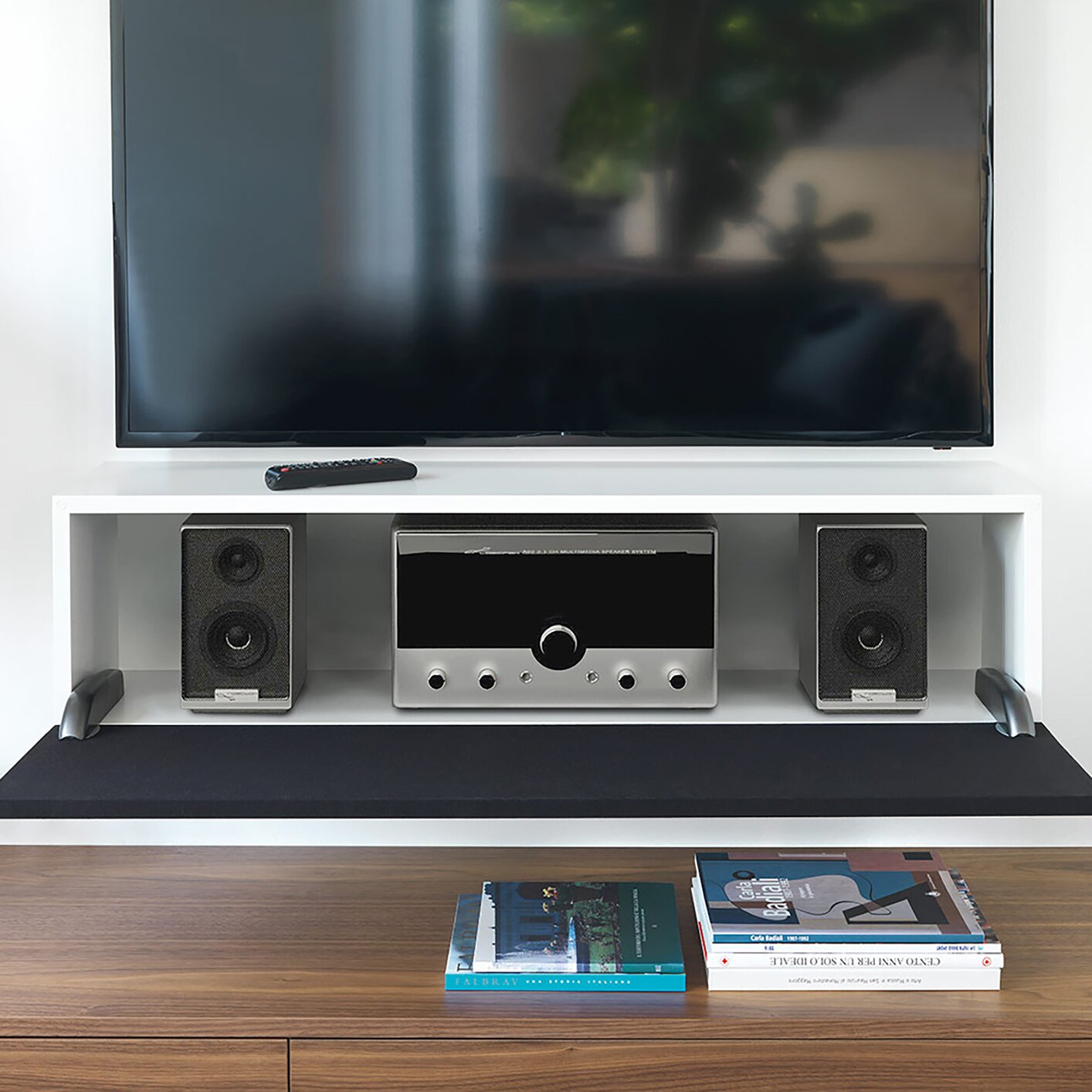

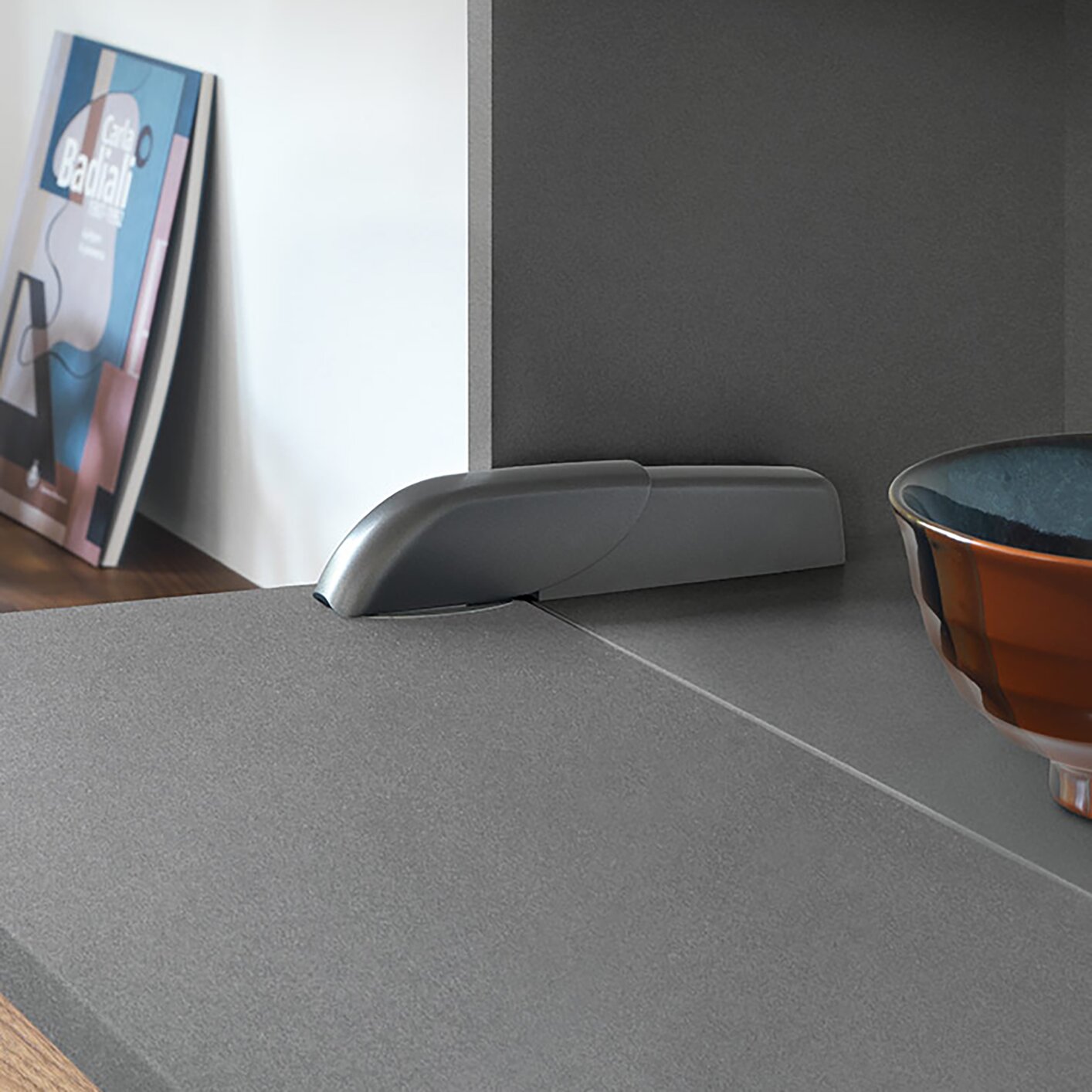

Pacta is a compact hinge for fall flaps which operates without the need for additional stays or cables. In the fully-open position, the door and base panel are aligned, creating a uniform and flat surface. Pacta comes in a variety of finishes. Its applications are numerous: in living room and kitchen cabinets, to create desks in children’s furniture or for writing surfaces and table extensions in hotel furniture.
Product Advantages
- Hinge for flap doors with decelerated opening.
- Fixing to the base of the cabinet with longitudinal snap-on mounting plate.
- For wooden doors, with heights from 280 to 400mm and weight between 1.5 to 9.5kg.
- Standard drilling of the door ø 35mm with 13mm deep cup.
- Pefect 90° opening.
- Fixed K/TAB value of 4.5mm.
- Side, front and vertical door adjustment.
- Required to use central hinge for cabinets over 900mm wide.
- Covers available in numerous finishes.
Important Information
Resources
Salice Pacta - Complete Technical Instructions and Specifications Calculation Charts for Pacta Strength - Door and Weight Assembly Instructions Salice's Emotion Brochure for Pacta
Videos

Salice Pacta Product Overview

Salice Pacta, the compact hinge for fall flaps

How to install Salice Pacta

Specifications

Angle:

90

Application Type:

Fall Flap Door

Limited Lifetime Warranty

In the event that any product Marathon sells is found to be defective in either workmanship or materials, such products shall be replaced by Marathon, free of charge, for as long as the original consumer purchaser owns the products.

If a product is no longer available, Marathon will replace the defective hardware with a current offering.

Not covered by our warranty:

Incorrect installation or any consequential and/or incidental damages incurred as a result of incorrect installation.

Hardware that has been exposed to excessive loads, abused, or used in any manner other than its intended purpose.

Removal of defective hardware, delivery costs, or installation of new hardware.
